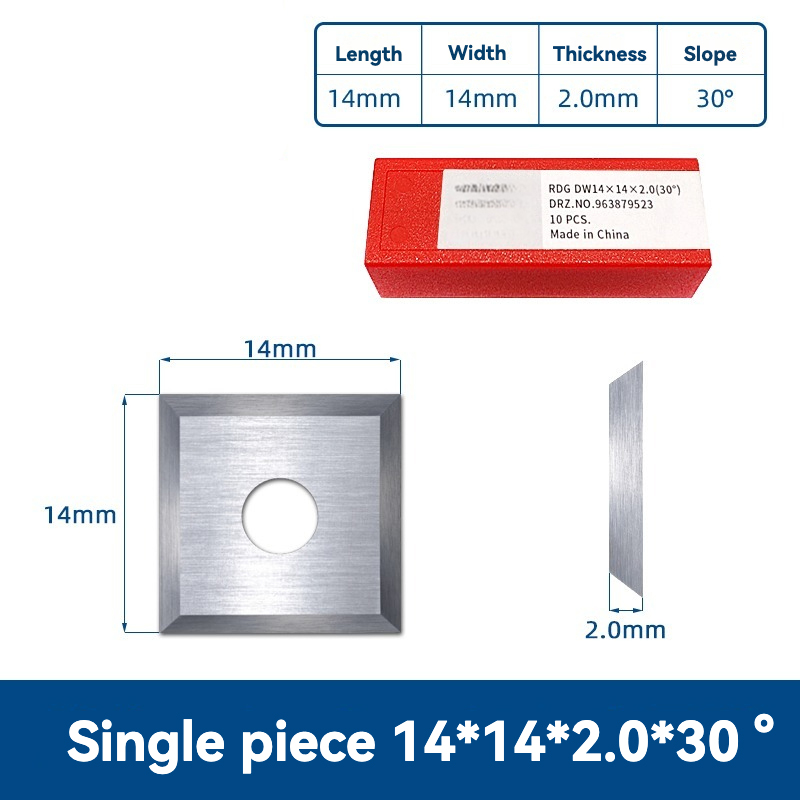

I130_01 single cutter insert drawing labeled 14 x 14 x 2.0 mm and 30-degree bevel

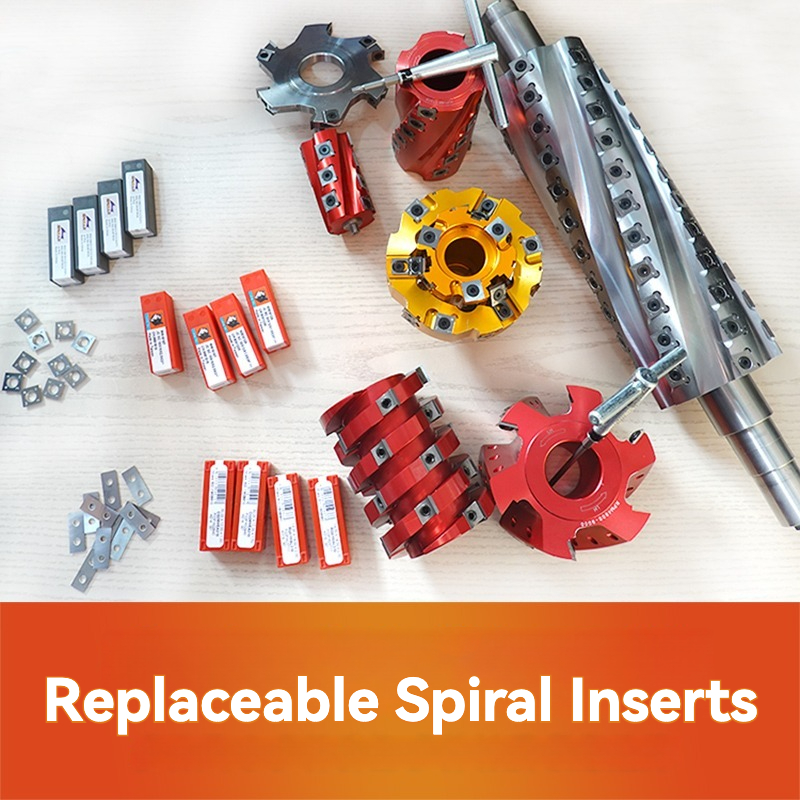

I130_01 spiral cutterheads shown with replacement insert examples

I130_01 Carbide Insert, 14 x 14 x 2.0 mm, 30-degree bevel

Name: I130_01 Carbide Insert 14 x 14 x 2.0 mm, 30-degree bevel
SKU: I130_01
Price: 4.03 USD
Availability: InStock

$4.03

I130_01 identifies one cutter insert sized 14 x 14 x 2.0 mm with a 30-degree bevel.

SKU: I130_01 Category: Helical Cutterheads & Inserts

Description
Additional information

I130_01 identifies one cutter insert. The main gallery drawing labels it 14 x 14 x 2.0 mm with 30-degree bevel. Its visible type attribute reads "Monolithic 14 x 14 x 2.0 mm, 30-degree Baoblenli". The WooCommerce record uses a simple product type and contains no selectable variation records. The product title spells the vendor name "Baolili," while its type attribute spells it "Baoblenli." Neither wording establishes a verified manufacturer or country of origin. Other gallery images show a cutterhead series and loose insert examples but do not identify a compatible model.

Specifications

Product type	Single cutter insert, as indicated by the main image
Drawing dimensions	14 x 14 x 2.0 mm
Edge geometry on drawing	30-degree bevel
Visible type attribute	Monolithic 14 x 14 x 2.0 mm, 30-degree Baoblenli
Product record	Simple item with no variation records
Machine or cutterhead model	The listing names no model

Check the square insert seat

Compare the 14 mm length and width, 2.0 mm thickness and 30-degree bevel with the cutterhead drawing. Check the mounting hole and seating face as separate measurements. The listing does not name a cutterhead model or screw standard, so matching the headline dimensions alone is not enough to confirm fit.

Before fitting the insert

Measure the insert pocket length and width.
Check the required 2.0 mm thickness and bevel direction.
Compare the mounting hole and screw with the cutterhead.
Confirm the part number before fitting it to a machine.

Listing limits

The old copy uses both single-edge and multi-edge wording and states a 20 to 30 working-day service life without test conditions. It also describes several machine types without naming a compatible cutterhead. Those claims are not treated as verified specifications. The main image uses a Baolili/Baoblenli spelling difference. Confirm the vendor designation if it matters.
