I128_01 14 x 14 x 2.0 mm Carbide Insert, 30-Degree Bevel

Name: I128_01 14 x 14 x 2.0 mm Carbide Insert, 30 Degree
SKU: I128_01
Price: 5.46 USD
Availability: InStock

$5.46

I128_01 is a listed 14 x 14 x 2.0 mm carbide insert with a 30-degree bevel.

SKU: I128_01 Category: Helical Cutterheads & Inserts

Description
Additional information

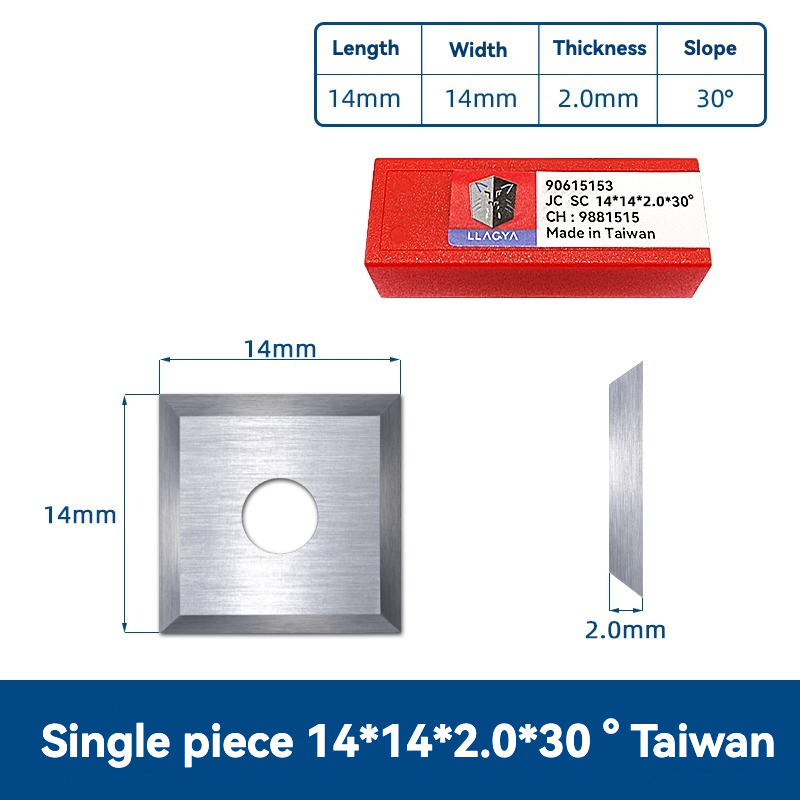

I128_01 is titled as a carbide insert measuring 14 x 14 x 2.0 mm with a 30-degree bevel and Taiwan origin. The primary drawing labels length, width, thickness and slope. The gallery also shows square inserts with a center hole and red product packaging. The page does not name the cutter body or specify the screw, hole or seat dimensions, so verify the insert against the tool drawing before purchase.

Specifications

Product type	Carbide insert (product title)
Length	14 mm (product title and drawing)
Width	14 mm (product title and drawing)
Thickness	2.0 mm (product title and drawing)
Slope	30 degrees (product title and drawing)
Origin wording	Taiwan (title and gallery label)

Check the insert and mounting dimensions

Compare the 14 x 14 x 2.0 mm body and 30-degree slope with the toolmaker drawing. The gallery shows a center hole, but the listing does not state its diameter or the required screw and seat dimensions. Confirm those details before fitting the insert.

Before fitting the insert

Compare length, width, thickness and slope with the tool drawing.
Check the center-hole and mounting-seat dimensions.
Confirm the listed Taiwan origin and the exact insert shape.
Test the fit in the tool body before machining material.

Listing limits

The page does not identify compatible cutter-body models, hole diameter, screw size, cutting grade, coating or operating parameters. The drawing labels the insert dimensions and slope only. Confirm mounting details and application before ordering.
