I128_03 15 x 15 x 2.5 mm Carbide Insert, 37-Degree Bevel

Name: I128_03 15 x 15 x 2.5 mm Carbide Insert, 37 Degree
SKU: I128_03
Price: 6.38 USD
Availability: InStock

$6.38

I128_03 is a listed 15 x 15 x 2.5 mm carbide insert with a 37-degree bevel.

SKU: I128_03 Category: Helical Cutterheads & Inserts

Description
Additional information

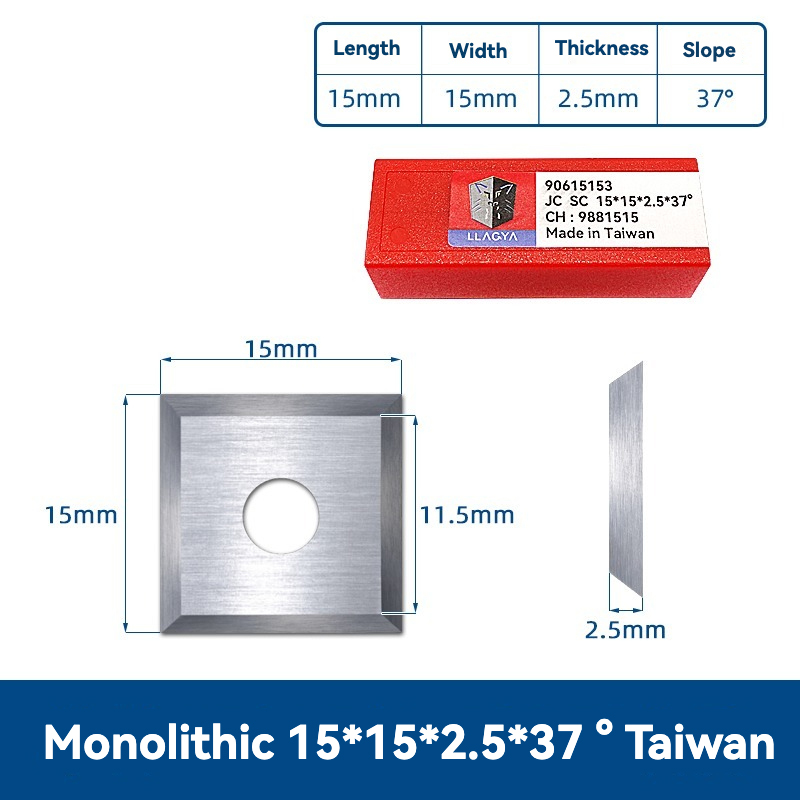

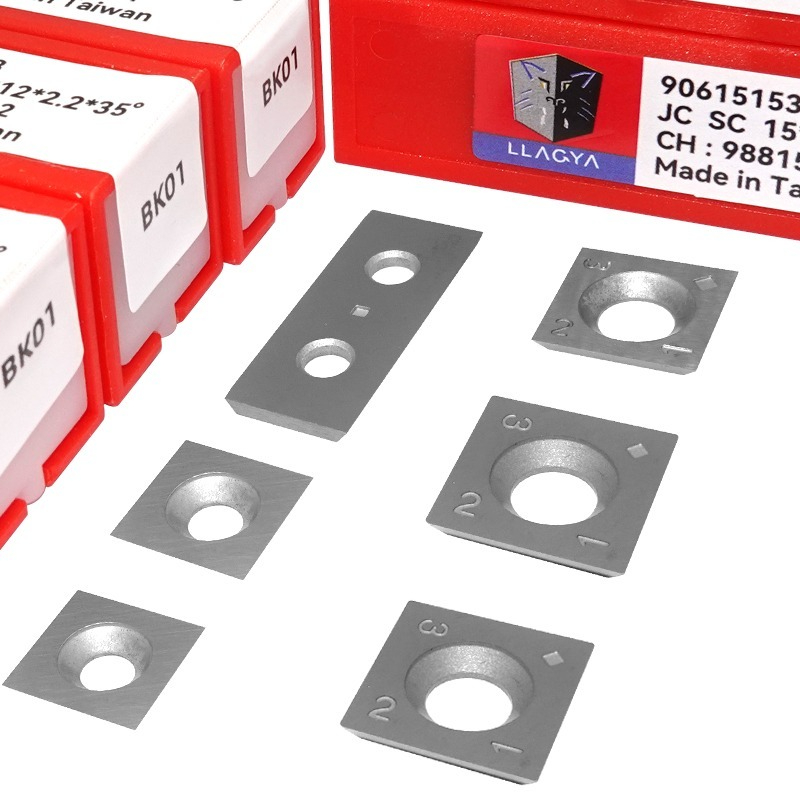

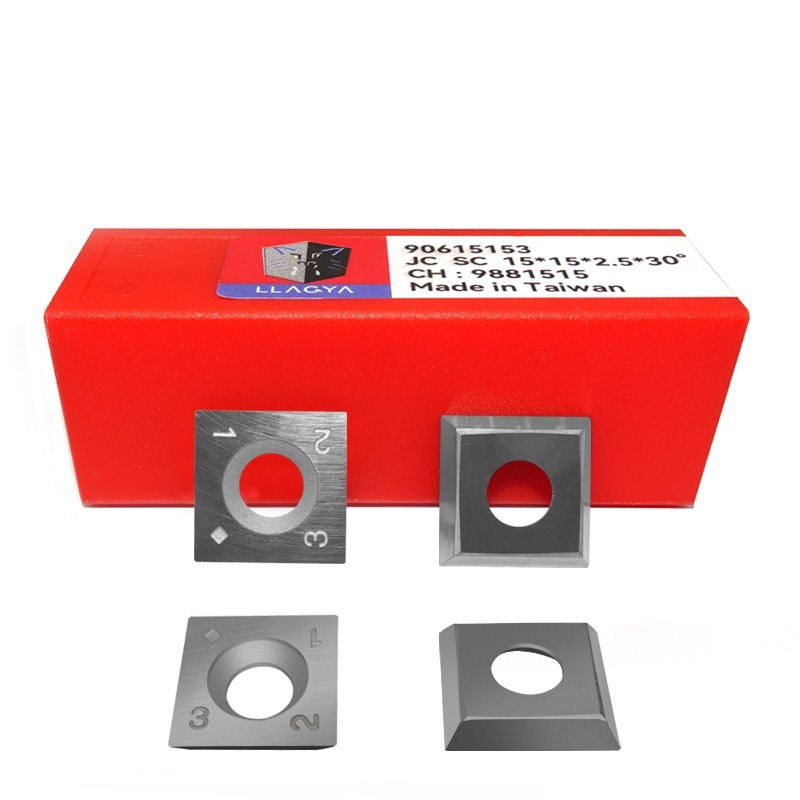

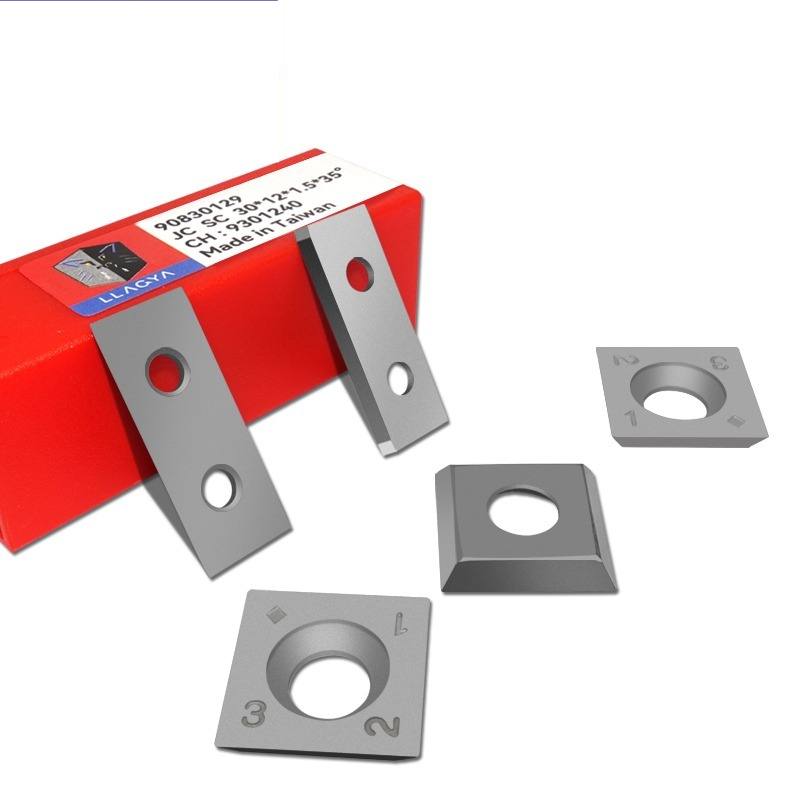

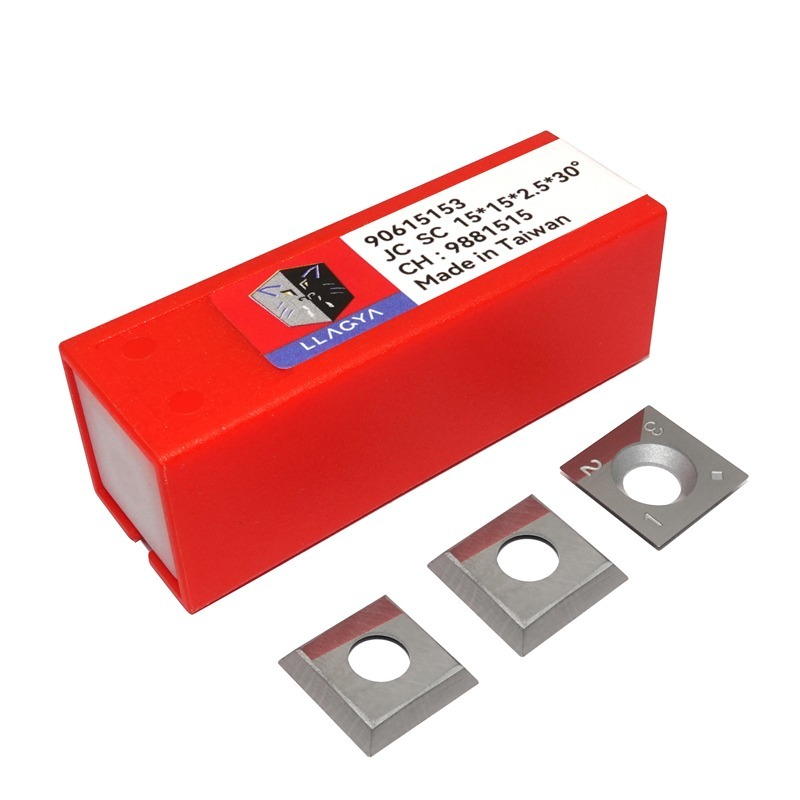

I128_03 is titled as a carbide insert measuring 15 x 15 x 2.5 mm with a 37-degree bevel and Taiwan origin. The primary drawing labels the length, width, thickness and slope. The gallery shows square inserts with a center hole and product packaging. The page does not name a compatible cutter body or specify the hole, screw or seat dimensions, so verify the insert against the target tool drawing before purchase.

Specifications

Product type	Carbide insert (product title)
Length	15 mm (product title and drawing)
Width	15 mm (product title and drawing)
Thickness	2.5 mm (product title and drawing)
Slope	37 degrees (product title and drawing)
Origin wording	Taiwan (title and gallery label)

Check the 37-degree insert fit

Compare the 15 x 15 x 2.5 mm body and 37-degree slope with the cutter-body drawing. The gallery shows a center hole, but the page does not define its diameter or the seat and fastener dimensions. Confirm those measurements before fitting the insert.

Before fitting the insert

Confirm the 15 x 15 x 2.5 mm dimensions and 37-degree slope.
Check the center-hole diameter and fastening method.
Match the insert seat to the cutter-body drawing.
Test the fit before returning the tool to service.

Listing limits

The listing does not identify compatible cutter-body models, hole diameter, screw size, material grade, coating or cutting parameters. The image labels dimensions and slope, but does not provide mounting details. Verify fit and application before ordering.
