I128_02 I128_02 carbide insert technical drawing

I128_02 square I128_02 inserts with center holes

I128_02 15 x 15 x 2.5 mm Carbide Insert, 30-Degree Bevel

Name: I128_02 15 x 15 x 2.5 mm Carbide Insert, 30 Degree
SKU: I128_02
Price: 6.38 USD
Availability: InStock

$6.38

I128_02 is a listed 15 x 15 x 2.5 mm carbide insert with a 30-degree bevel.

SKU: I128_02 Category: Helical Cutterheads & Inserts

Description
Additional information

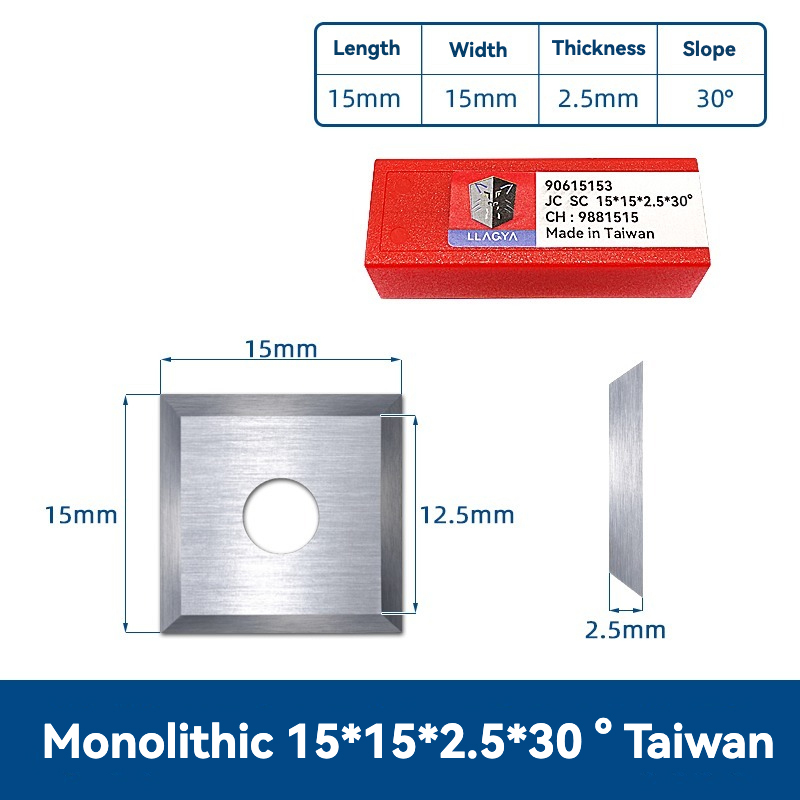

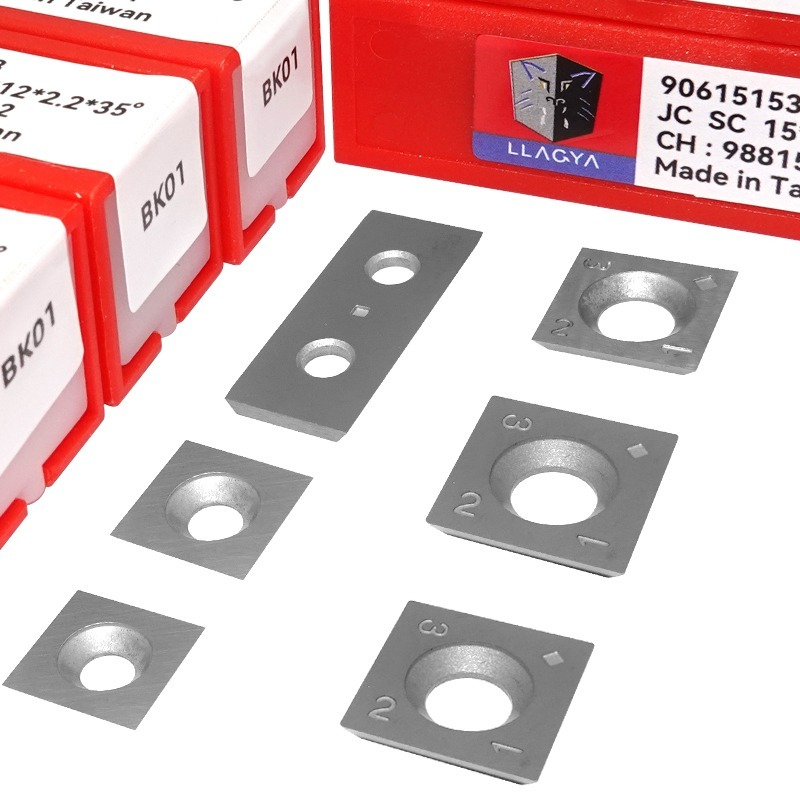

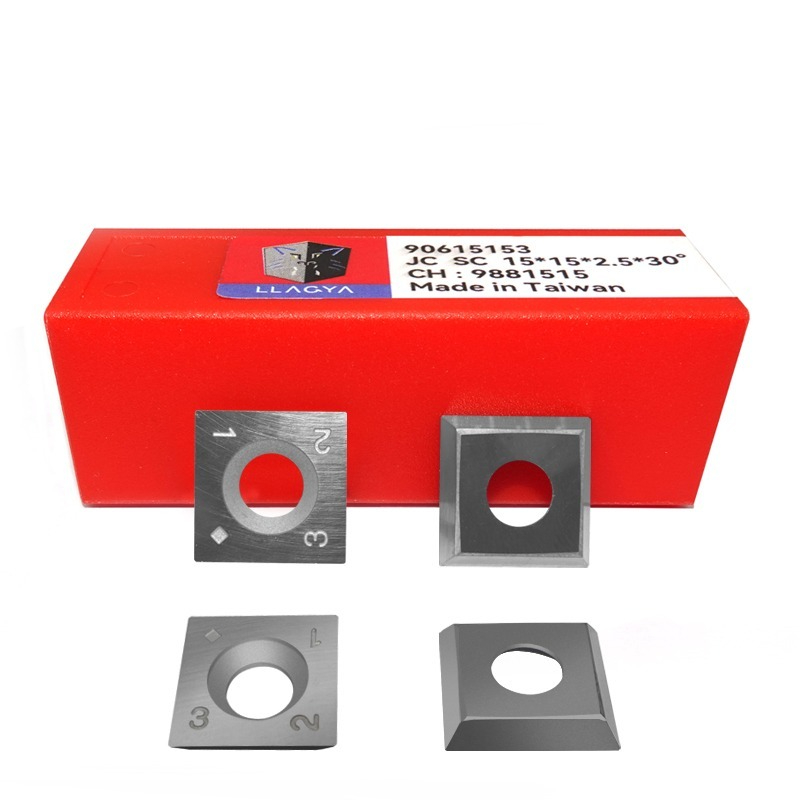

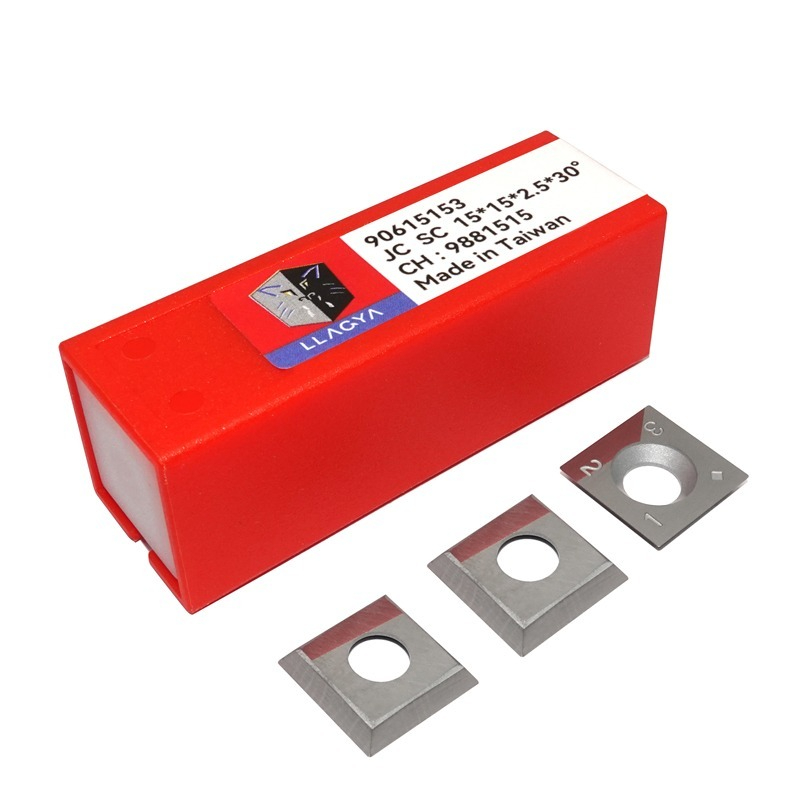

I128_02 is titled as a carbide insert measuring 15 x 15 x 2.5 mm with a 30-degree bevel and Taiwan origin. The primary drawing labels the length, width, thickness and slope. The gallery shows square inserts with a center hole and product packaging. The page does not name the compatible cutter body or state the center-hole and mounting-seat dimensions, so match the insert with the toolmaker drawing before ordering.

Specifications

Product type	Carbide insert (product title)
Length	15 mm (product title and drawing)
Width	15 mm (product title and drawing)
Thickness	2.5 mm (product title and drawing)
Slope	30 degrees (product title and drawing)
Origin wording	Taiwan (title and gallery label)

Verify the insert seat and hole

Compare the 15 x 15 x 2.5 mm body and 30-degree slope with the toolmaker drawing. A center hole is visible in the gallery, but its diameter and the fastening details are not given. Confirm the insert seat and screw dimensions for the target cutter body.

Before fitting the insert

Check the insert body dimensions and slope against the tool drawing.
Confirm the center-hole diameter and fastening method.
Verify the insert seat and cutter-body model.
Test the insert fit before machining a workpiece.

Listing limits

The page does not list a compatible cutter-body model, hole diameter, screw size, material grade, coating or operating parameters. The gallery supports the square shape and center-hole observation, but does not identify mounting dimensions. Confirm fit before purchase.
