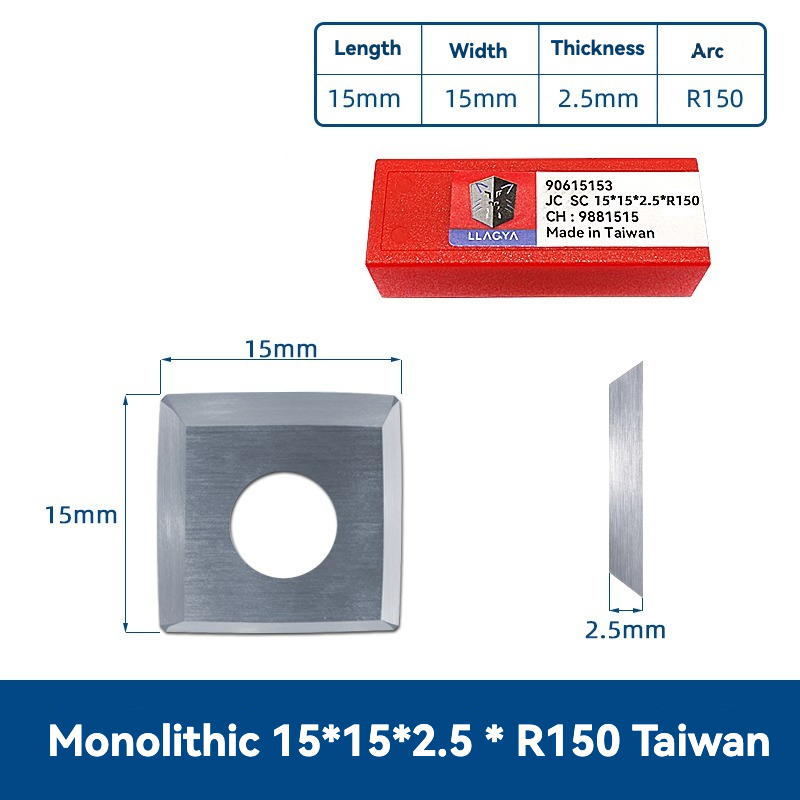

I128_06 I128_06 R150 insert dimensions and edge drawing

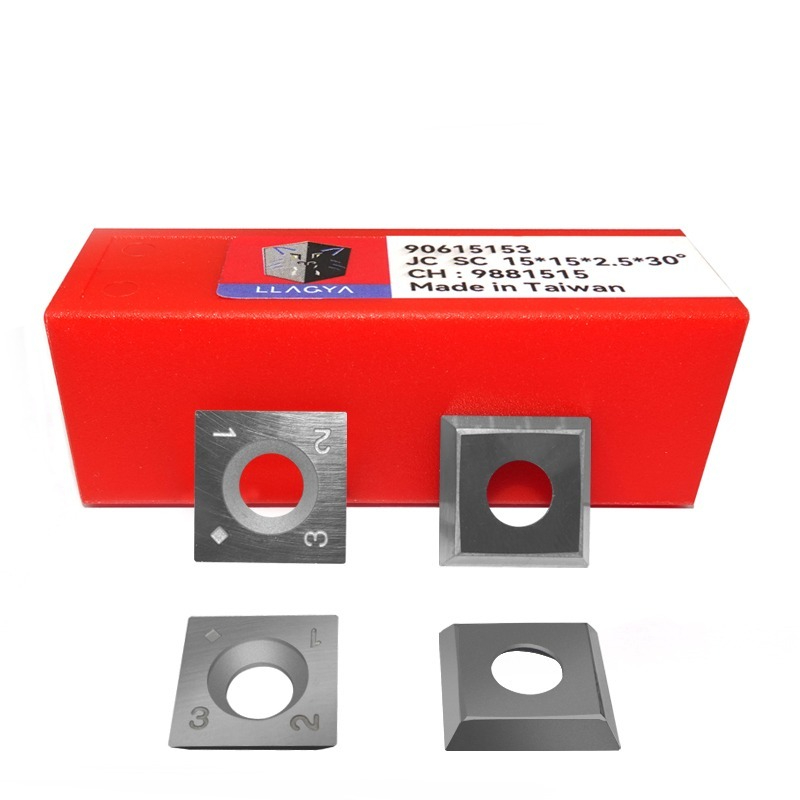

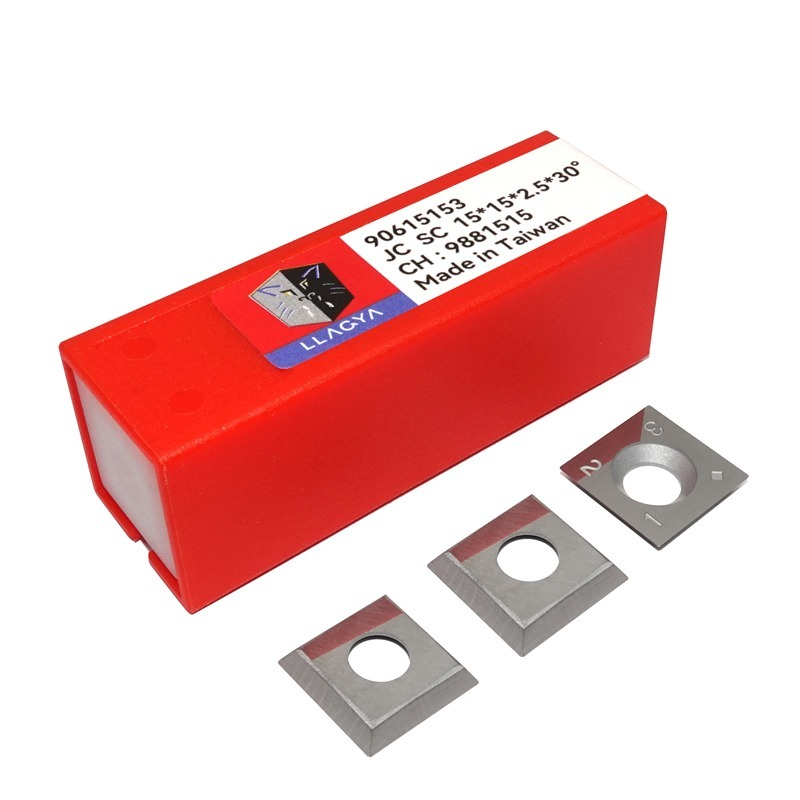

I128_06 I128_06 square inserts beside red packaging

I128_06 15 x 15 x 2.5 mm Carbide Insert, R150 Edge

Name: I128_06 R150 Carbide Insert, 15 x 15 x 2.5 mm
SKU: I128_06
Price: 6.94 USD
Availability: InStock

$6.94

I128_06 is a 15 x 15 x 2.5 mm carbide insert listed with an R150 edge profile.

SKU: I128_06 Category: Helical Cutterheads & Inserts

Description
Additional information

I128_06 is listed as a 15 x 15 x 2.5 mm carbide insert with an R150 edge label and Taiwan origin. Its drawing marks the side dimensions and thickness. The gallery also shows a square insert with a large round hole. R150 appears as a profile label, but the page does not state a unit or identify the cutter body.

Specifications

Product type	Carbide insert (product title)
Length x width x thickness	15 x 15 x 2.5 mm (source drawing)
Edge label	R150; the unit is not stated
Origin label	Taiwan (title and drawing)
Center hole	Visible in gallery; dimensions are not stated

Confirm what R150 means for the cutter

Compare the 15 x 15 mm face and 2.5 mm thickness with the target seat. Ask the tool supplier to confirm the R150 profile and its unit if it must match a drawing. The image shows a round center hole, but does not give its diameter or screw details.

Before choosing an R150 insert

Compare the face size and thickness with the tool drawing.
Confirm the R150 profile and unit with the supplier.
Check the hole, screw and insert-seat measurements.
Test the fit before you return the cutter to service.

Listing limits

The listing does not identify a cutter-body model, screw size, hole diameter, carbide grade or coating. It does not define the unit for R150. Confirm the profile and mounting measurements before ordering this insert as a replacement.
