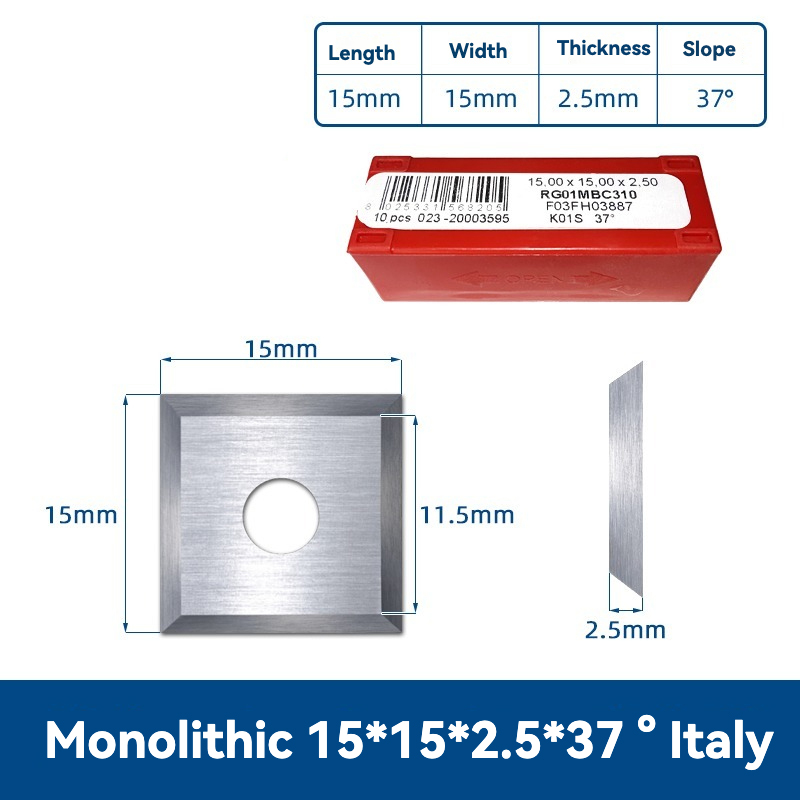

I130_15 I130_15 37-degree insert dimension drawing

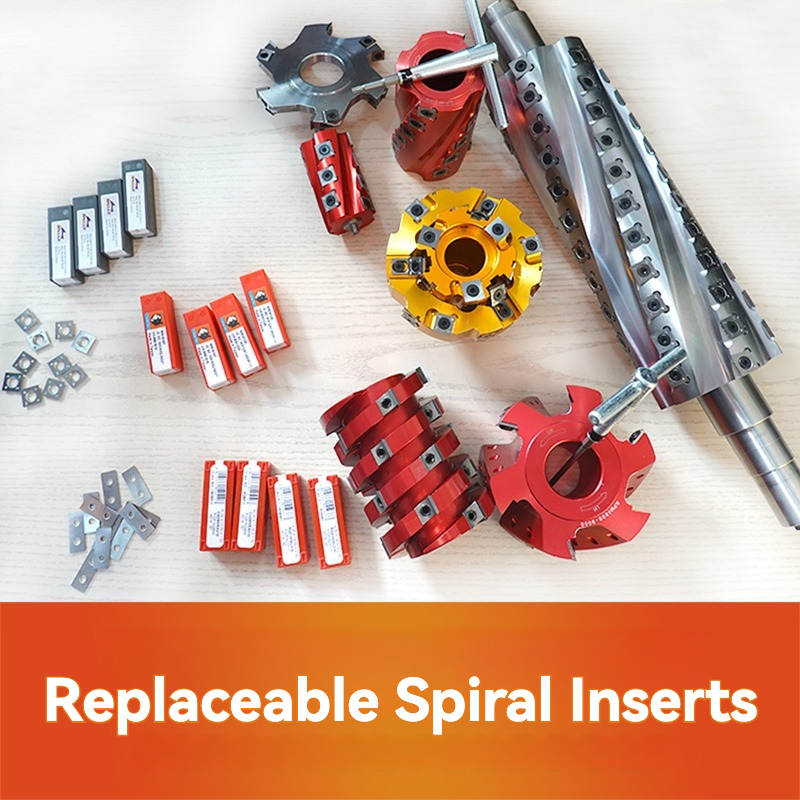

I130_15 I130_15 cutter bodies and replaceable insert parts

I130_15 15 x 15 x 2.5 mm Carbide Insert, 37-Degree Bevel

Name: I130_15 15 x 15 x 2.5 mm Carbide Insert, 37 Degree
SKU: I130_15
Price: 8.09 USD
Availability: InStock

$8.09

I130_15 is a 15 x 15 x 2.5 mm carbide insert listed with a 37-degree bevel.

SKU: I130_15 Category: Helical Cutterheads & Inserts

Description
Additional information

I130_15 is listed as a 15 x 15 x 2.5 mm carbide insert with a 37-degree bevel. The product page uses the label Italian Sharp, and the drawing labels the slope. The gallery shows a square insert with a center hole. It does not identify a compatible cutter body or define the hole and fastener dimensions.

Specifications

Product type	Carbide insert (product title)
Length x width x thickness	15 x 15 x 2.5 mm (source drawing)
Bevel	37 degrees (source drawing)
Listing label	Italian Sharp
Center hole	Visible; diameter is not stated

Verify the 37-degree insert seat

Use the face dimensions and 37-degree bevel to compare this insert with the cutter-body drawing. The product name also uses the phrase Italian Sharp, but the page does not explain that label. Confirm the hole, screw and seat before ordering it for a specific tool.

Before ordering this insert

Compare the 15 x 15 x 2.5 mm dimensions with the insert pocket.
Confirm that the body requires a 37-degree bevel.
Ask the tool supplier to explain the Italian Sharp label if it matters.
Check the hole and fastener fit before installation.

Listing limits

The listing does not state the center-hole diameter, screw size, compatible cutter body, carbide grade or coating. It does not define the Italian Sharp phrase. Use the drawing for the dimensions and verify the mounting pattern separately.
