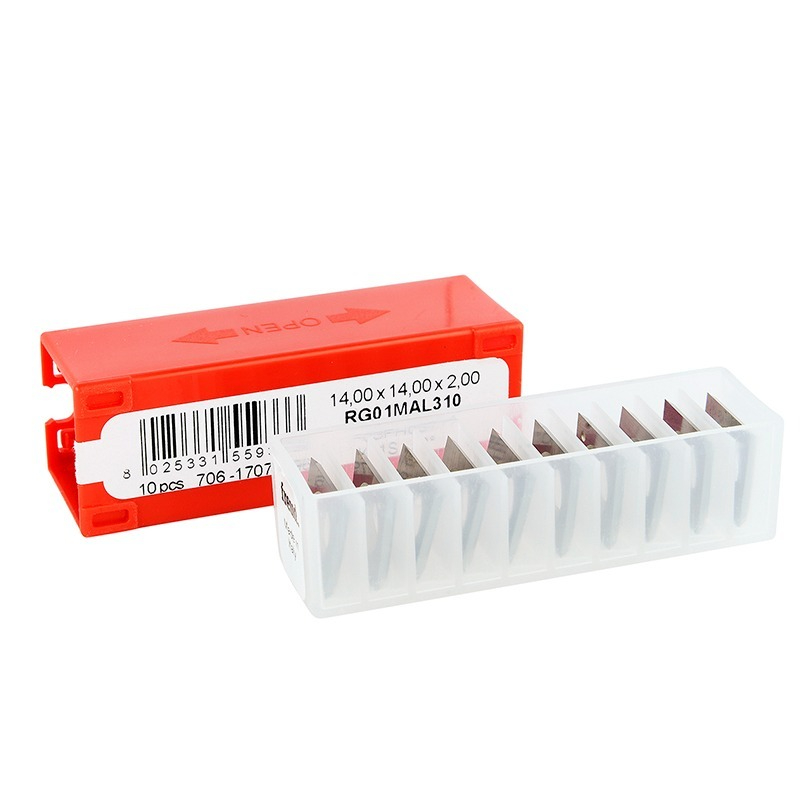

I130_02 red insert box beside a row of loose cutter blades
I130_02 single cutter insert drawing labeled 15 x 15 x 2.5 mm and 30-degree bevel
I130_02 spiral cutterheads shown with replacement insert examples
I130_02 loose silver cutter inserts in square and rectangular shapes
I130_02 red insert box beside a row of loose cutter blades

I130_02 Carbide Insert, 15 x 15 x 2.5 mm, 30-degree bevel

$4.49

I130_02 identifies one cutter insert sized 15 x 15 x 2.5 mm with a 30-degree bevel.

SKU: I130_02 Category:

I130_02 identifies one cutter insert. The main gallery drawing labels it 15 x 15 x 2.5 mm with 30-degree bevel. Its visible type attribute reads "Monolithic 15 x 15 x 2.5 mm, 30-degree blade". The WooCommerce record uses a simple product type and contains no selectable variation records. The product title and type attribute agree on the 15 x 15 x 2.5 mm, 30-degree format. The image series does not provide a manufacturer or cutterhead part number. Other gallery images show a cutterhead series and loose insert examples but do not identify a compatible model.

Specifications

Product typeSingle cutter insert, as indicated by the main image
Drawing dimensions15 x 15 x 2.5 mm
Edge geometry on drawing30-degree bevel
Visible type attributeMonolithic 15 x 15 x 2.5 mm, 30-degree blade
Product recordSimple item with no variation records
Machine or cutterhead modelThe listing names no model

Match the 15 mm seat dimensions

The main drawing labels a 15 x 15 mm face, 2.5 mm thickness and 30-degree edge. Compare all three values with the existing cutterhead pocket, then verify the hole and screw position. The product page lists no cutterhead model, so the geometry should be checked against the machine drawing.

Before fitting the insert

  1. Measure the pocket length and width.
  2. Confirm 2.5 mm thickness and the 30-degree edge.
  3. Check the hole location and seating surface.
  4. Confirm the insert part number with the cutterhead maker.

Listing limits

The original description makes life and cutting-performance claims but provides no operating record or test conditions. It also contains conflicting single-edge and multi-edge wording. The page does not name a grade, screw specification or compatible machine model. The drawing agrees with the 15 x 15 x 2.5 mm, 30-degree title format.

Product gallery

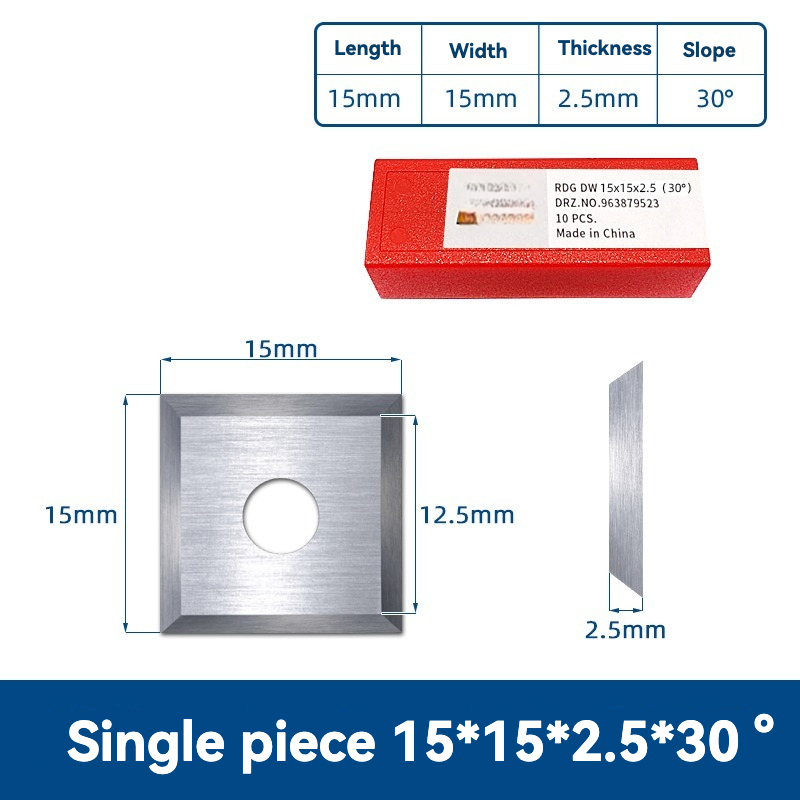

I130_02 single cutter insert drawing labeled 15 x 15 x 2.5 mm and 30-degree bevel
I130_02 insert dimension drawingThe main image labels 15 x 15 x 2.5 mm and the 30-degree bevel geometry.

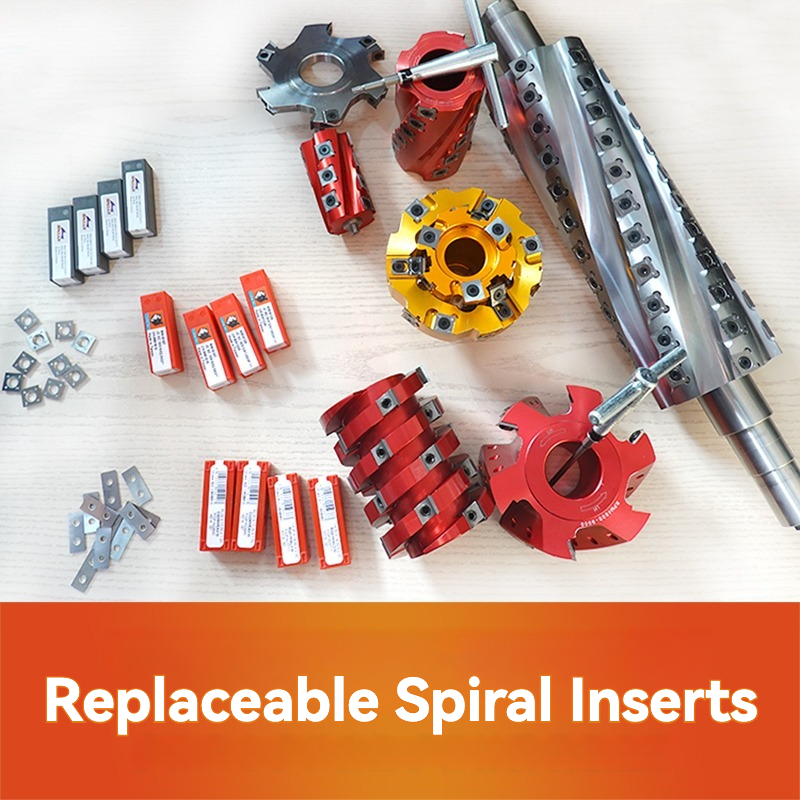

I130_02 spiral cutterheads shown with replacement insert examples
I130_02 cutterhead-series illustrationThis series image shows spiral cutterheads and replacement-insert examples. It does not list compatible machines.

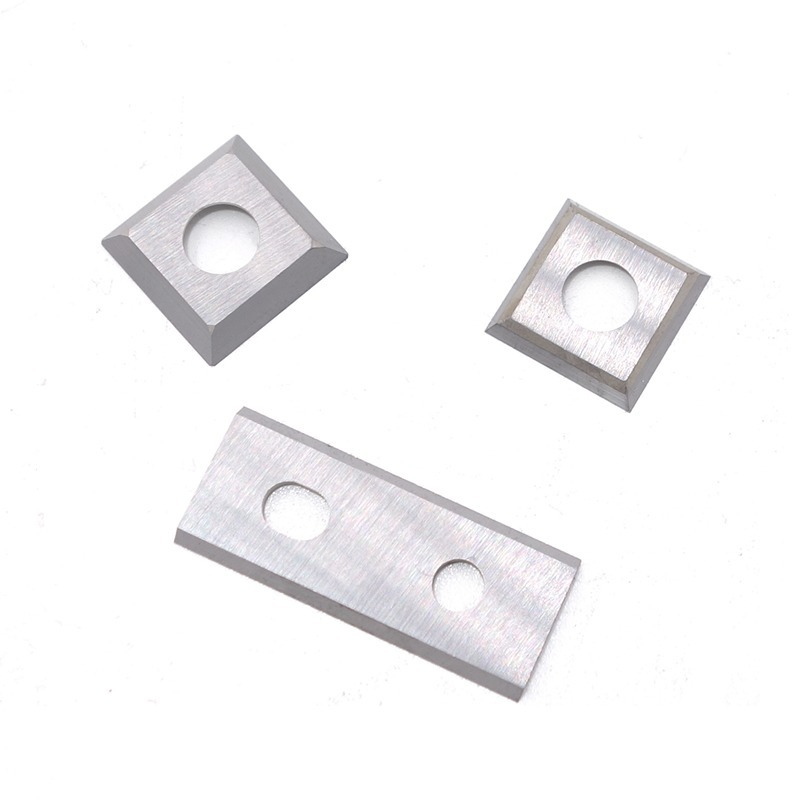

I130_02 loose silver cutter inserts in square and rectangular shapes
I130_02 loose insert examplesThe shared loose-insert image shows example shapes, not a labeled I130_02 part list.

Related category: Cutterheads and Blades.

type

Monolithic 15X15X2. 5X30 ° Blade
