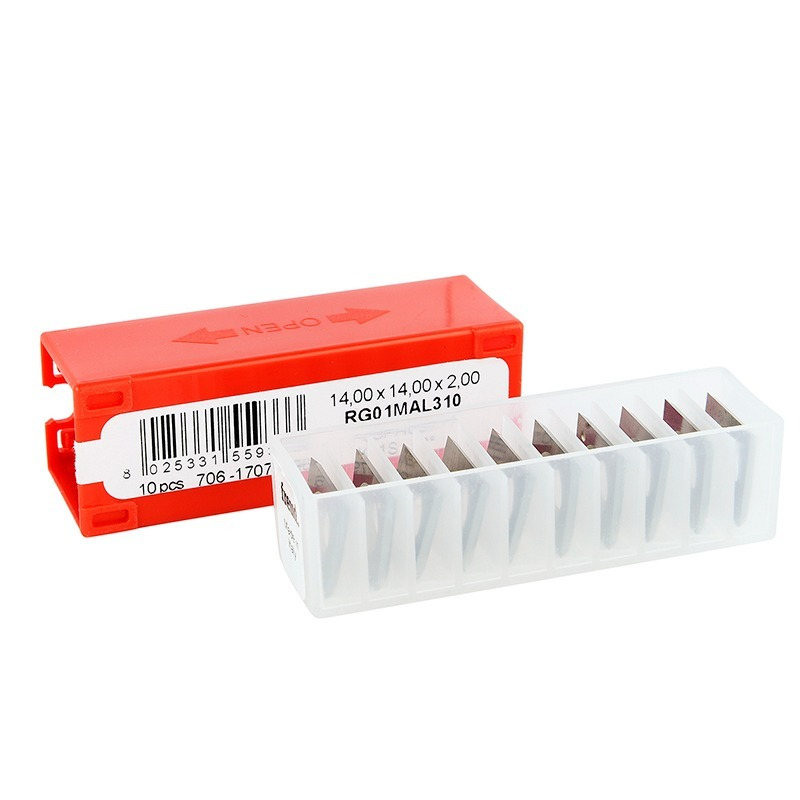

I130_04 red insert box beside a row of loose cutter blades
I130_04 single cutter insert drawing labeled 30 x 12 x 1.5 mm and 35-degree bevel
I130_04 spiral cutterheads shown with replacement insert examples
I130_04 loose silver cutter inserts in square and rectangular shapes
I130_04 red insert box beside a row of loose cutter blades

I130_04 Carbide Insert, 30 x 12 x 1.5 mm, 35-degree bevel

$5.77

I130_04 identifies one cutter insert sized 30 x 12 x 1.5 mm with a 35-degree bevel.

SKU: I130_04 Category:

I130_04 identifies one cutter insert. The main gallery drawing labels it 30 x 12 x 1.5 mm with 35-degree bevel. Its visible type attribute reads "Monolithic 30 x 12 x 1.5 mm, 35-degree blade". The WooCommerce record uses a simple product type and contains no selectable variation records. The main drawing shows a 30 x 12 x 1.5 mm blade and labels a 35-degree slope. The short description adds a minus sign to the angle, so handedness is not established. Other gallery images show a cutterhead series and loose insert examples but do not identify a compatible model.

Specifications

Product typeSingle cutter insert, as indicated by the main image
Drawing dimensions30 x 12 x 1.5 mm
Edge geometry on drawing35-degree bevel
Visible type attributeMonolithic 30 x 12 x 1.5 mm, 35-degree blade
Product recordSimple item with no variation records
Machine or cutterhead modelThe listing names no model

Check the long blade and two-hole layout

This drawing shows a rectangular 30 x 12 mm blade, 1.5 mm thickness and two mounting holes. The drawing labels a 35-degree slope, while the short description writes -35 degrees. Confirm the bevel direction and the two-hole spacing with the cutterhead drawing before ordering.

Before fitting the insert

  1. Measure the 30 x 12 mm blade seat.
  2. Check the 1.5 mm thickness and two-hole spacing.
  3. Confirm whether the required edge is +35 or -35 degrees.
  4. Match the screw positions and seating face before installation.

Listing limits

The source materials disagree about the sign of the 35-degree angle. The older generic copy also gives unsupported service-life and cutting claims without test conditions. The page does not identify a cutterhead model, screw size or blade-hand convention. The main image shows a two-hole rectangular blade and a 35-degree label.

Product gallery

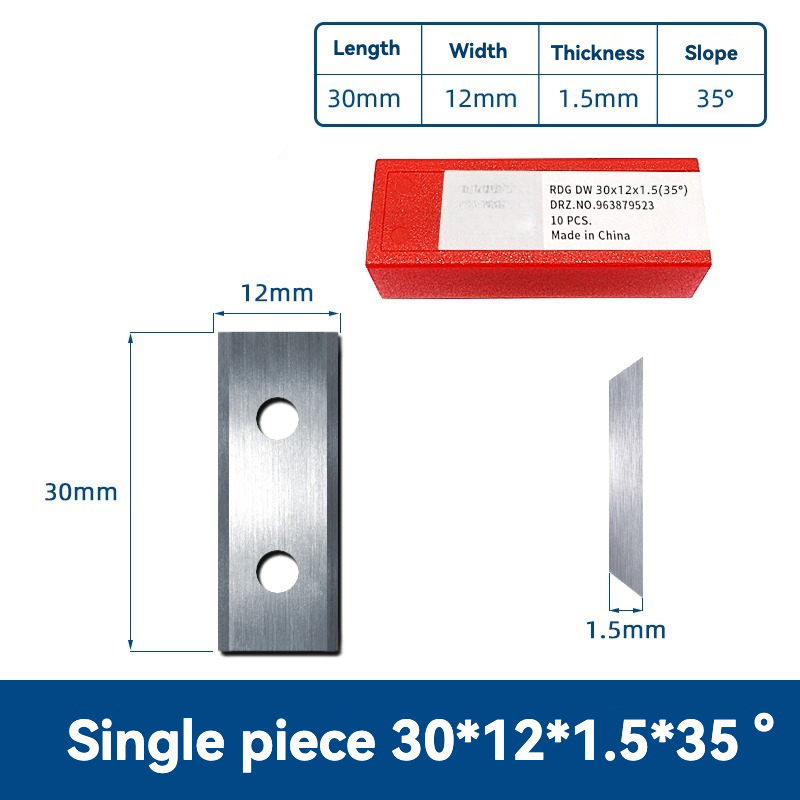

I130_04 single cutter insert drawing labeled 30 x 12 x 1.5 mm and 35-degree bevel
I130_04 insert dimension drawingThe main image labels 30 x 12 x 1.5 mm and the 35-degree bevel geometry.

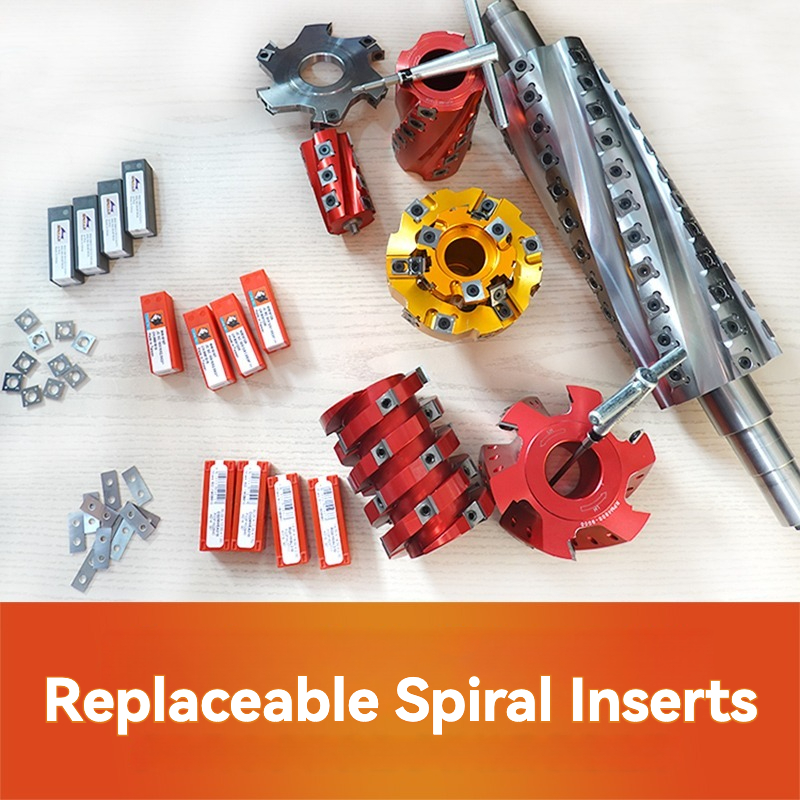

I130_04 spiral cutterheads shown with replacement insert examples
I130_04 cutterhead-series illustrationThis series image shows spiral cutterheads and replacement-insert examples. It does not list compatible machines.

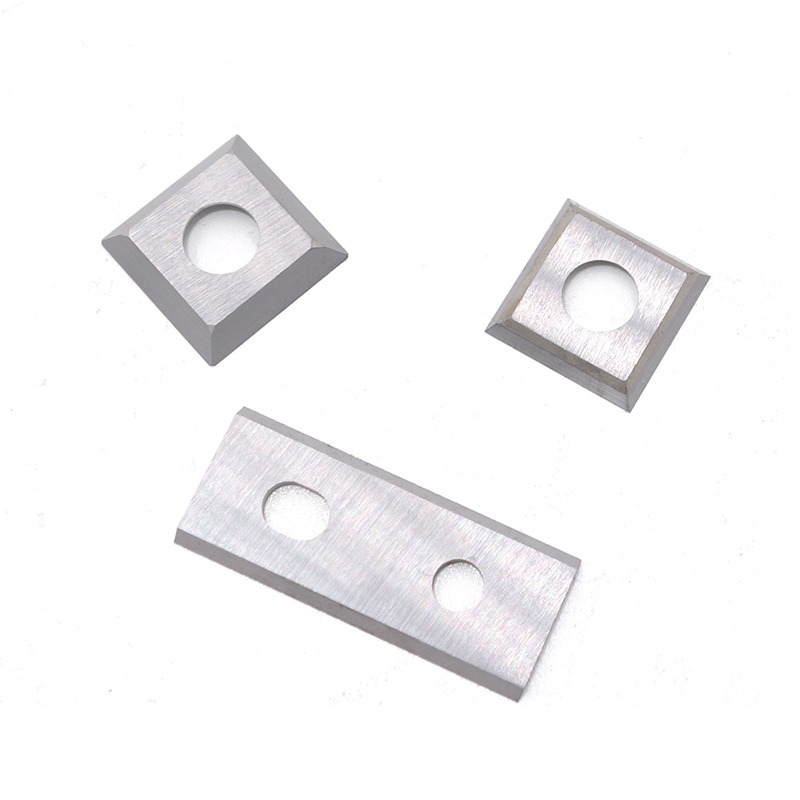

I130_04 loose silver cutter inserts in square and rectangular shapes
I130_04 loose insert examplesThe shared loose-blade image is not labeled with a hole spacing for I130_04.

Related category: Cutterheads and Blades.

type

Monolithic 30X12X1. 5-X35 ° Blade
