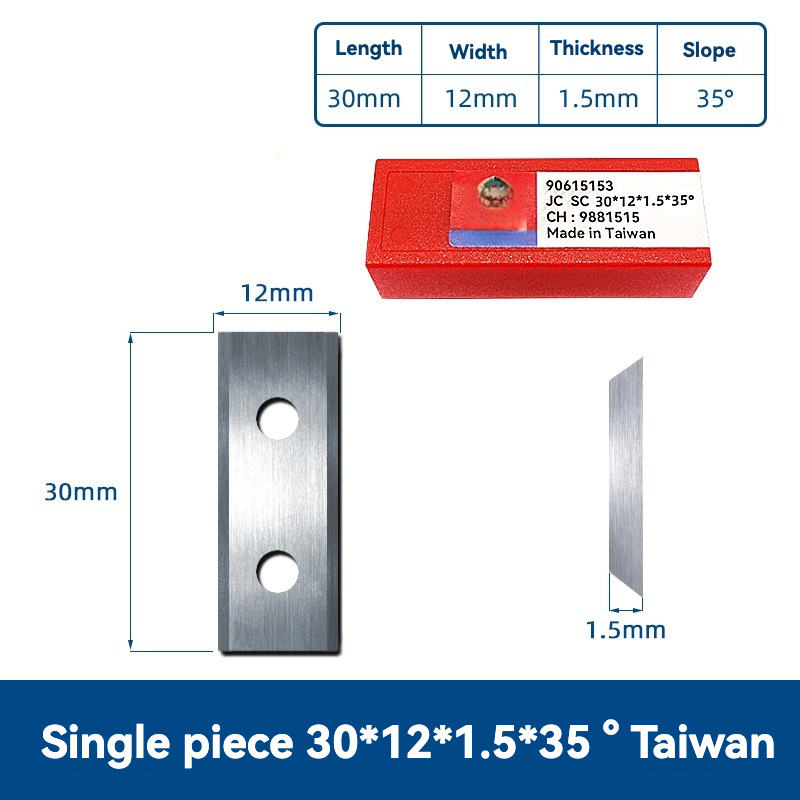

I130_10 single cutter insert drawing labeled 30 x 12 x 1.5 mm and 35-degree bevel

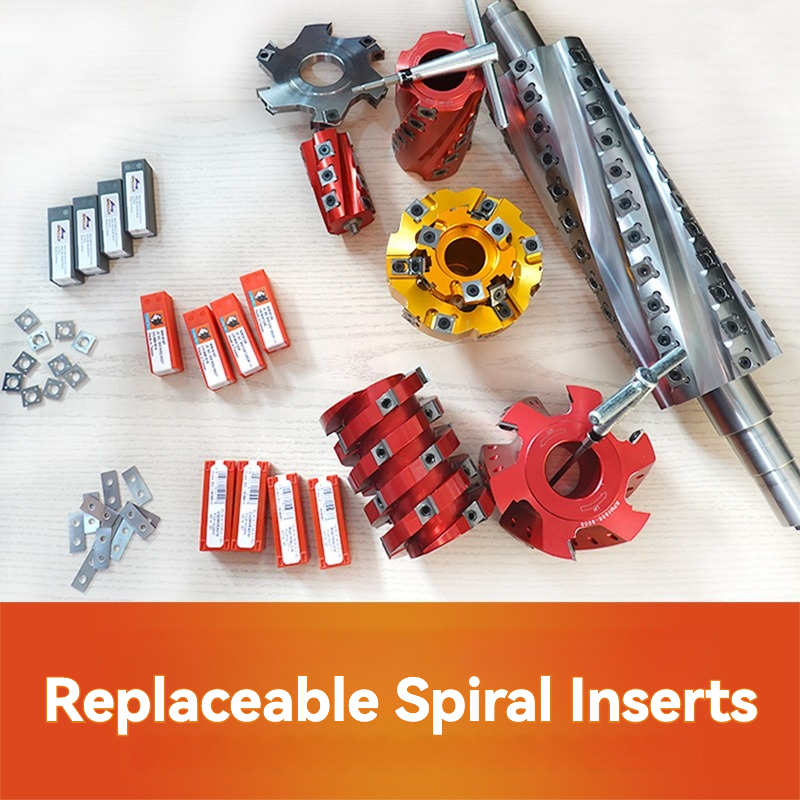

I130_10 spiral cutterheads shown with replacement insert examples

I130_10 Carbide Insert, 30 x 12 x 1.5 mm, 35-degree bevel

Name: I130_10 Carbide Insert 30 x 12 x 1.5 mm, 35-degree bevel
SKU: I130_10
Price: 7.86 USD
Availability: InStock

$7.86

I130_10 identifies one cutter insert sized 30 x 12 x 1.5 mm with a 35-degree bevel.

SKU: I130_10 Category: Disposable Spiral Blade

Description
Additional information

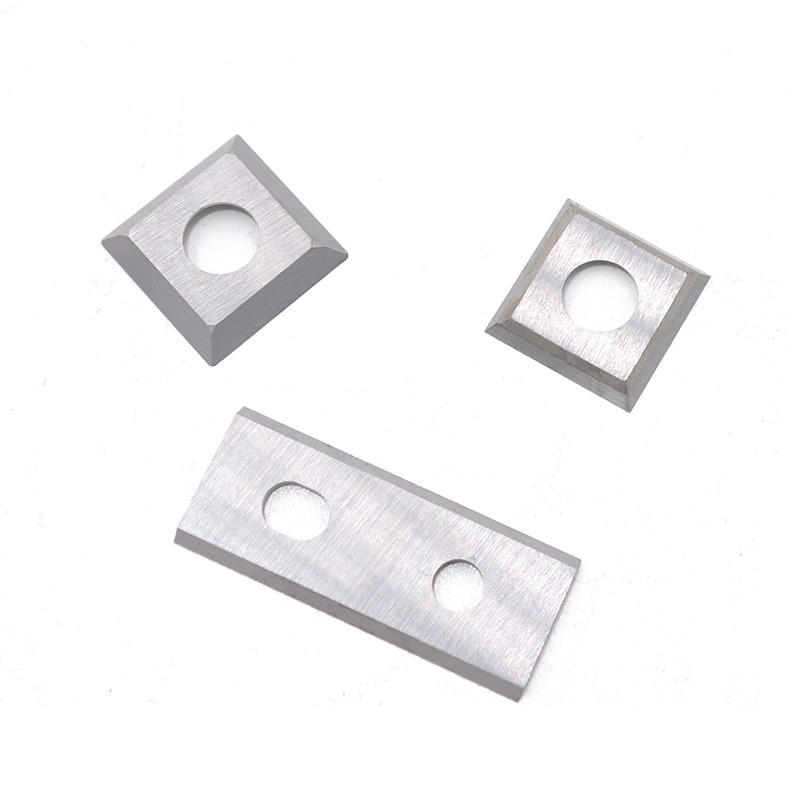

I130_10 identifies one cutter insert. The main gallery drawing labels it 30 x 12 x 1.5 mm with 35-degree bevel. Its visible type attribute reads "Monolithic 30 x 12 x 1.5 mm, 35-degree Taiwan". The WooCommerce record uses a simple product type and contains no selectable variation records. The drawing shows a 30 x 12 x 1.5 mm blade with a 35-degree label and Taiwan wording. The short description uses -35 degrees, so the edge direction needs confirmation. Other gallery images show a cutterhead series and loose insert examples but do not identify a compatible model.

Specifications

Product type	Single cutter insert, as indicated by the main image
Drawing dimensions	30 x 12 x 1.5 mm
Edge geometry on drawing	35-degree bevel
Visible type attribute	Monolithic 30 x 12 x 1.5 mm, 35-degree Taiwan
Product record	Simple item with no variation records
Machine or cutterhead model	The listing names no model

Match the rectangular blade and screw spacing

The drawing shows a 30 x 12 mm rectangular blade, 1.5 mm thickness and two mounting holes. It labels a 35-degree slope and includes Taiwan wording. The short description adds a minus sign. Confirm the bevel direction and hole spacing with the cutterhead drawing before ordering.

Before fitting the insert

Measure the 30 x 12 mm pocket.
Check 1.5 mm thickness and both screw-hole positions.
Confirm whether the required edge is +35 or -35 degrees.
Verify the part code and seating face with the machine maker.

Listing limits

The title and drawing show 35 degrees, while the short description writes -35 degrees. The Taiwan label is not independently documented. The old generic copy also claims service life and performance without test conditions. No machine model or screw standard appears in the listing. The main drawing shows two mounting holes and a 35-degree label.
