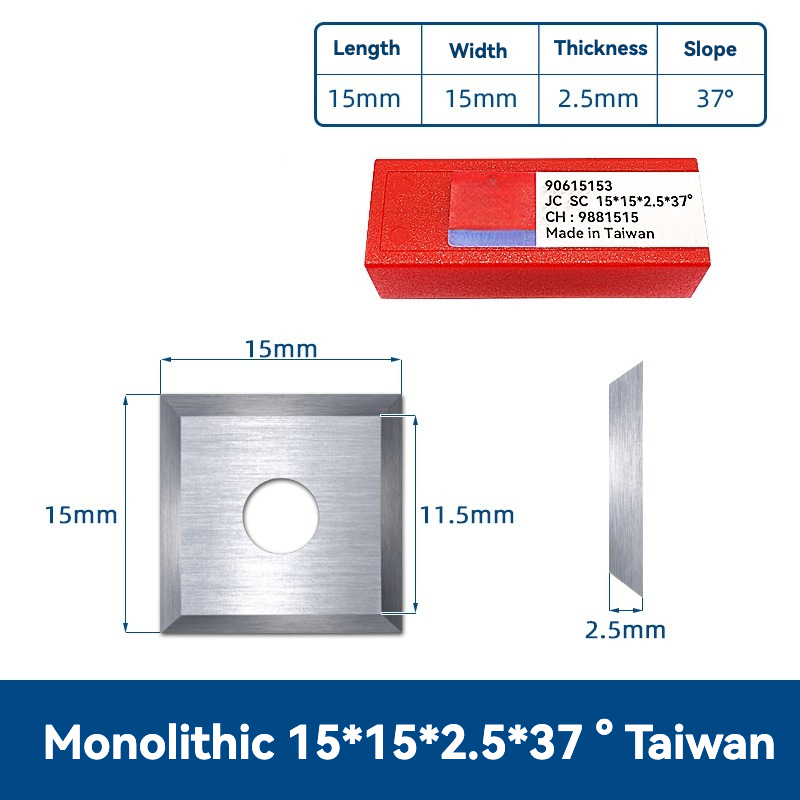

I130_09 single cutter insert drawing labeled 15 x 15 x 2.5 mm and 37-degree bevel

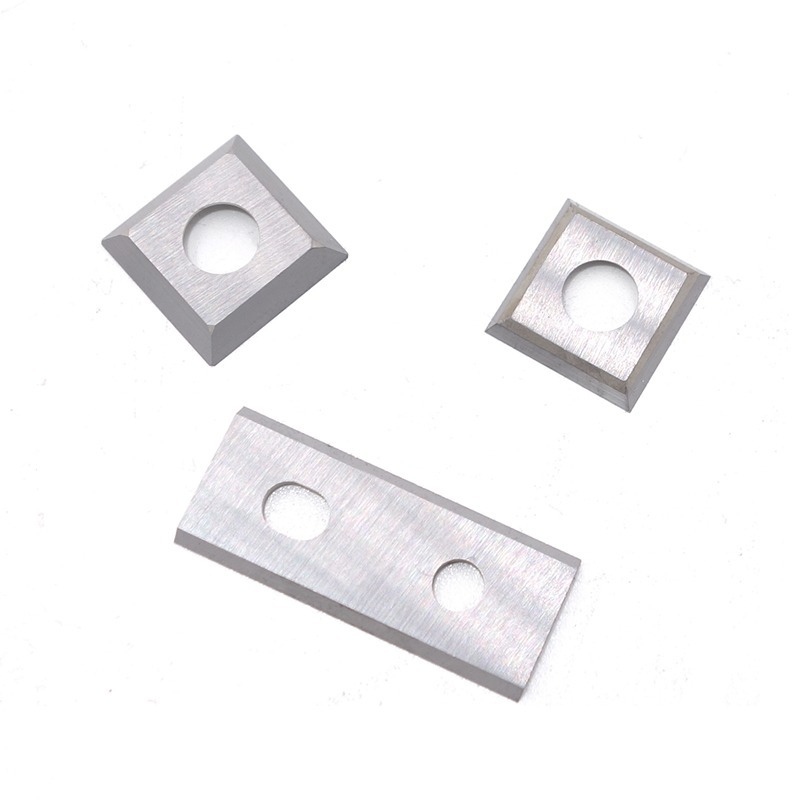

I130_09 spiral cutterheads shown with replacement insert examples

I130_09 Carbide Insert, 15 x 15 x 2.5 mm, 37-degree bevel

Name: I130_09 Carbide Insert 15 x 15 x 2.5 mm, 37-degree bevel
SKU: I130_09
Price: 6.38 USD
Availability: InStock

$6.38

I130_09 identifies one cutter insert sized 15 x 15 x 2.5 mm with a 37-degree bevel.

SKU: I130_09 Category: Disposable Spiral Blade

Description
Additional information

I130_09 identifies one cutter insert. The main gallery drawing labels it 15 x 15 x 2.5 mm with 37-degree bevel. Its visible type attribute reads "Monolithic 15 x 15 x 2.5 mm, 37-degree Taiwan". The WooCommerce record uses a simple product type and contains no selectable variation records. The title and image label a Taiwan-marked 15 x 15 x 2.5 mm insert with a 37-degree edge. The product page does not link the insert to a specific cutterhead model. Other gallery images show a cutterhead series and loose insert examples but do not identify a compatible model.

Specifications

Product type	Single cutter insert, as indicated by the main image
Drawing dimensions	15 x 15 x 2.5 mm
Edge geometry on drawing	37-degree bevel
Visible type attribute	Monolithic 15 x 15 x 2.5 mm, 37-degree Taiwan
Product record	Simple item with no variation records
Machine or cutterhead model	The listing names no model

Check the 37-degree edge and side height

The main drawing labels a 15 x 15 mm face, 2.5 mm thickness and a 37-degree edge. It also shows an edge-height example. Compare these details with the cutterhead pocket and confirm how the height is measured. The page does not specify bevel handedness or a machine model.

Before fitting the insert

Measure the square pocket and thickness.
Confirm the 37-degree bevel direction.
Ask how the drawing measures edge height.
Check the screw seat and part code against the cutterhead.

Listing limits

The Taiwan mark is a source label, not independent origin evidence. The old description makes a service-life claim and conflicts about single-edge versus multi-edge cutting without test details. It does not state an insert grade, fastener standard or compatible cutterhead. The dimension drawing labels the 37-degree slope and includes a side-height example.
