I130_07 Carbide Insert, 14 x 14 x 2.0 mm, 30-degree bevel

$5.46

I130_07 identifies one cutter insert sized 14 x 14 x 2.0 mm with a 30-degree bevel.

SKU: I130_07 Category:

I130_07 identifies one cutter insert. The main gallery drawing labels it 14 x 14 x 2.0 mm with 30-degree bevel. Its visible type attribute reads "Monolithic 14 x 14 x 2.0 mm, 30-degree Taiwan". The WooCommerce record uses a simple product type and contains no selectable variation records. The product title and dimension image both include a Taiwan label for this size. The origin label is a listing claim and is not independently verified by the gallery. Other gallery images show a cutterhead series and loose insert examples but do not identify a compatible model.

Specifications

Product typeSingle cutter insert, as indicated by the main image
Drawing dimensions14 x 14 x 2.0 mm
Edge geometry on drawing30-degree bevel
Visible type attributeMonolithic 14 x 14 x 2.0 mm, 30-degree Taiwan
Product recordSimple item with no variation records
Machine or cutterhead modelThe listing names no model

Compare the Taiwan-labeled drawing with the seat

The main image labels a 14 x 14 x 2.0 mm insert with a 30-degree edge and includes a Taiwan mark. Compare the dimensions and bevel direction with the existing cutterhead pocket. The origin wording does not provide a cutterhead model or prove that the insert matches a particular machine.

Before fitting the insert

  1. Measure the pocket length, width and depth.
  2. Confirm 2.0 mm thickness and the 30-degree edge.
  3. Check the hole and screw-seat dimensions.
  4. Verify the replacement part number with the machine maker.

Listing limits

The title and image repeat the Taiwan wording, but the page gives no independent origin documentation. The old description makes untested life and performance claims and conflicts about edge count. Machine compatibility, insert grade and fastener details are not stated. The main image labels the dimensions and Taiwan wording. Verify origin separately.

Product gallery

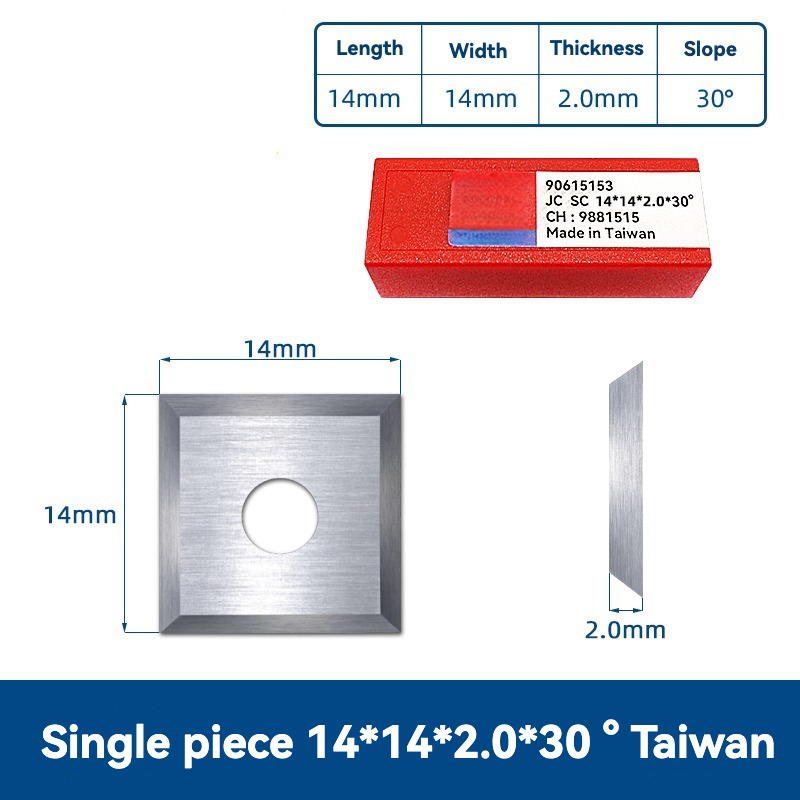

I130_07 single cutter insert drawing labeled 14 x 14 x 2.0 mm and 30-degree bevel
I130_07 insert dimension drawingThe main image labels 14 x 14 x 2.0 mm and the 30-degree bevel geometry.

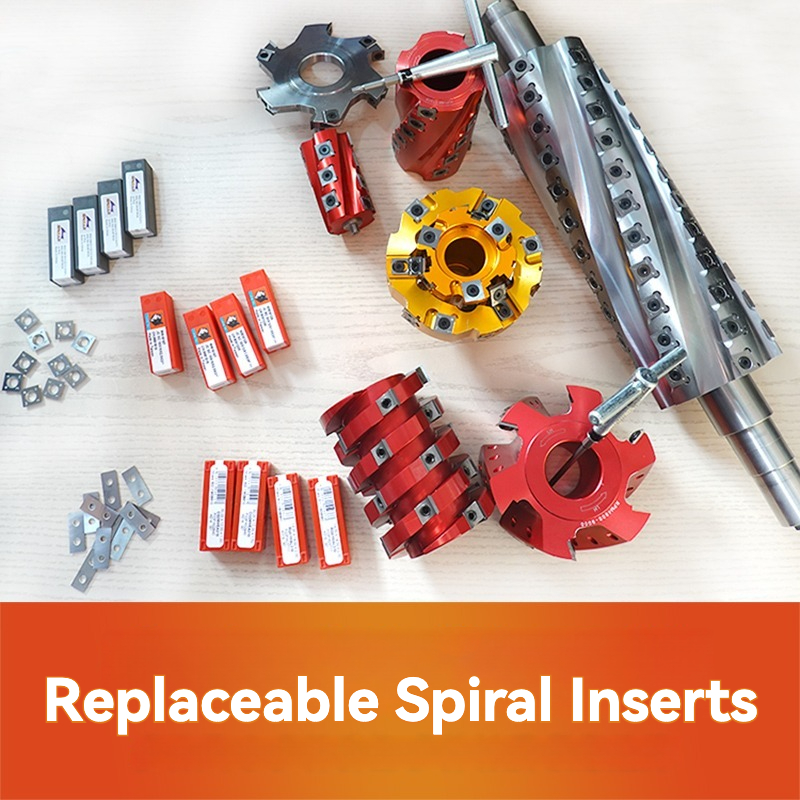

I130_07 spiral cutterheads shown with replacement insert examples
I130_07 cutterhead-series illustrationThis series image shows spiral cutterheads and replacement-insert examples. It does not list compatible machines.

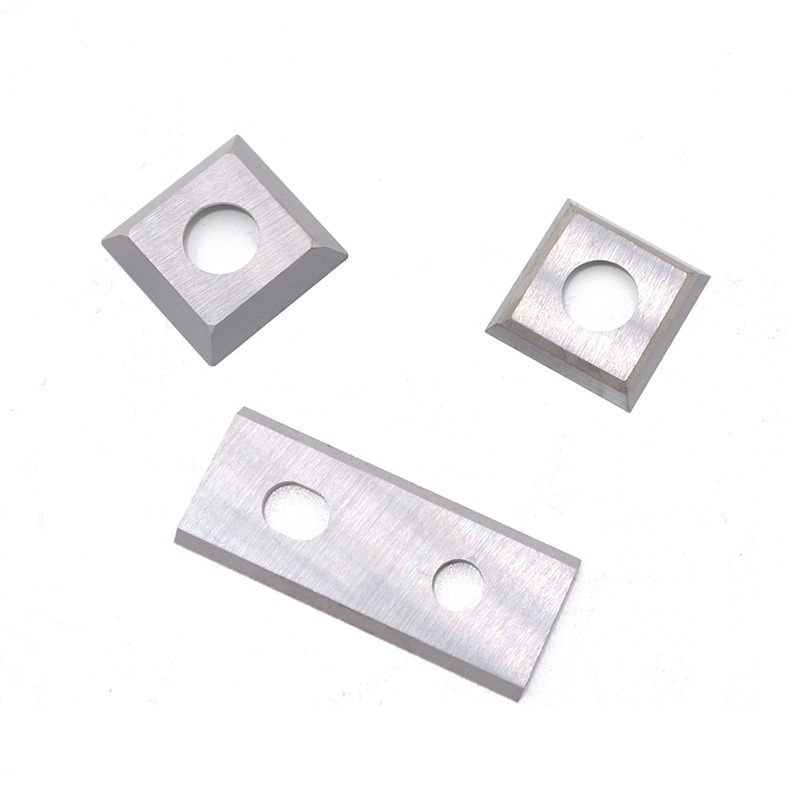

I130_07 loose silver cutter inserts in square and rectangular shapes
I130_07 loose insert examplesThe series illustration shows cutterheads and loose blades but does not verify origin or machine fit.

Related category: Cutterheads and Blades.

type

Monolithic 14X14X2. 0X30 °-Taiwan
