I130_14 Carbide Insert, 15 x 15 x 2.5 mm, 30-degree edge

$8.09

I130_14 identifies one 15 x 15 x 2.5 mm cutter insert with a 30-degree edge.

SKU: I130_14 Category:

I130_14 is a single cutter insert. Its main drawing labels 15 x 15 x 2.5 mm and 30-degree edge. The visible type attribute reads "Monolithic 15X15X2. 5X30 ° Italian Sharp Invincible". The title says Italian Sharp and Invincible. The drawing says Italy. These phrases do not verify origin or performance. The WooCommerce record has no selectable variations. The shared gallery also shows cutterhead and insert examples, but it does not name a compatible machine.

Specifications

Product typeSingle cutter insert
Drawing dimensions15 x 15 x 2.5 mm
Edge geometry30-degree edge
Type attributeMonolithic 15X15X2. 5X30 ° Italian Sharp Invincible
Product recordSimple item with no variations
Compatible cutterheadNot specified

Match the insert seat and fastening

Compare the 15 mm face and 2.5 mm thickness with the cutterhead pocket. The drawing labels a 30-degree slope. Check the mounting hole and seating face separately. The page gives no cutterhead model, insert grade or part-number standard.

Before replacing an insert

  1. Measure the pocket length and width.
  2. Confirm the 2.5 mm thickness and 30-degree edge.
  3. Check the mounting hole and screw seat.
  4. Match the part code to the cutterhead drawing.

Listing limits

The title and image use origin and performance wording without supporting documentation. The generic old description claims a 20 to 30 working-day service life without test conditions and conflicts about single-edge and multi-edge cutting. The page names no compatible cutterhead.

Product gallery

I130_14 15 x 15 x 2.5 mm carbide insert with 30-degree edge

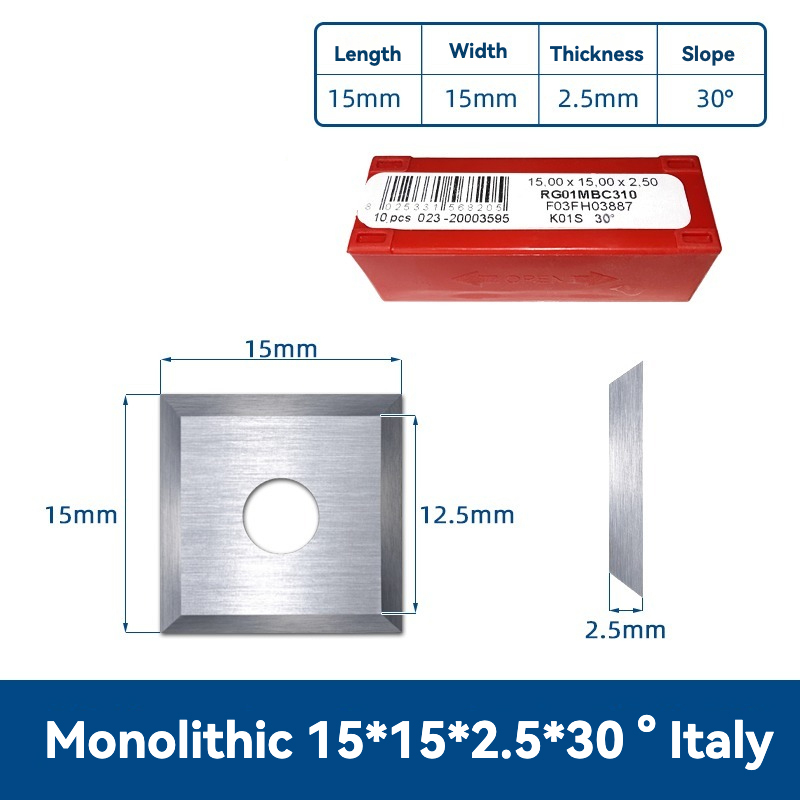

I130_14 insert dimension drawingThe main image labels 15 x 15 x 2.5 mm and 30-degree edge.

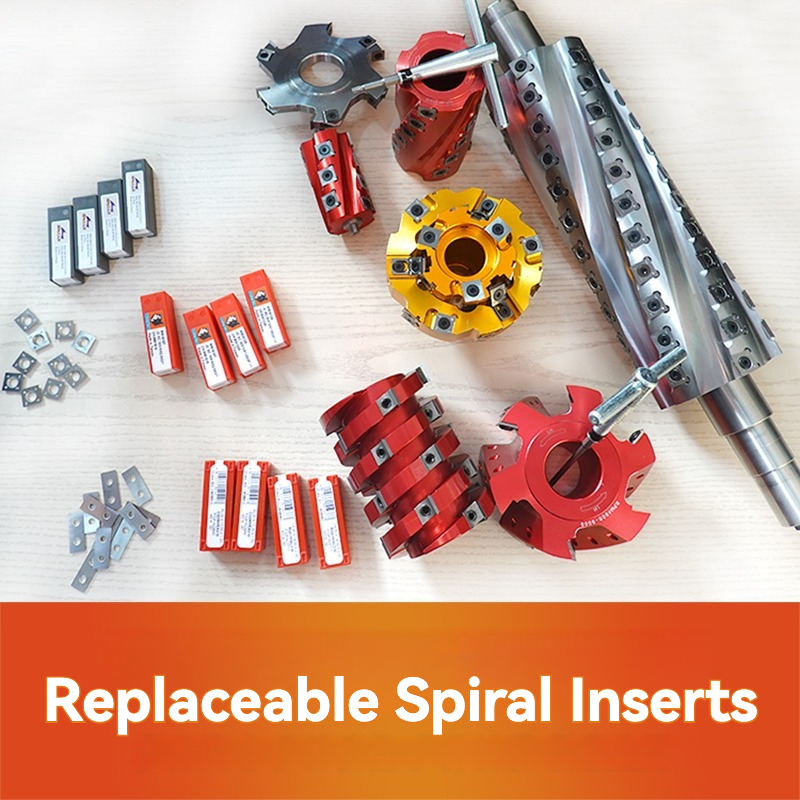

I130_14 spiral cutterhead series with replacement insert examples
I130_14 cutterhead series imageThis shared image shows spiral cutterheads and replacement inserts. It is not a compatibility list.

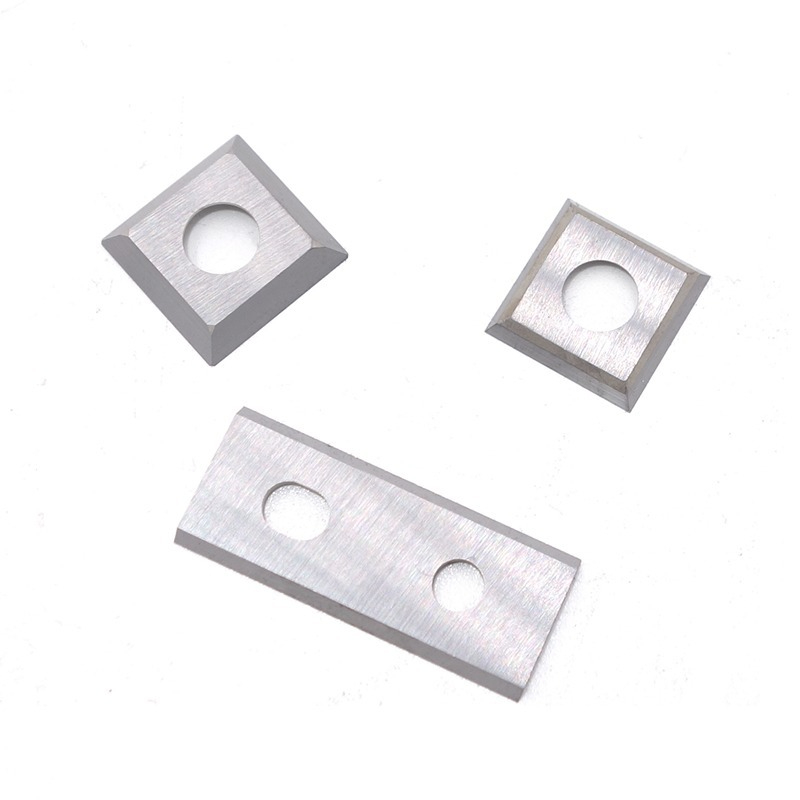

I130_14 loose silver cutter inserts in different shapes
I130_14 loose insert examplesThe shared image shows loose insert shapes but does not identify I130_14 or its mounting hole.

Related category: Disposable Spiral Blades.

type

Monolithic 15X15X2. 5X30 ° Italian Sharp Invincible
