I130_03 Carbide Insert, 15 x 15 x 2.5 mm, 37-degree bevel

$4.49

I130_03 identifies one cutter insert sized 15 x 15 x 2.5 mm with a 37-degree bevel.

SKU: I130_03 Category:

I130_03 identifies one cutter insert. The main gallery drawing labels it 15 x 15 x 2.5 mm with 37-degree bevel. Its visible type attribute reads "Monolithic 15 x 15 x 2.5 mm, 37-degree blade". The WooCommerce record uses a simple product type and contains no selectable variation records. The title and main drawing label a 37-degree edge on the 15 x 15 x 2.5 mm insert. The images do not identify a specific cutterhead or replacement-part standard. Other gallery images show a cutterhead series and loose insert examples but do not identify a compatible model.

Specifications

Product typeSingle cutter insert, as indicated by the main image
Drawing dimensions15 x 15 x 2.5 mm
Edge geometry on drawing37-degree bevel
Visible type attributeMonolithic 15 x 15 x 2.5 mm, 37-degree blade
Product recordSimple item with no variation records
Machine or cutterhead modelThe listing names no model

Verify the bevel direction and pocket

The size drawing shows a 15 mm square face, 2.5 mm thickness and a 37-degree edge. It also shows an edge-height example, but the page does not state how that dimension is measured. Compare the complete profile, bevel orientation and screw seat with the cutterhead drawing before purchase.

Before fitting the insert

  1. Measure the square pocket and insert thickness.
  2. Compare the 37-degree bevel orientation with the existing blade.
  3. Check screw-hole position and seating face.
  4. Ask the seller how the image measures edge height.

Listing limits

The old copy describes performance and a 20 to 30 day life claim without test conditions. Its single-edge and multi-edge wording also conflicts. No supported cutterhead model, grade or edge orientation standard is listed. The dimension drawing labels 37 degrees and shows an edge-height example.

Product gallery

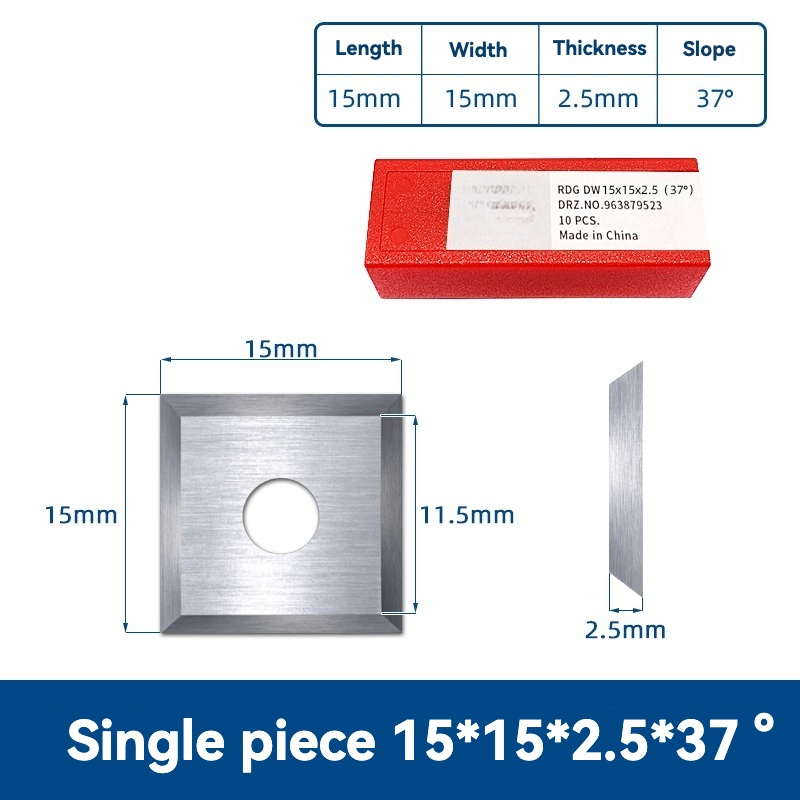

I130_03 single cutter insert drawing labeled 15 x 15 x 2.5 mm and 37-degree bevel
I130_03 insert dimension drawingThe main image labels 15 x 15 x 2.5 mm and the 37-degree bevel geometry.

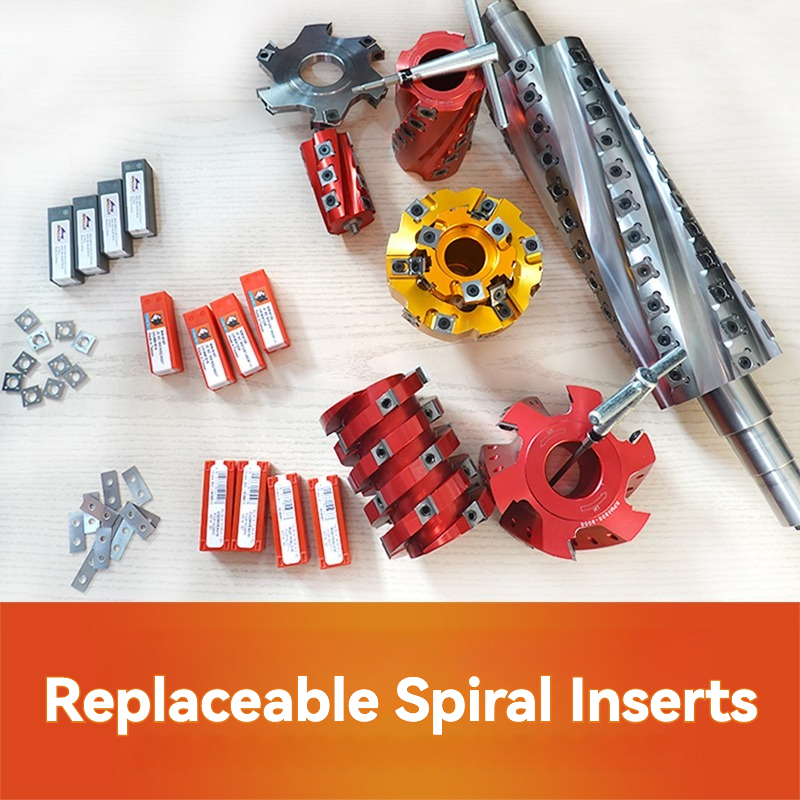

I130_03 spiral cutterheads shown with replacement insert examples
I130_03 cutterhead-series illustrationThis series image shows spiral cutterheads and replacement-insert examples. It does not list compatible machines.

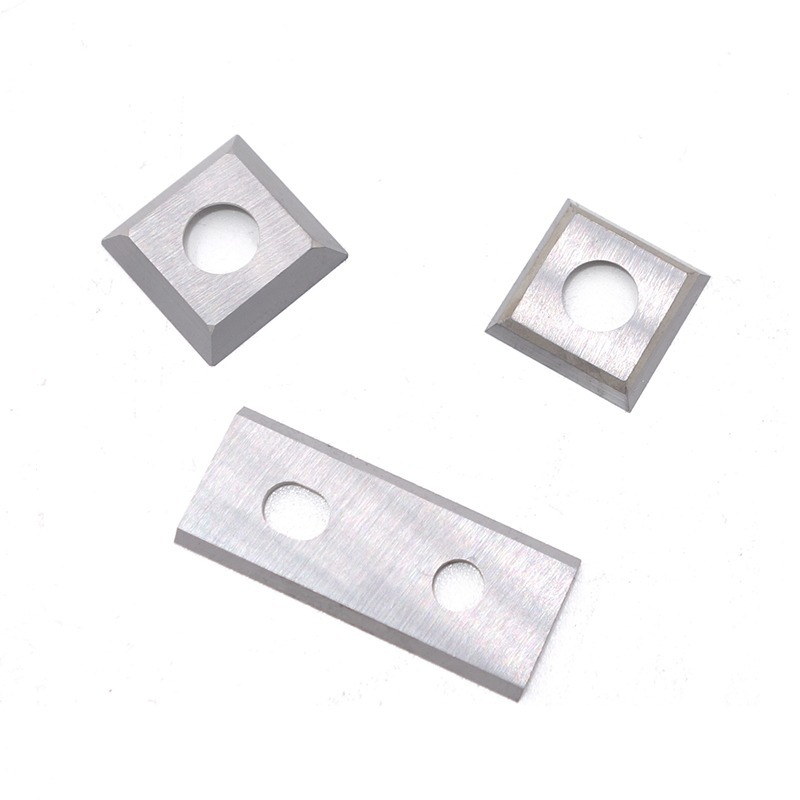

I130_03 loose silver cutter inserts in square and rectangular shapes
I130_03 loose insert examplesThe loose-insert gallery image is a series example and does not map its shapes to I130_03.

Related category: Cutterheads and Blades.

type

Monolithic 15X15X2. 5X37 ° Blade
