I130_08 Carbide Insert, 15 x 15 x 2.5 mm, 30-degree bevel

Name: I130_08 Carbide Insert 15 x 15 x 2.5 mm, 30-degree bevel
SKU: I130_08
Price: 6.38 USD
Availability: InStock

$6.38

I130_08 identifies one cutter insert sized 15 x 15 x 2.5 mm with a 30-degree bevel.

SKU: I130_08 Category: Disposable Spiral Blade

Description
Additional information

I130_08 identifies one cutter insert. The main gallery drawing labels it 15 x 15 x 2.5 mm with 30-degree bevel. Its visible type attribute reads "Monolithic 15 x 15 x 2.5 mm, 30-degree Taiwan". The WooCommerce record uses a simple product type and contains no selectable variation records. The title and main image label a Taiwan-marked 15 x 15 x 2.5 mm insert with a 30-degree edge. The gallery does not identify a cutterhead model or replacement-part code. Other gallery images show a cutterhead series and loose insert examples but do not identify a compatible model.

Specifications

Product type	Single cutter insert, as indicated by the main image
Drawing dimensions	15 x 15 x 2.5 mm
Edge geometry on drawing	30-degree bevel
Visible type attribute	Monolithic 15 x 15 x 2.5 mm, 30-degree Taiwan
Product record	Simple item with no variation records
Machine or cutterhead model	The listing names no model

Verify the square insert and bevel direction

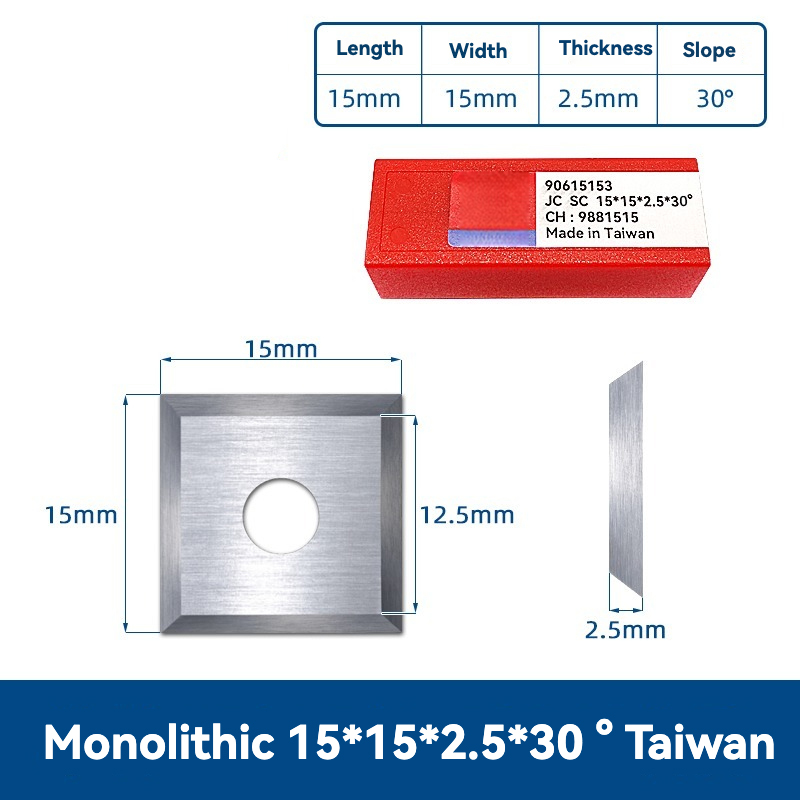

The main image labels a 15 x 15 mm face, 2.5 mm thickness and a 30-degree slope. A side view adds another measurement, but the page does not define its datum. Compare the full geometry, screw seat and bevel direction with the cutterhead drawing, not just the nominal square size.

Before fitting the insert

Check the 15 x 15 mm seat and 2.5 mm thickness.
Confirm the bevel direction and the side-view measurement.
Measure the mounting hole and seating face.
Match the exact insert code to the cutterhead drawing.

Listing limits

The Taiwan wording appears in the title and image, but there is no separate origin record. The generic copy also contains a service-life estimate and conflicting edge-count statements without test conditions. No cutterhead model, screw standard or insert grade is provided. The image labels 15 mm dimensions and a 30-degree slope. It does not name a machine.
