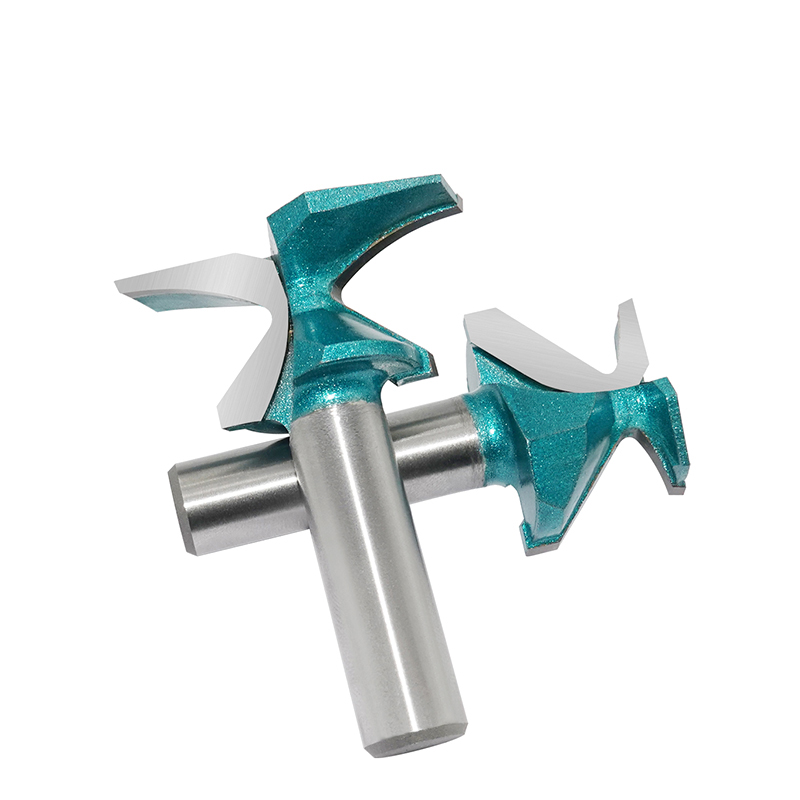

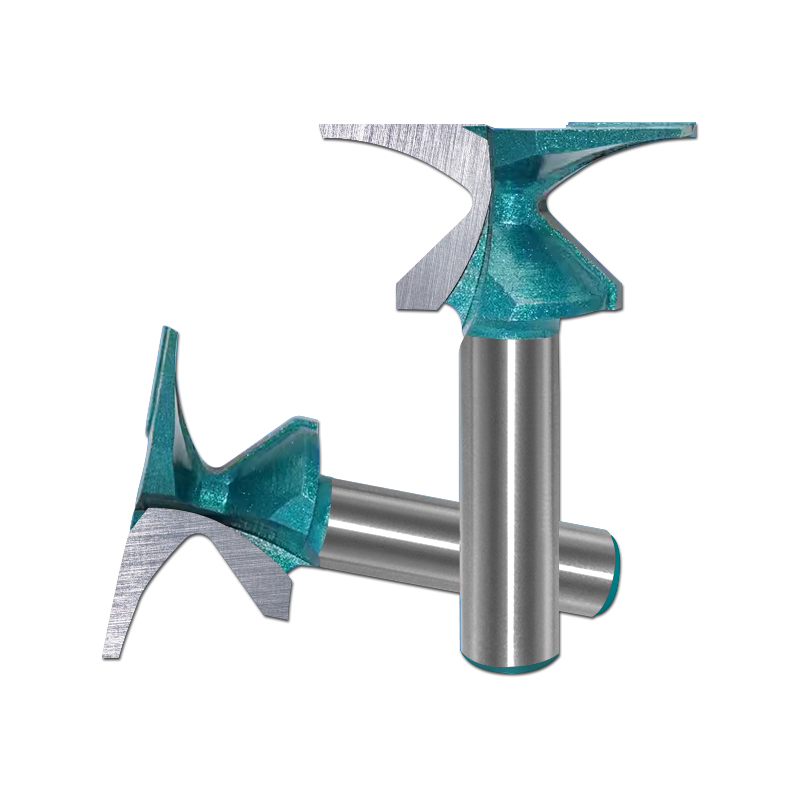

MCRT15 – R18 Arc Bending Router Bit – 1/2 inch (12.7mm) Shank, Diamond-Coated

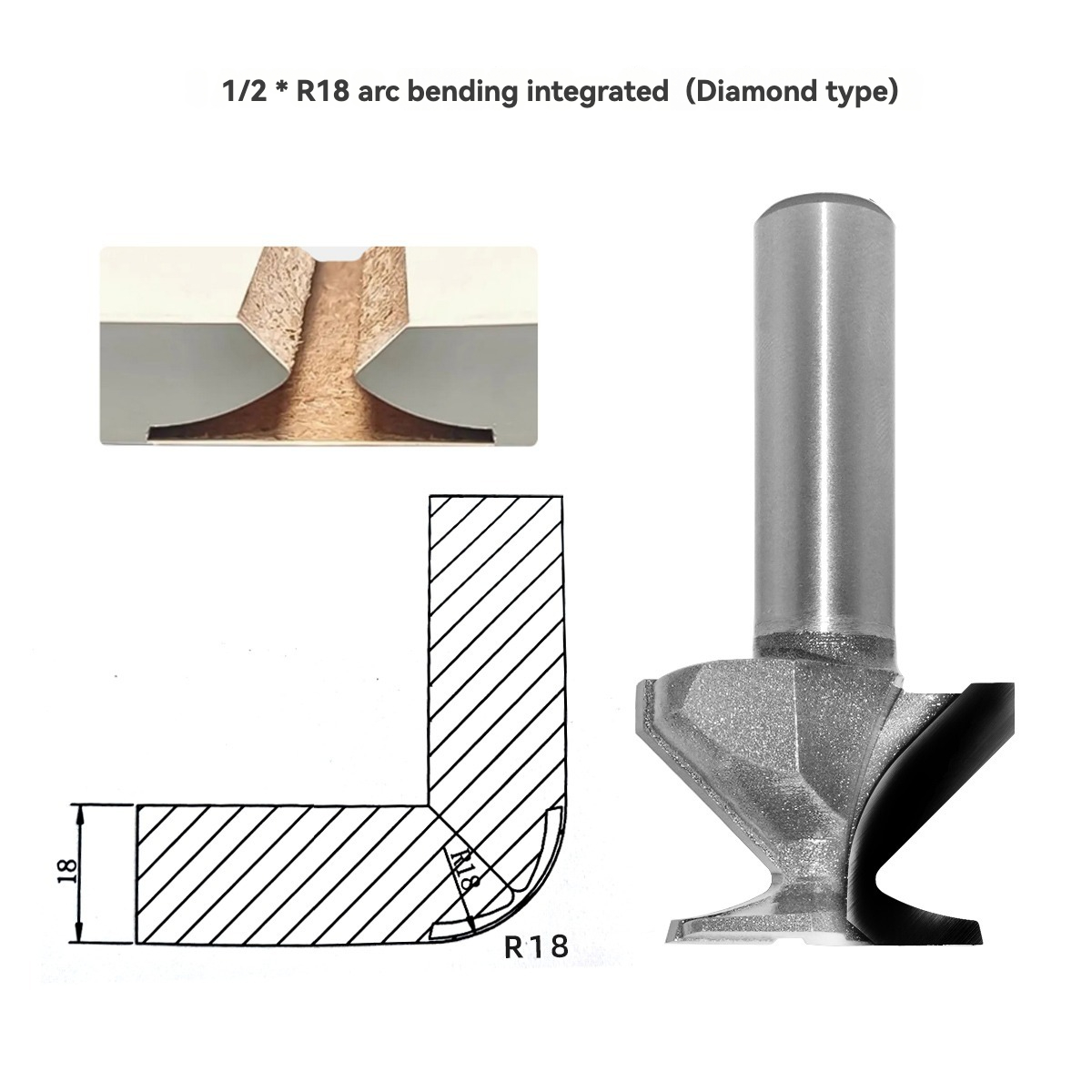

MCRT15 R18 Arc Bending Router Bit, 1/2 inch (12.7 mm) Shank, Diamond-Coated forms an R18-radius groove or curved preparation detail for carbon crystal panels and similar decorative board materials. Its diamond-coated cutting edge and 1/2 in shank should be matched to the machine, material and required finished profile.

Applications

• R18-radius grooves and formed edge details in decorative panels
• Prepared bending lines after the panel geometry has been tested
• Repeatable routing with a fence, template or programmed path

Selection and Setup

Confirm that the R18 profile suits the panel thickness and desired detail. Match the 1/2 in shank exactly to the collet or holder, then make a trial route in offcut material. Surface layers and core materials can change the best pass depth and feed rate.

Machining Tips

Support the panel fully and use controlled passes. Check the groove depth and resulting profile on a sample before machining visible parts. Keep chips clear and stop if the decorative surface begins to chip or fracture.

Compare related tools in Carbon Crystal Panel Folding Bits.
