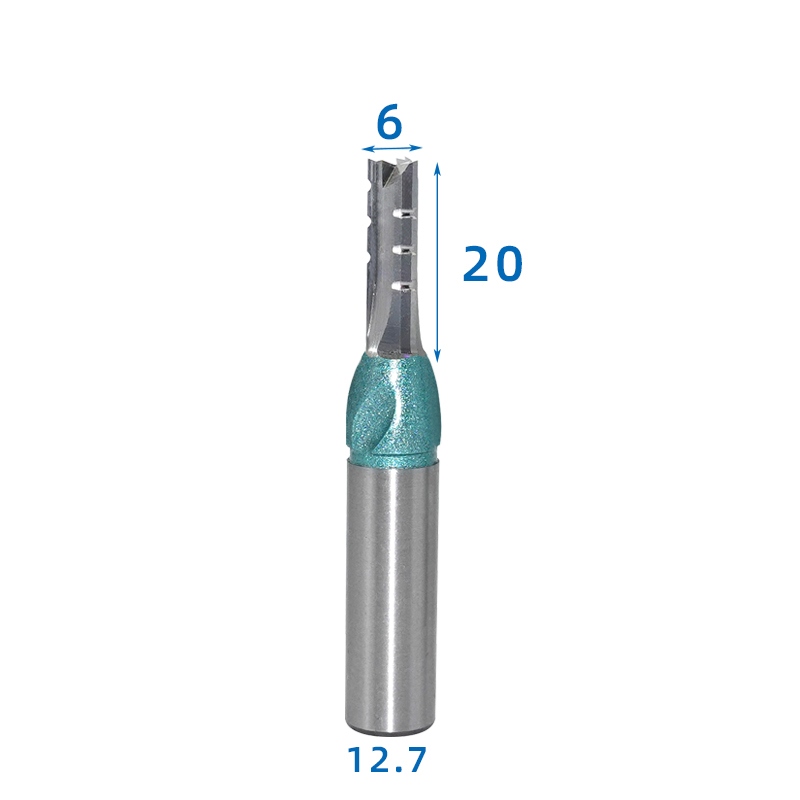

MCRT27 drawing marked 6 mm diameter, 20 mm cut and 12.7 mm shank

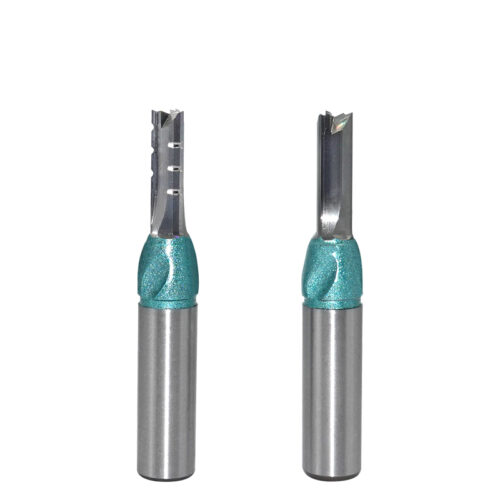

MCRT27 straight cutters shown at an angle with the cutting ends visible

MCRT27 TCT Straight Router Bit, 1/2 in Shank, 6 x 20 mm

Name: MCRT27 6 x 20 mm TCT Straight Router Bit | BitsRouter
SKU: MCRT27
Price: 8.23 USD
Availability: InStock

$8.23

MCRT27 TCT straight router bit, 6 mm diameter, 20 mm cutting length and 1/2 in shank. The option includes a chip-breaker label.

SKU: MCRT27 Category: Straight Router Bits

Description
Additional information

MCRT27 is the 6 mm cutter in this three-flute straight-bit group. Its type label includes a chip-breaker profile and lists a 20 mm cut on a 1/2 in shank. Match those dimensions to the slot before ordering.

Specifications

Cutter type	TCT three-edge straight cutter, chip-breaker option
Shank	1/2 in (12.7 mm)
Cutter diameter	6 mm
Cutting length	20 mm
Catalog option	TCT three-edge straight cutter 1/2 * 6 * 20 chip breaker

Check the fit

This model suits a job that calls for a 6 mm straight cut and the chip-breaker type named in the selector. The listing does not define the chip-breaker geometry beyond its name.

Confirm that the router collet accepts the 1/2 in shank.
Use the 6 mm diameter to check slot width and the 20 mm cutting length to check depth.
Compare the cutter profile with the selector chip-breaker label.
Secure the work. Follow router and cutter instructions for speed and feed, then test on scrap.

Limits in the listing

The drawing shows diameter, cutting length and shank size. The listing does not state a maximum speed, feed rate or compatible router models. Use the router and cutter instructions for those limits.
