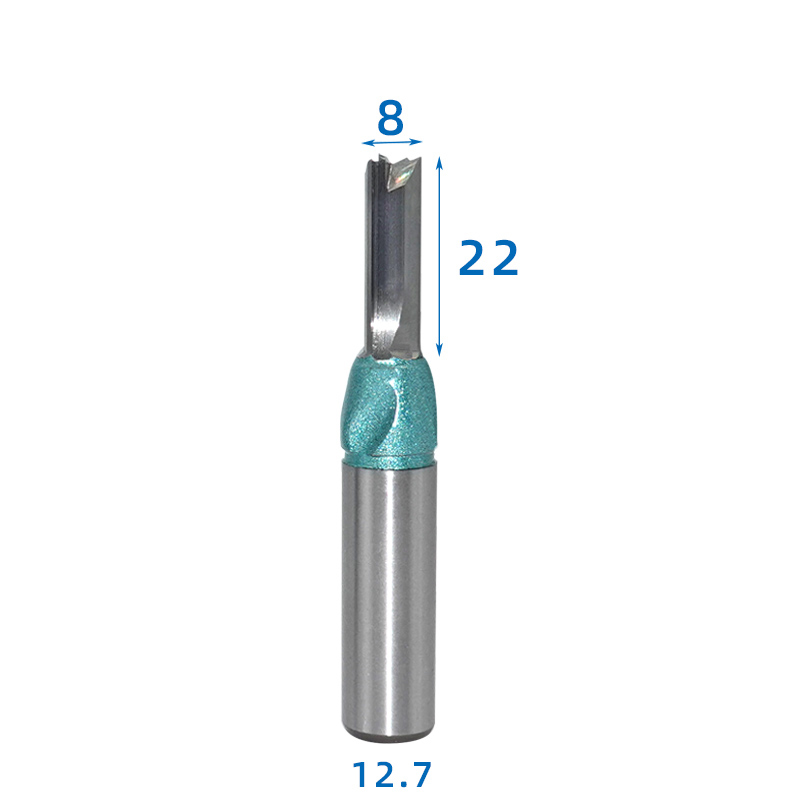

MCRT30 straight bit dimension drawing for 8 mm by 22 mm

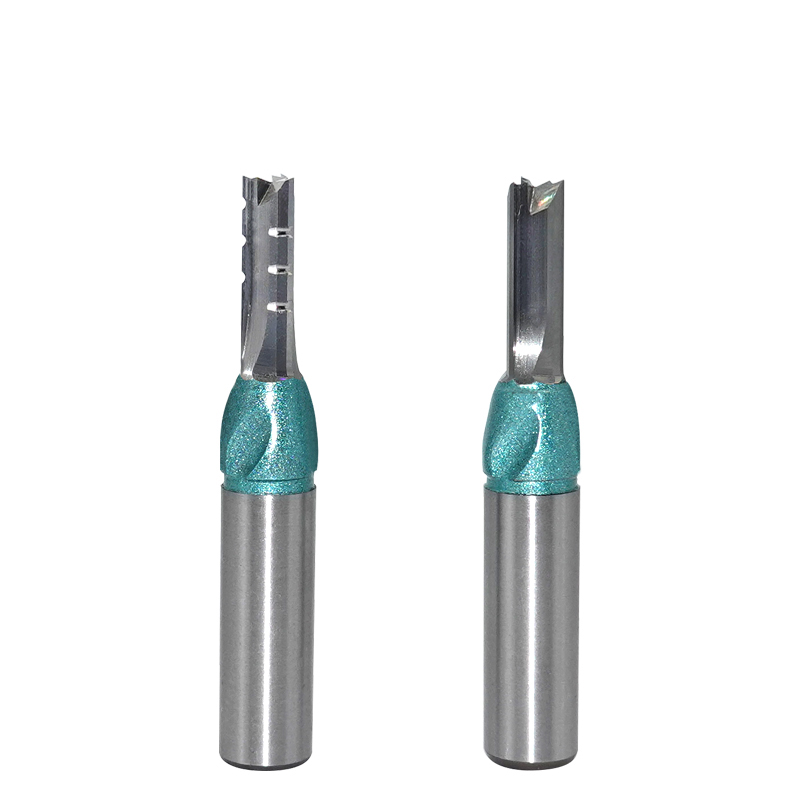

MCRT30 pair of turquoise straight router cutters

MCRT30 8 mm 3-Flute Straight Router Bit, 22 mm Cut

Name: MCRT30 8 mm 3-Flute Straight Router Bit, 22 mm Cut
SKU: MCRT30
Price: 20.92 USD
Availability: InStock

$20.92

MCRT30 is a TCT three-flute straight bit with an 8 mm diameter, 22 mm cut and 1/2 inch shank. Match the holder and planned depth before routing.

SKU: MCRT30 Category: Straight Router Bits

Description
Additional information

MCRT30 is a TCT three-flute straight router bit for grooves, dados, slots and shallow pockets in wood, MDF and plywood, according to the product text. The title and gallery drawing give an 8 mm cutter, 22 mm cutting length and 1/2 inch shank. The live type label repeats those dimensions and identifies a chip-breaker cutter.

Specifications

Product type	TCT three-flute straight router bit
Cutter diameter	8 mm
Cutting length	22 mm
Shank	1/2 inch
Option label	Three-edge straight cutter with chip breaker
Listed materials	Wood, MDF and plywood

Check the chip-breaker label and cutting depth

The listed shank is 1/2 inch. Match it to the collet, then check the 8 mm diameter, 22 mm cutting length and intended groove depth. The option label mentions a chip breaker. Test the cut on scrap stock before routing finished panels.

Before routing

Confirm the 1/2 inch shank matches the machine holder.
Check the 8 mm diameter against the planned groove width.
Keep the cutting depth within the 22 mm cutting length.
Set the fence, guide or toolpath from test stock.
Inspect chip evacuation during a test pass.

Listing limits

The title, selector and drawing identify an 8 x 22 mm cutter with a 1/2 inch shank. The page gives no machine-specific speed chart or detailed chip-breaker specification. Confirm the tool and workholding for the material before use.
