MCRT23 MCRT23 male convex drawer-slide router bit dimension drawing

MCRT23 Drawer Slide Router Bit, Male Convex Profile, 1/2 Inch Shank

Name: MCRT23 Male Drawer Slide Router Bit, 1/2 Inch Shank
SKU: MCRT23
Price: 27.38 USD
Availability: InStock

$27.38

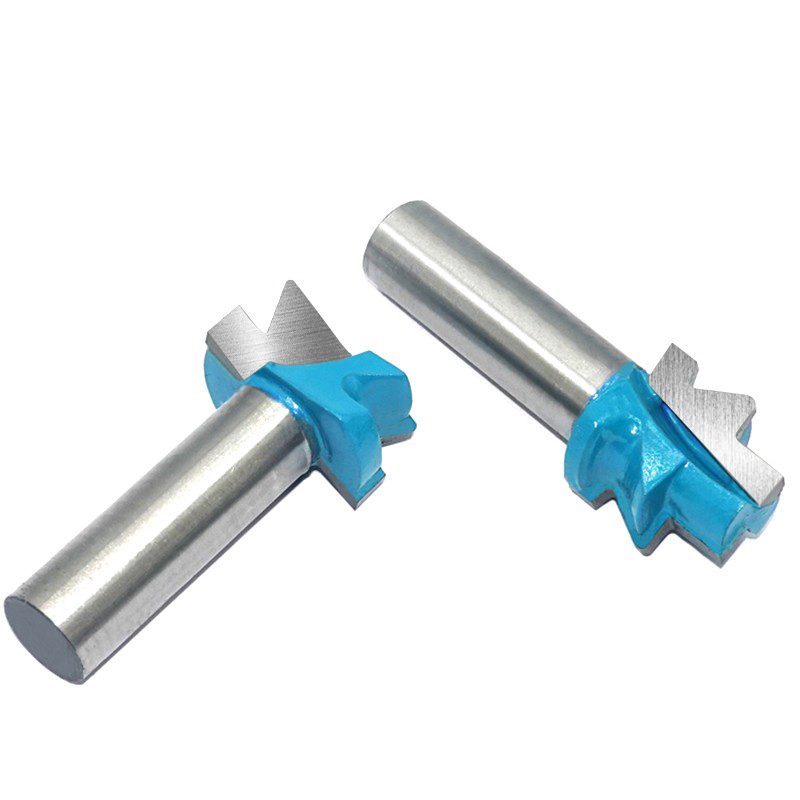

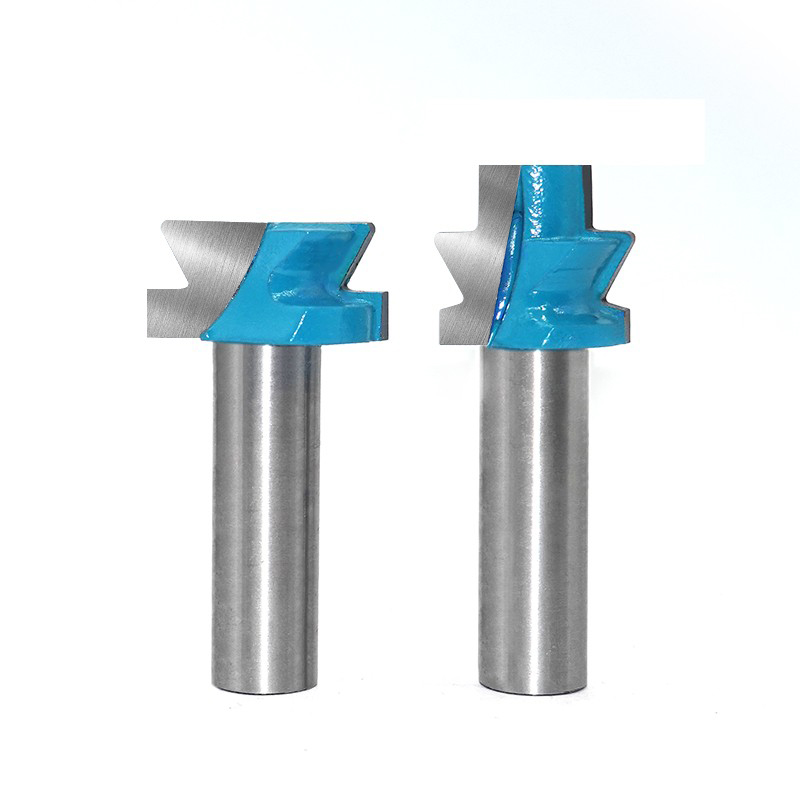

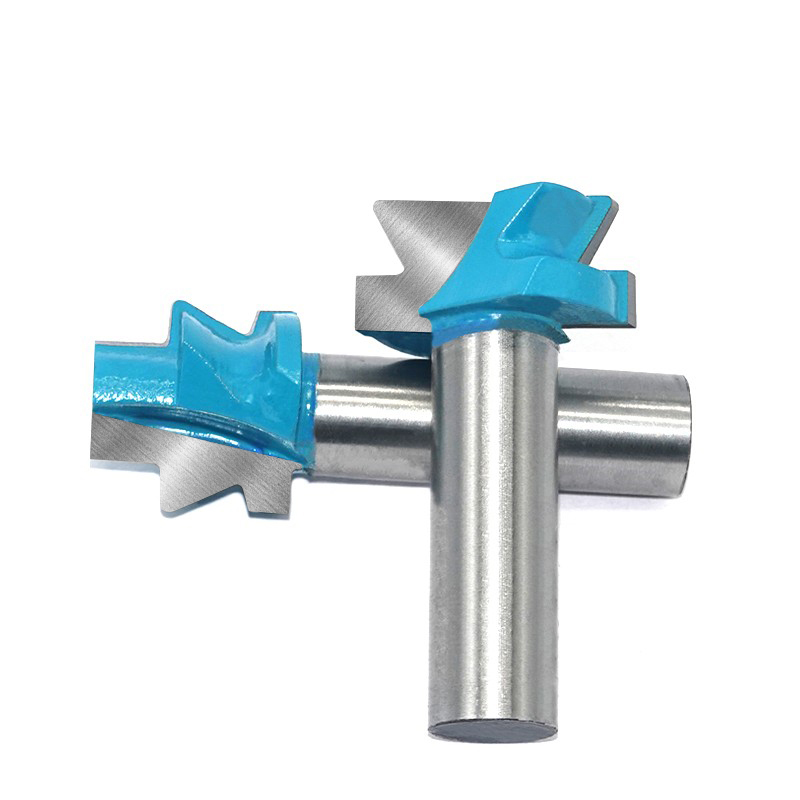

MCRT23 is the male convex-profile drawer-slide bit with a 1/2 inch shank.

SKU: MCRT23 Category: Straight Router Bits

Description
Additional information

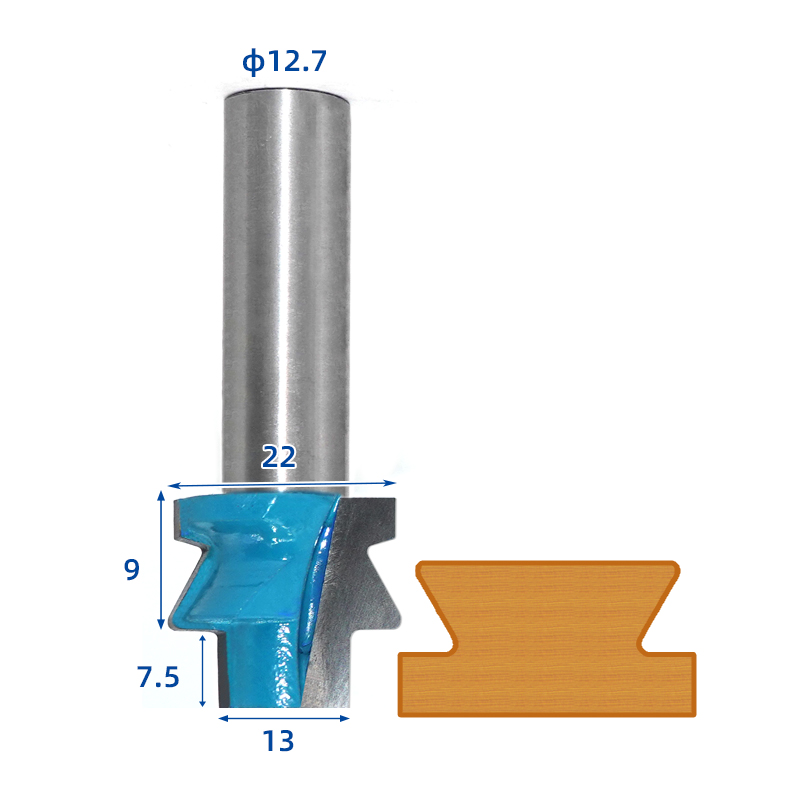

MCRT23 is titled as a male-profile drawer-slide router bit with a 1/2 inch shank. Its type attribute says male and convex. The dimension image labels a 12.7 mm shank, 22 mm top width, 13 mm base, 9 mm profile height and 7.5 mm lower step. Another image shows a matching wood profile. Check the drawing against the drawer stock before routing.

Specifications

Product role	Male drawer-slide profile cutter
Profile	Convex, per the type attribute
Shank	1/2 inch in title; 12.7 mm in drawing
Drawing labels	22 mm top width, 13 mm base, 9 mm profile height and 7.5 mm step
Product options	One simple product record
Matching cutter	MCRT24 female profile

Check the male profile against its mating groove

Use the 22 mm top, 13 mm base, 9 mm height and 7.5 mm step as drawing labels. The page does not state a stock-thickness range or full fence setup. Compare a test male profile with the MCRT24 female cut and confirm clearance before making drawer parts.

Before routing the drawer slide

Check the 12.7 mm shank against the router collet.
Compare the drawing dimensions with the planned runner profile.
Set the fence on scrap stock and make a short test cut.
Fit the male and female samples together before routing finished parts.

Listing limits

The image gives profile measurements but no supported router model, stock range or complete cutting-height specification. The category remains Straight Router Bits although the title describes a drawer-slide profile. Confirm the cutter and setup with the machine manual.
