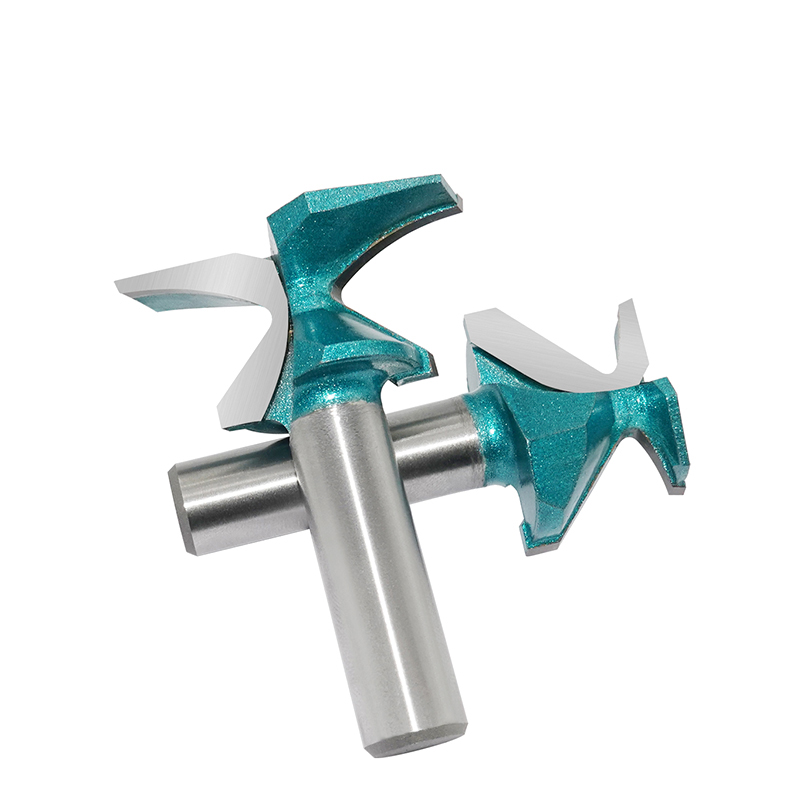

MCRT14 – R50 Arc Bending Router Bit – 1/2 inch (12.7mm) Shank, Alloy Model

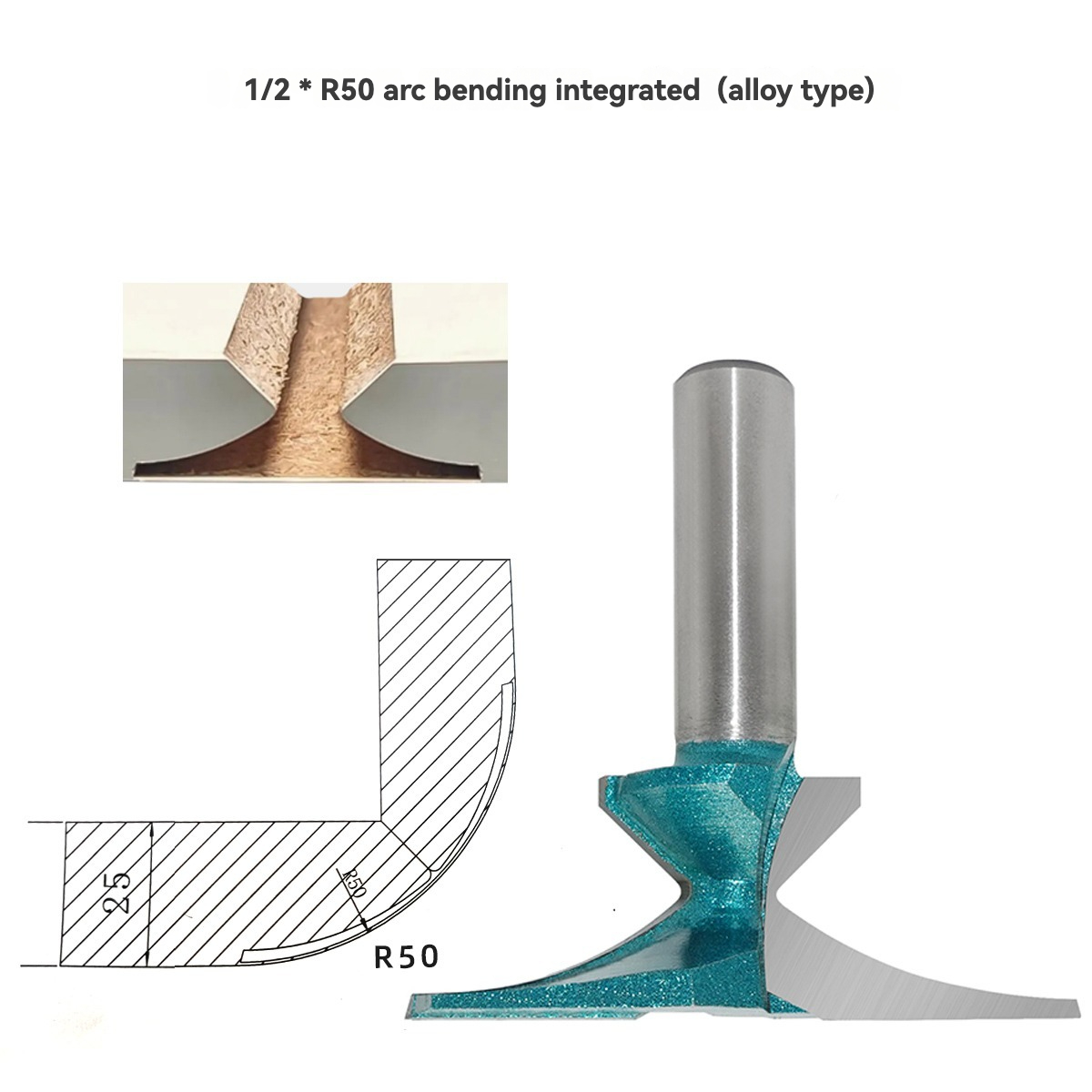

MCRT14 R50 Arc Bending Router Bit, 1/2 inch (12.7 mm) Shank, Alloy Model forms an R50-radius groove or curved preparation detail for carbon crystal panels and similar decorative board materials. Its 1/2 in (12.7 mm) shank is for equipment fitted with the matching collet or holder.

Applications

• R50-radius grooves and formed edge details in decorative panels
• Prepared bending lines where the required panel geometry has been tested
• Repeatable routing with a fence, template or programmed path

Selection and Setup

Confirm the R50 profile is appropriate for the panel thickness and finished detail. Match the 1/2 in shank exactly to the collet or holder, and test the route in an offcut before machining finished panels. Panel construction and surface layers can affect the required depth and feed rate.

Machining Tips

Support the work fully and make controlled passes. Check the groove depth and resulting bend or profile on a sample, then adjust before routing visible pieces. Keep chips clear and stop if the decorative surface begins to chip or fracture.
