TSC24 5 mm Straight Slot Cutter, 60 mm Diameter, 1/2 in Shank

TSC24 is a 5 mm straight slot cutter with a 60 mm cutter diameter, a 1/2 in shank and 6 teeth. Select it by the required groove width, then check the shank fit and machine clearance.

Listed specifications

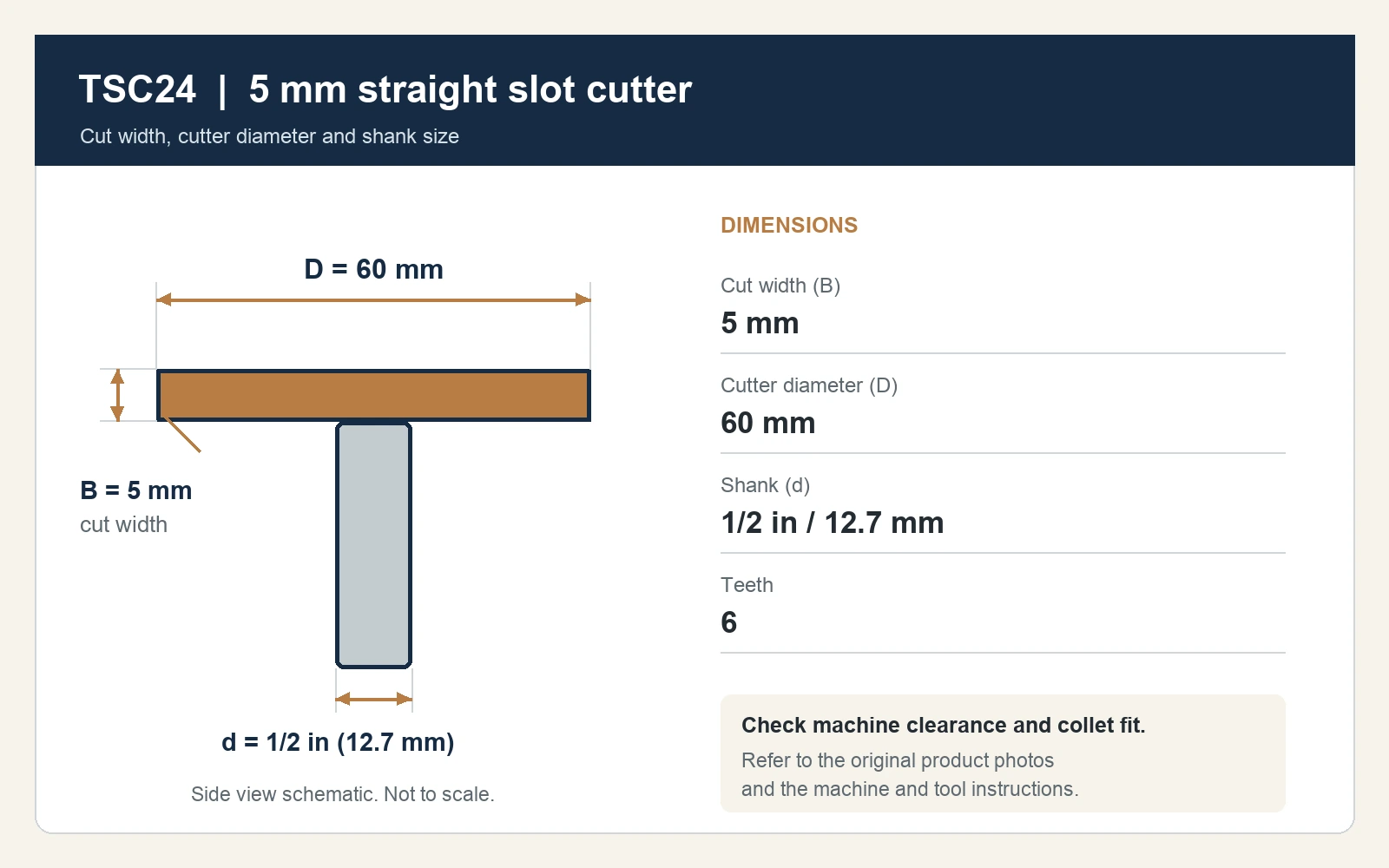

The dimensions above match the original dimensioned product photo in the gallery. The technical card identifies the cut width, cutter diameter and shank separately.

Read the dimensions before selecting a cutter

The 5 mm dimension is the cut width. The 60 mm dimension spans the cutter head in the original product drawing. Check that diameter against the machine opening, guard and workpiece clearance.

Set the groove position and depth from your joint drawing. This page does not specify a maximum cutting depth. For a mating strip or panel, compare its measured thickness with the required groove tolerance.

Compare cut widths

These models share a 60 mm cutter diameter, a 1/2 in shank and 6 teeth. Choose the cut width that matches your groove drawing.

Guide and setup checks

• Confirm that your machine accepts the 1/2 in shank. Use the matching collet and the engagement required by its manufacturer.
• Confirm the guide arrangement for your cut. The source listing does not specify a bearing guide.
• Check the tool and machine instructions for speed, feed, guarding and pass depth. This listing supplies no operating speed or feed rate.
• Secure and support the workpiece. Test the setup on matching scrap before cutting the finished component.

Before you order

For a fit check, send the TSC24 product link, machine model, collet size, material details and groove drawing. Include the required quantity. The ordering help guide explains what information to provide.

Contact BitsRouter if you need confirmation of a dimension or application before ordering.
