TSC1 1 mm Straight Slot Cutter, 31.8 mm Diameter, 1/4 in Shank

TSC1 is a 1 mm straight slot cutter with a 31.8 mm cutter diameter, a 1/4 in shank and 4 teeth. Select it by the required groove width, then check the shank fit and machine clearance.

Listed specifications

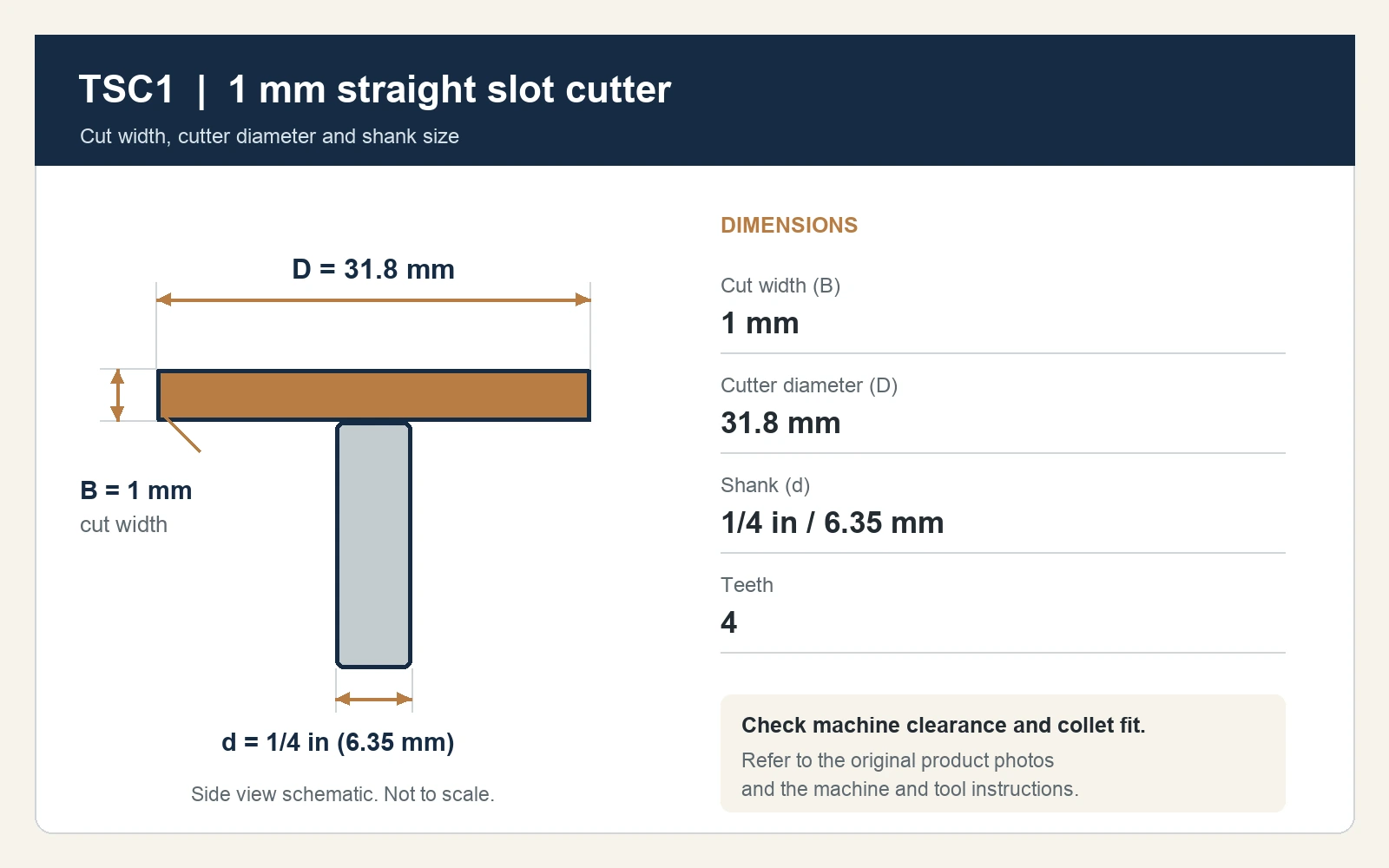

The dimensions above match the original dimensioned product photo in the gallery. The technical card identifies the cut width, cutter diameter and shank separately.

Check the panel and the groove

The source listing names carbon-crystal panels as the intended application. Panel construction can vary. Send the panel’s material details and groove drawing for a fit check before choosing this cutter.

Use the 1 mm dimension for the cut width. Compare it with the groove tolerance and the part that must fit inside it. Make a test cut in a matching offcut and measure the result before cutting the finished panel.

Compare cut widths

These models share a 31.8 mm cutter diameter, a 1/4 in shank and 4 teeth. Choose the cut width that matches your groove drawing.

Guide and setup checks

• Confirm that your machine accepts the 1/4 in shank. Use the matching collet and the engagement required by its manufacturer.
• Confirm the guide arrangement for your cut. The source listing does not specify a bearing guide.
• Check the tool and machine instructions for speed, feed, guarding and pass depth. This listing supplies no operating speed or feed rate.
• Secure and support the workpiece. Test the setup on matching scrap before cutting the finished component.

Before you order

For a fit check, send the TSC1 product link, machine model, collet size, material details and groove drawing. Include the required quantity. The ordering help guide explains what information to provide.

Contact BitsRouter if you need confirmation of a dimension or application before ordering.
