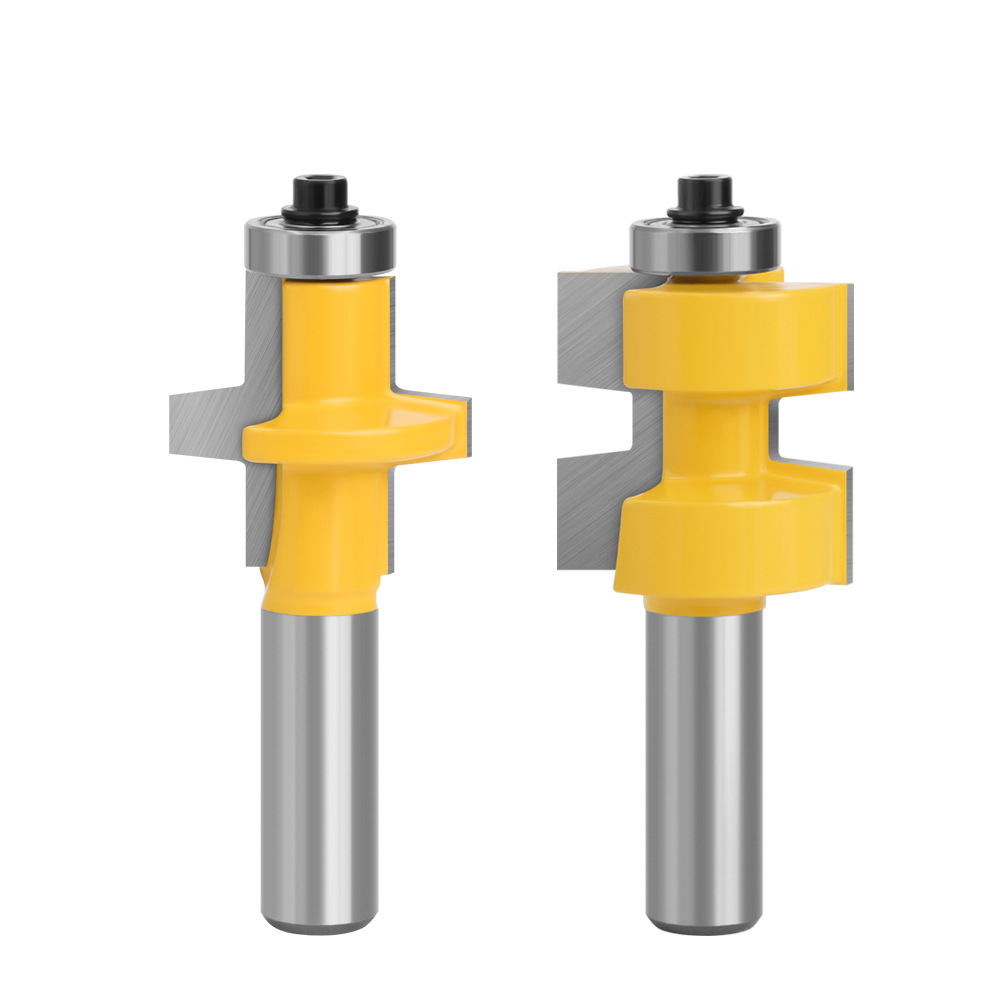

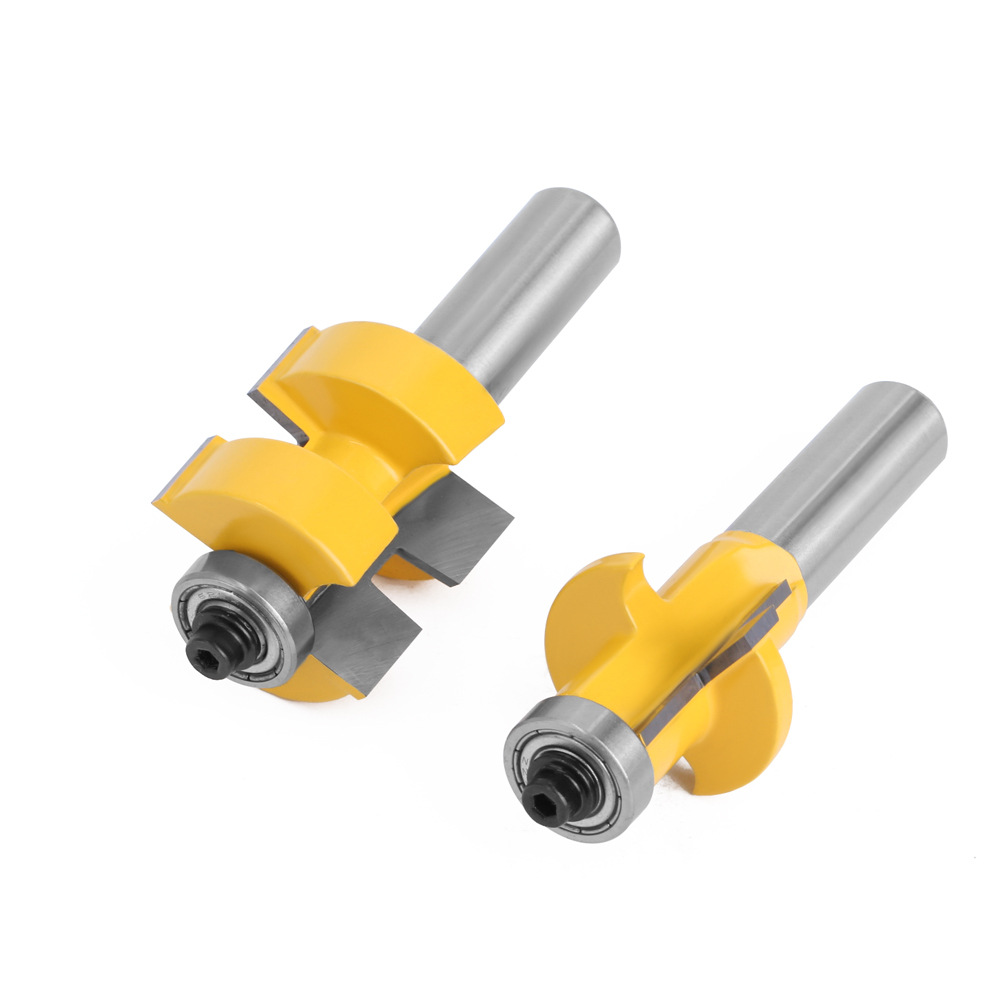

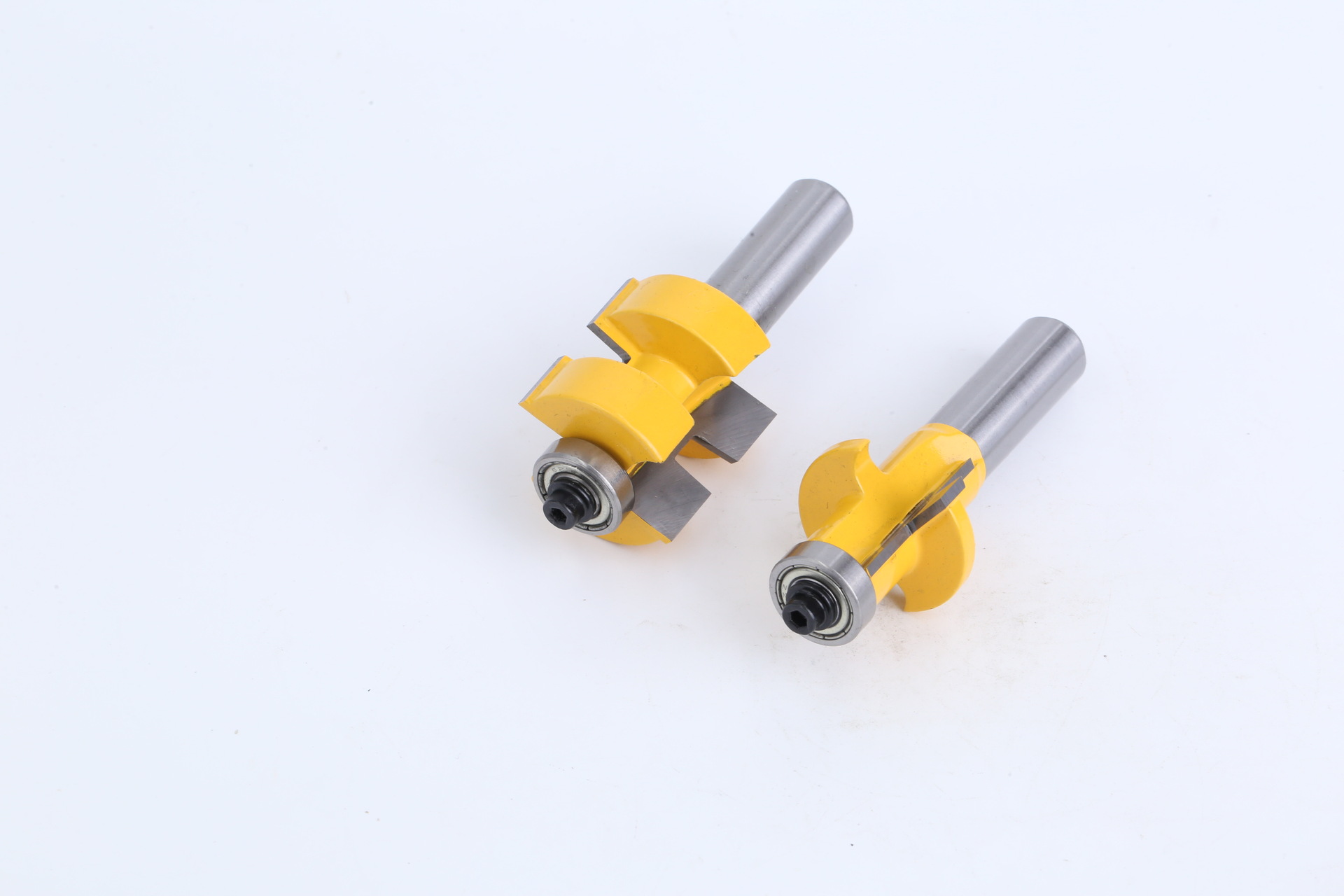

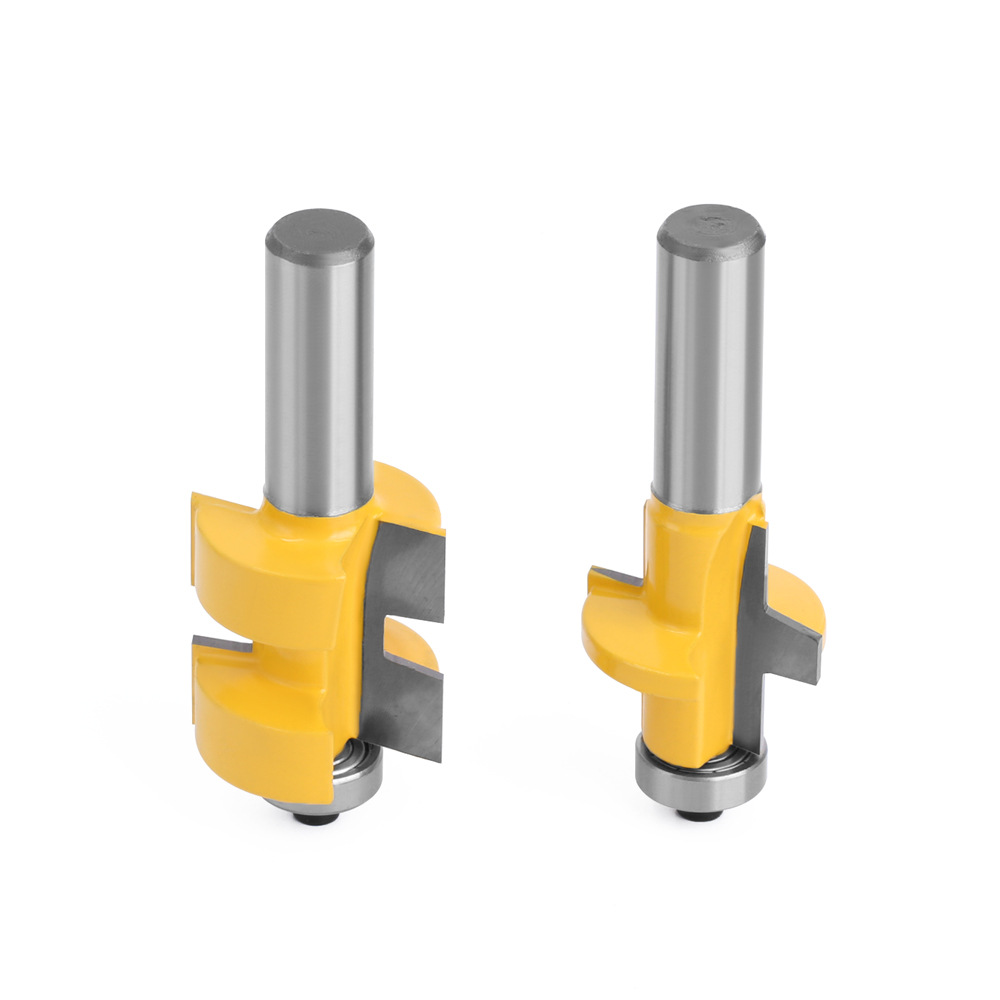

TR1608 – Bearing Tenon Router Bit (1/2″ and 12mm Shanks)
$16.59
TR1608 bearing tenon router bit with 1/2″ and 12mm shanks. Ideal for woodworking joints, providing precise square-tooth tenons with smooth cutting and durable performance.
Bearing Tenon Router Bit for Woodworking Joints (Square Tooth, 1/2″ and 12mm Shanks)

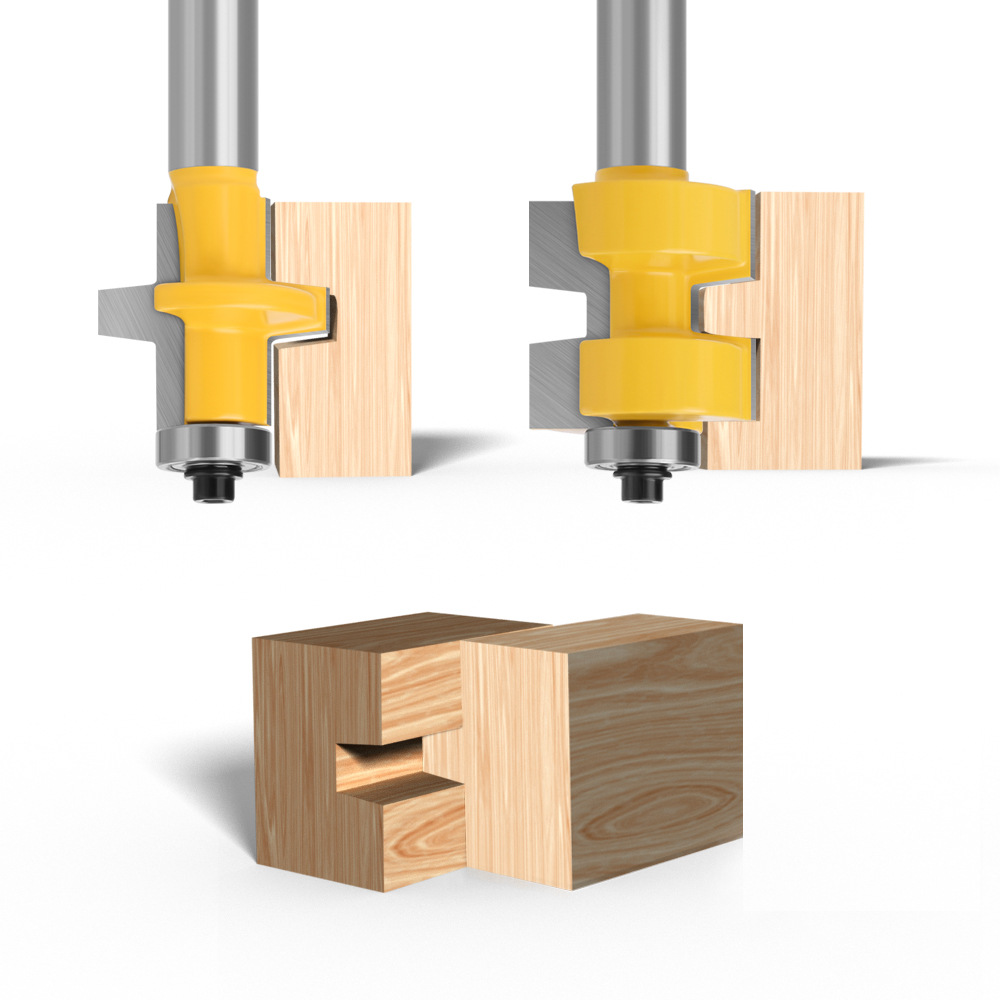

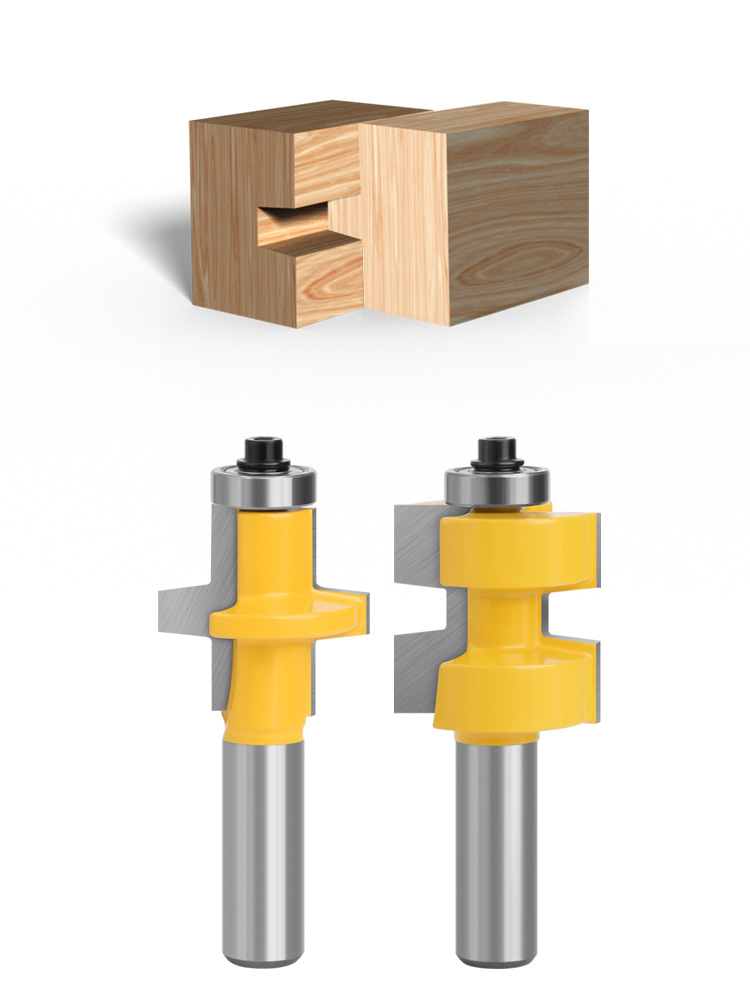

Precision bit for mortise-and-tenon joinery and clean shoulder cuts. Heat-resistant coating and sealed bearings ensure smooth, accurate performance on solid wood, MDF, and plywood.
Features
- High-temperature & heat-resistant Teflon coating
- ±0.003″ tolerance for crisp shoulders and tight joints
- Sealed, lubricated bearings for smooth operation
- Durable 45# steel body
- Stable cutting on solid wood, MDF, plywood, and more
Specifications
- Name: Tenon joint router bit
- Item: 12mm Shank Router Bit
- Material: 45# steel
- Shank Diameter: 12mm / 12.7mm
- Applicable Materials: Solid wood, ecological board, MDF, plywood, etc.
- Applicable Equipment: Trim router, engraving machine, hand router, CNC, etc.
- Recommended Feed Speed: 8–12 m/min
- Recommended Spindle Speed: 18,000–24,000 RPM
- Tolerance: ±0.003″
- Bearings: Sealed & lubricated
Package Includes
- 1 × router bit
Notes
- Preferred color will be shipped; substitutes may be provided if out of stock.
- Manual measurement may vary by 1–3 mm.
- Colors may differ slightly due to display and photography.
Reference Data
| Machine | Speed | Type | Notes |
|---|---|---|---|
| Trim router | 10,000–30,000 rpm | Electric router | 1st 9,000 rpm; 2nd 12,000 rpm; 3rd 15,000 rpm; 4th 19,000 rpm; 5th 23,000 rpm |
| Vertical milling router | 12,000–24,000 rpm | CNC engraving machine | Variable frequency up to 18,000 rpm |
| Diameter / Cutting Height (mm) | Max Speed (RPM) | Max Feed Speed (mm/min) |
|---|---|---|
| ≤ 25 | 24,000 | 5,000 |
| 25.1 – 35 | 18,000 | 4,000 |
| 35.1 – 50 | 16,000 | 3,500 |
| 50.1 – 60 | 14,000 | 3,000 |
| 60.1 – 80 | 12,000 | 2,500 |
| ≥ 80 | 10,000 | 2,000 |
| type | 12mm shank – 1-1/4" x 1/4" bearing square tooth tenon cutter, 1/2" shank – 1-1/4" x 1/4" bearing square tooth tenon cutter |
|---|
