Name: BCFB5 20 mm Bottom Cleaning Router Bit | BitsRouter
SKU: BCFB5
Price: 53.00 USD
Availability: InStock

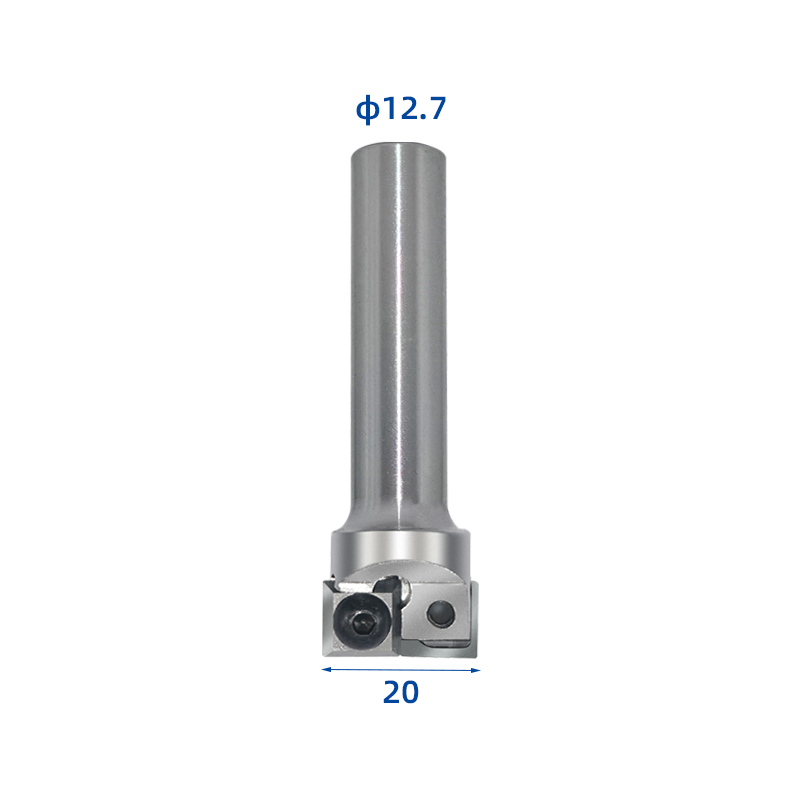

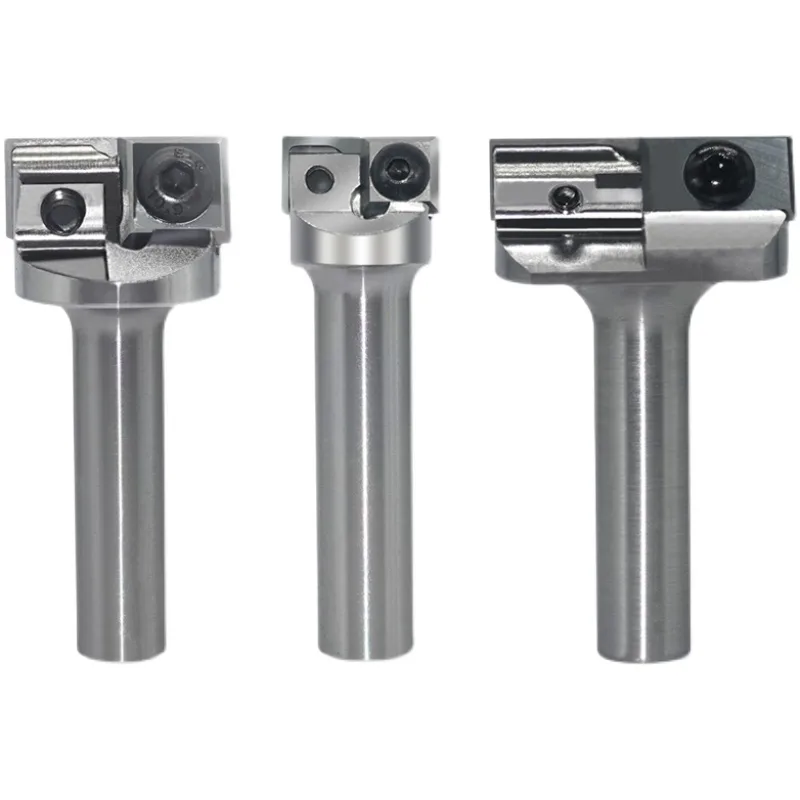

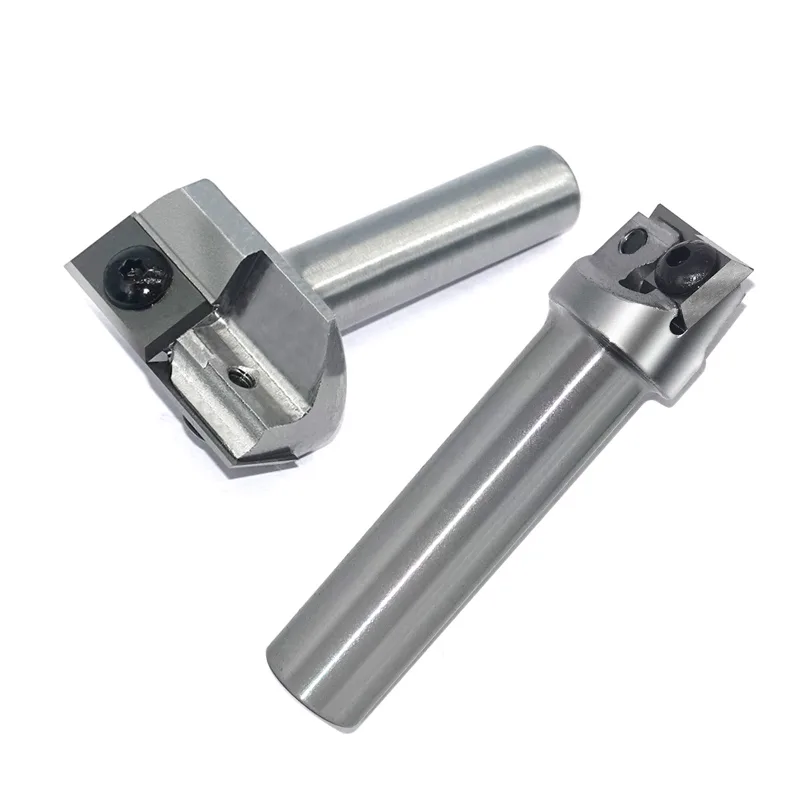

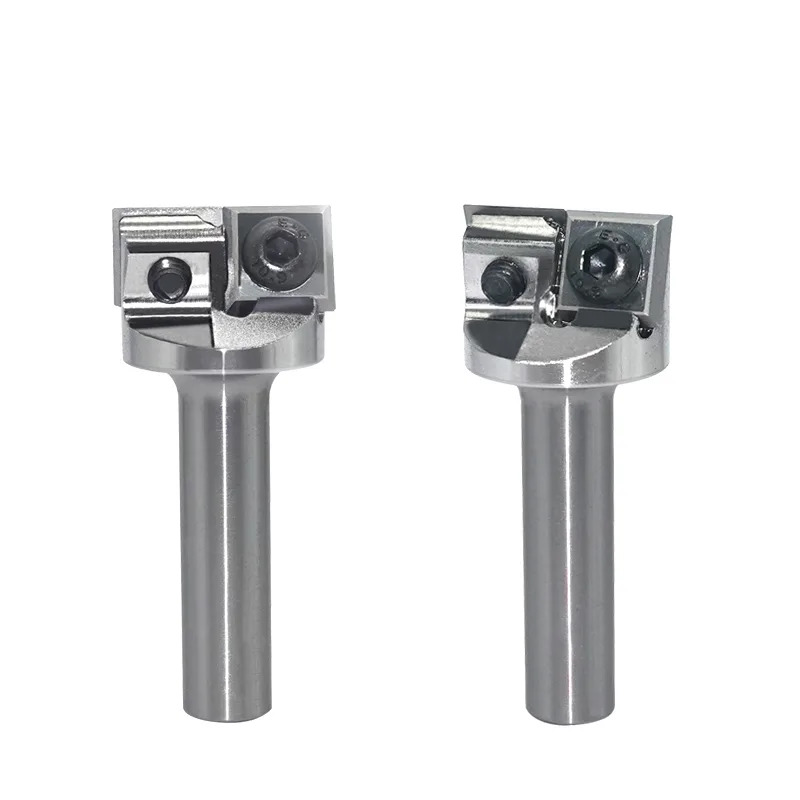

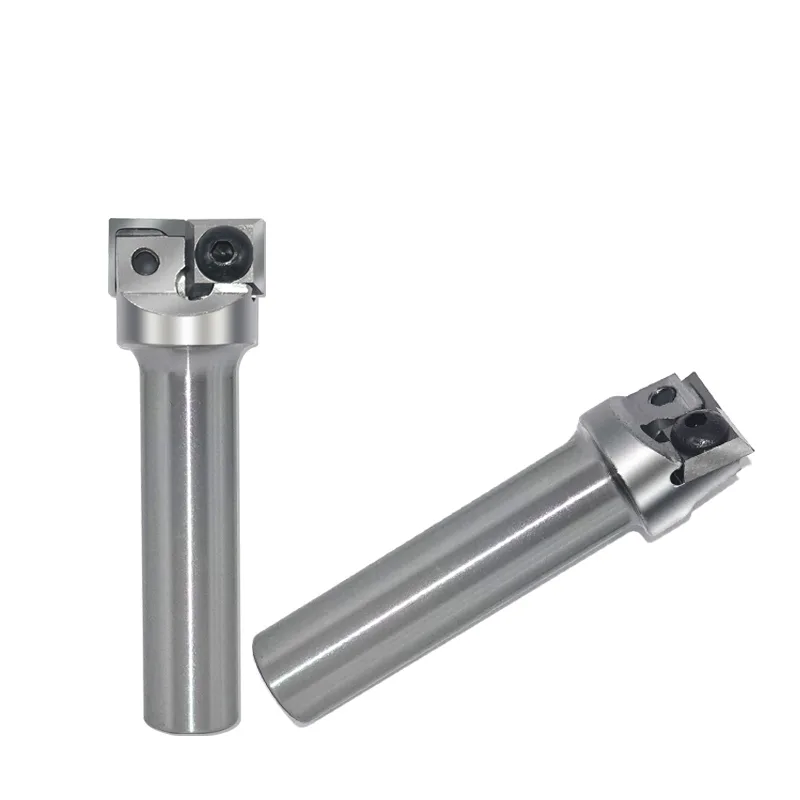

BCFB5 2-Flute Insert Bottom Cleaning Router Bit, 20mm Cut, 1/2 Inch Shank

$53.00

BCFB5 two-flute insert bottom cleaning router bit with a 20 mm cut and a 1/2 inch shank. Match the cut and holder size to the machine before ordering.

BCFB5 is a two-flute insert bottom cleaning router bit. The listing gives a 20 mm cut and a 1/2 inch shank. Match these values to the router, holder and planned recess before you order.

Listed specifications

Specification	BCFB5 listing
Tool type	Insert bottom cleaning router bit
Flutes	2
Listed cut	20 mm
Shank	1/2 inch

Choose BCFB5

Choose BCFB5 when the drawing calls for a 20 mm cut and a 1/2 inch shank. Check the planned recess width, depth, collet engagement and machine clearance before setup. The public listing does not state the cutting height, overall length, insert count or a recommended speed.

Compare the BCFB series

Model	Flutes	Listed cut	Shank
BCFB4	2	20 mm	1/4 inch
BCFB5	2	20 mm	1/2 inch
BCFB6	2	30 mm	1/2 inch
BCFB7	2	40 mm	1/2 inch

BCFB4 and BCFB5 share the listed 20 mm cut and differ by shank size. BCFB6 and BCFB7 use a 1/2 inch shank with listed 30 mm and 40 mm cuts. Select the model from the required cut and holder size.

Setup and test cut

Confirm that the router or spindle accepts the listed shank and provides the required collet engagement.
Check the planned cut width, depth, workholding and base clearance before starting the machine.
Use the machine and cutter supplier limits for speed, feed and cutting depth because this listing does not publish those values.
Make a shallow test cut in matching scrap, then check the recess size, flatness, edge and chip clearance.

Before you order

Compare the listed sizes in the bottom cleaning router bit category. Email sales@bitsrouter.com with the router or spindle model, collet size, required cut, work material and quantity if you need a compatibility check.
