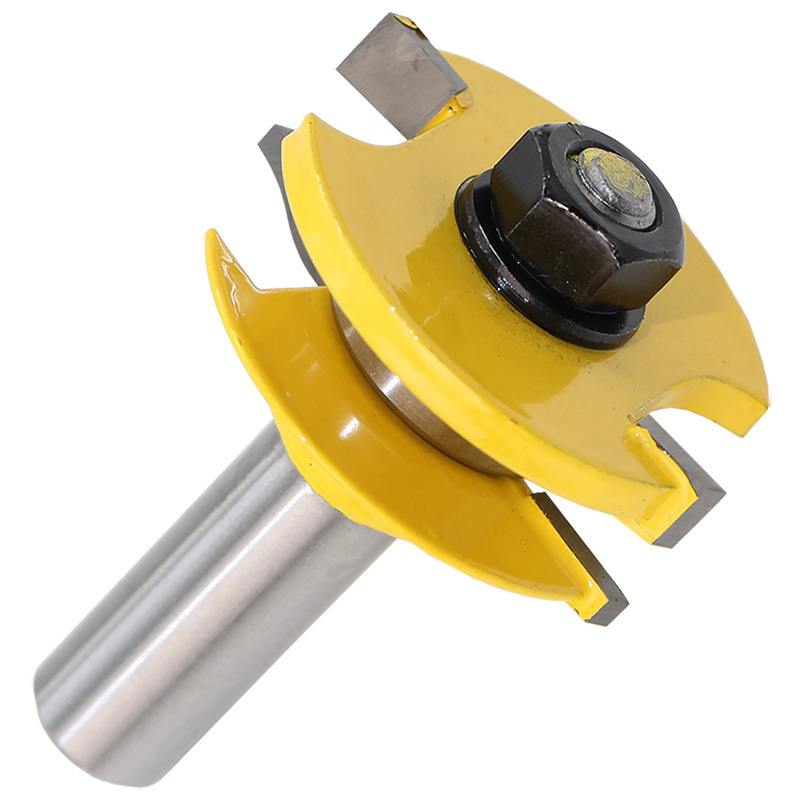

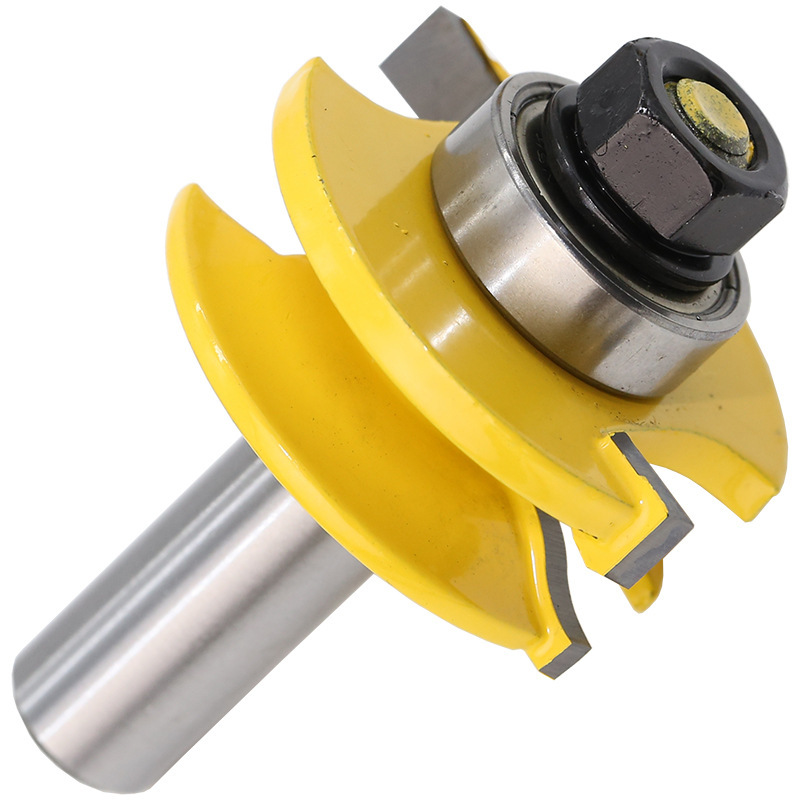

TR5192 – Cabinet Door Router Bit Set (1/2″ and 12mm Shanks)
Price range: $19.65 through $37.12
TR5192 cabinet door router bit set with 1/2″ and 12mm shanks. Ideal for woodworking stile and rail joints, creating strong cabinet door frames with smooth and precise cuts.
Cabinet Door / Stile and Rail Router Bit Set for Woodworking (1/2″ and 12mm Shanks)
Precision router bit for cabinet doors, stile & rail profiling, and clean decorative edges.
45# steel body with heat-resistant PTFE (Teflon) coating and sealed bearing (where applicable) helps ensure smooth, accurate cuts in solid wood, MDF, and plywood. Recommended 18,000–24,000 RPM and 8–12 m/min (~26–39 ft/min) feed.
Features
- Heat-resistant PTFE (Teflon) coating helps reduce resin build-up
- ±0.003″ manufacturing tolerance (≈ ±0.08 mm) for consistent accuracy
- Sealed, pre-lubricated bearing (where applicable)
- Robust 45# steel body for stability
- Clean profiling on solid wood, MDF, plywood, and more
Specifications
- Name: Cabinet door router bit
- Item: 12 mm / 12.7 mm (1/2″) Shank Router Bit
- Material: 45# steel
- Shank Diameter: 12 mm / 12.7 mm
- Compatible Materials: Solid wood, particle board, MDF, plywood, and other wood composites
- Machines: Handheld/trim router, engraving machine, CNC router
- Recommended Feed: 8–12 m/min (~26–39 ft/min)
- Recommended Spindle Speed: 18,000–24,000 RPM
- Tolerance: ±0.003″ (≈ ±0.08 mm)
- Bearing: Sealed & pre-lubricated (where applicable)
Package Includes
- 1 × router bit
Notes
- Packaging or label color may vary slightly depending on stock.
- Manual measurement tolerance: ±1–3 mm.
- Product color may vary slightly from photos due to lighting and display settings.
Reference Data
| Machine | Speed | Type | Notes |
|---|---|---|---|
| Trim router | 10,000–30,000 rpm | Electric router | Typical speed settings: 1st 9,000; 2nd 12,000; 3rd 15,000; 4th 19,000; 5th 23,000 rpm |
| Vertical milling router | 12,000–24,000 rpm | CNC engraving machine | Variable frequency up to 18,000 rpm |
| Diameter / Cutting Height (mm) | Max Speed (RPM) | Max Feed (mm/min) |
|---|---|---|
| ≤ 25 | 24,000 | 5,000 |
| 25.1 – 35 | 18,000 | 4,000 |
| 35.1 – 50 | 16,000 | 3,500 |
| 50.1 – 60 | 14,000 | 3,000 |
| 60.1 – 80 | 12,000 | 2,500 |
| ≥ 80 | 10,000 | 2,000 |

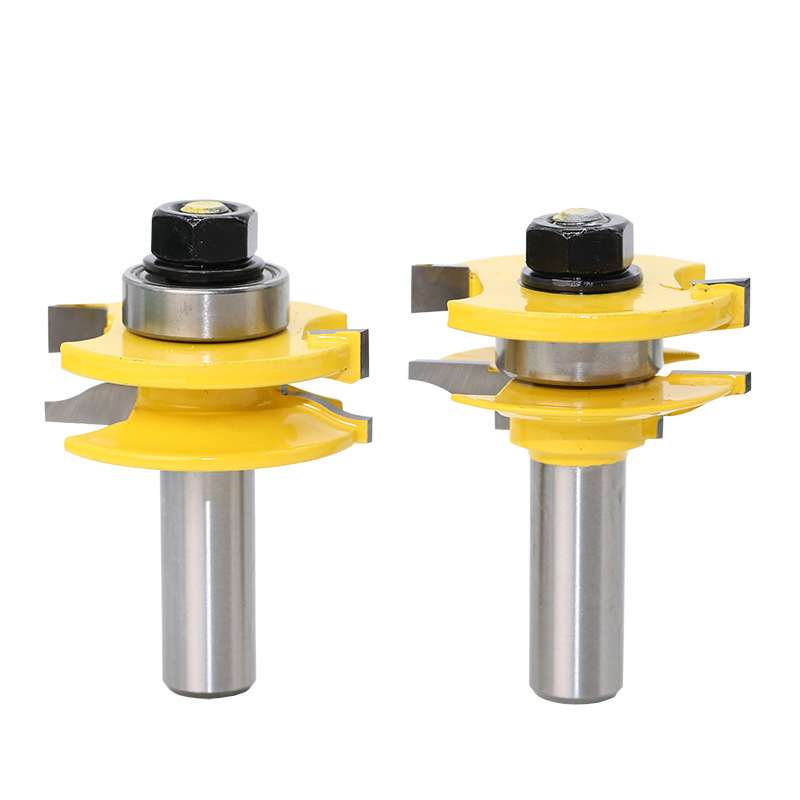

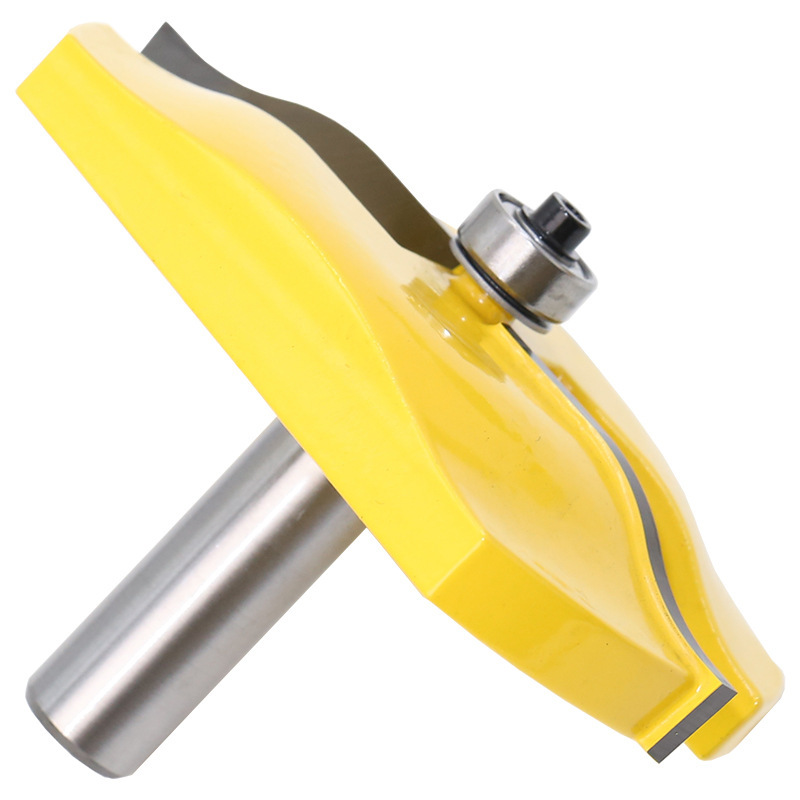

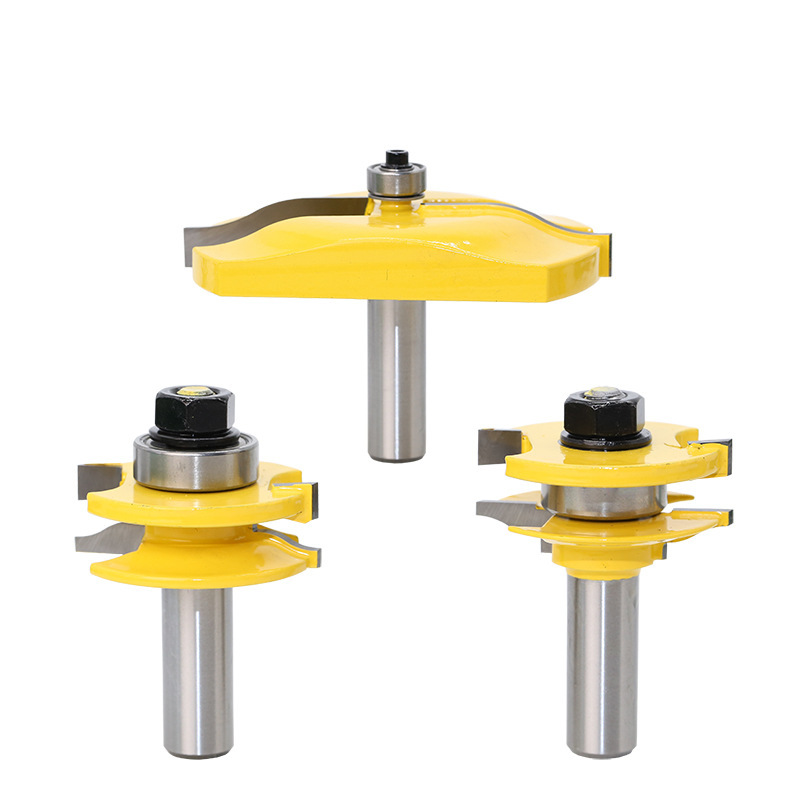

| type | 1/2" shank – 3-piece set for small mortise & large door plate bits, 12mm shank – 3-piece set for small mortise & large door plate bits, 1/2" shank – 2-piece small mortise bit set, 12mm shank – 2-piece small mortise bit set, 1/2" shank – 3-piece large door opener set, 1/2" shank – Door panel bit |
|---|
