RCE5 R10 Fillet Cutterhead, 35 mm Bore, 20 mm Wood Thickness
$62.00

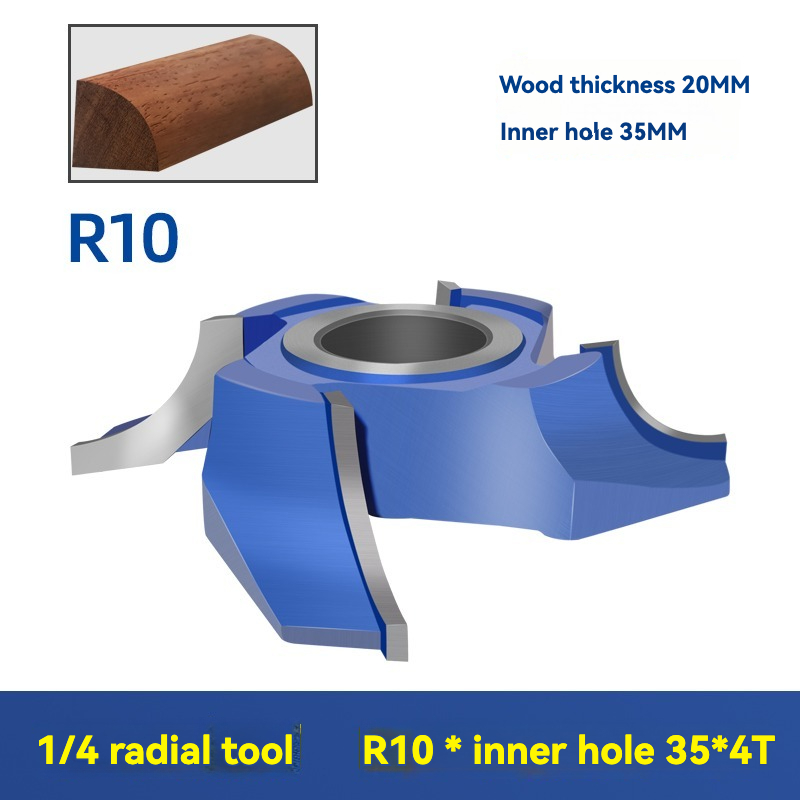

RCE5 is an R10 four-tooth fillet cutterhead. Its image lists a 35 mm inner hole and 20 mm wood thickness.

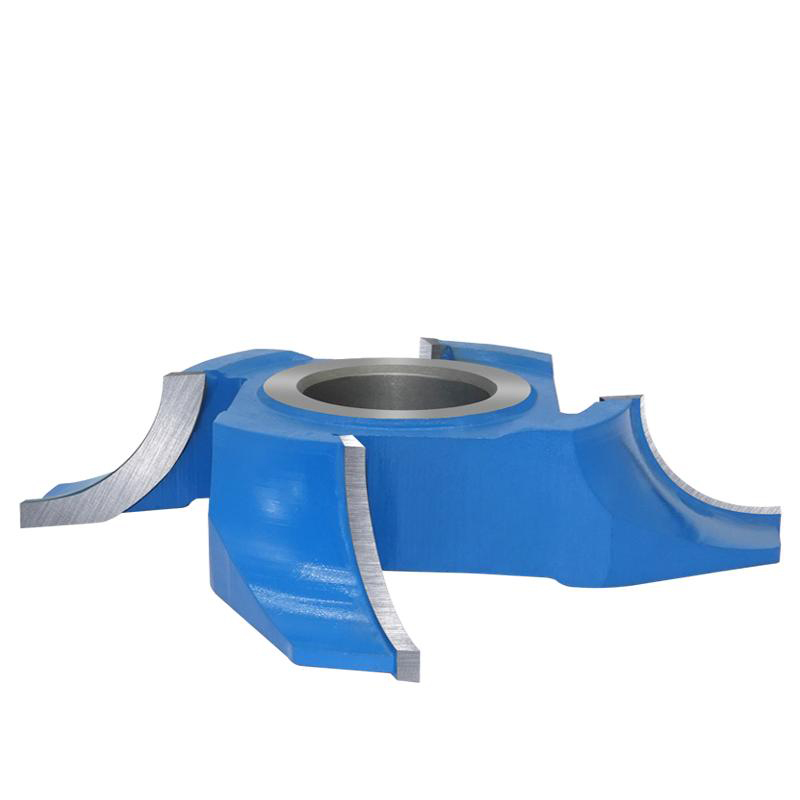

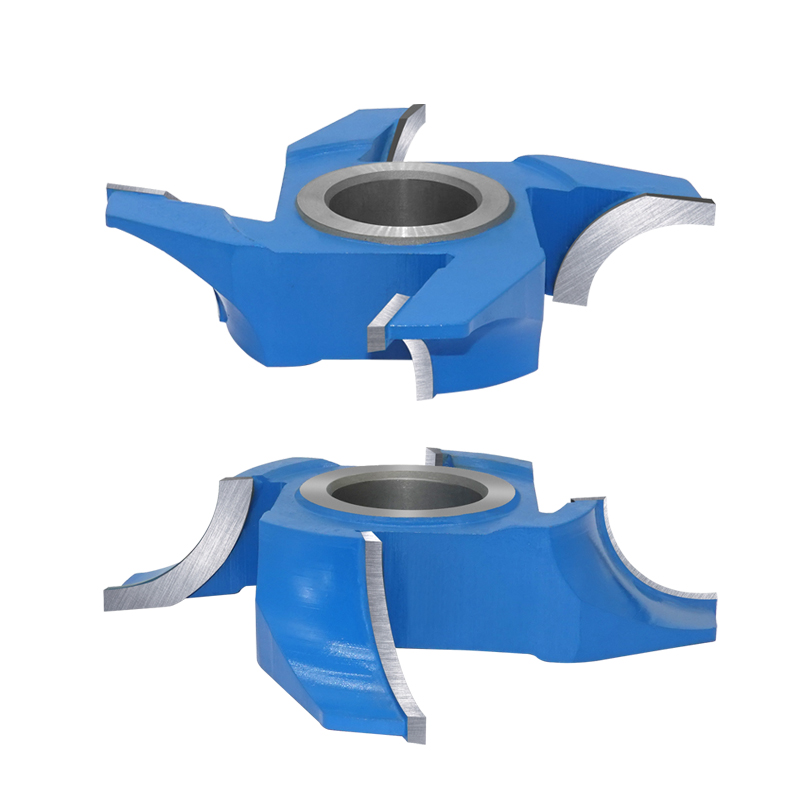

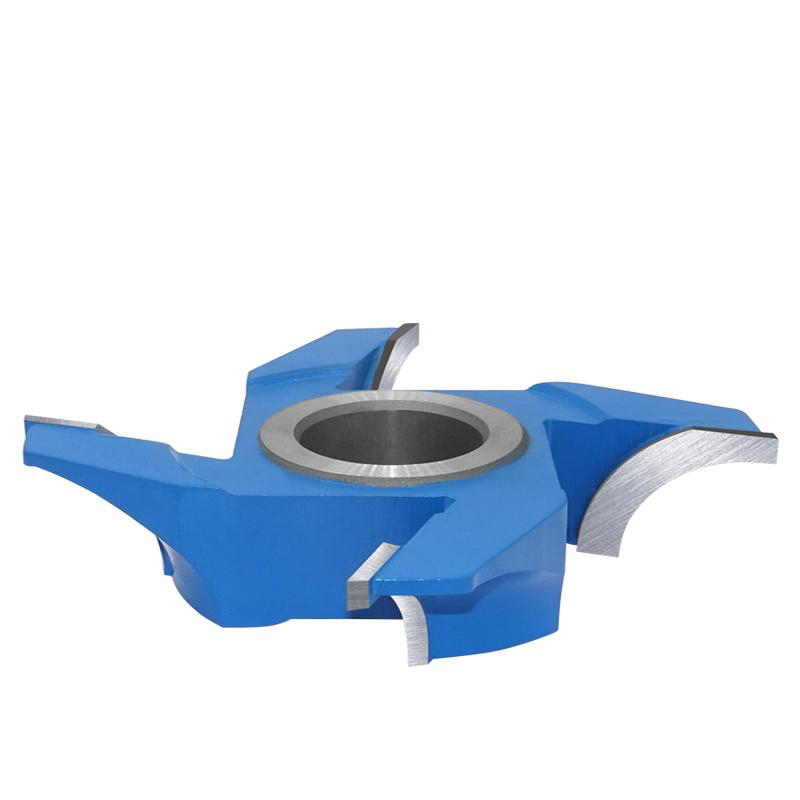

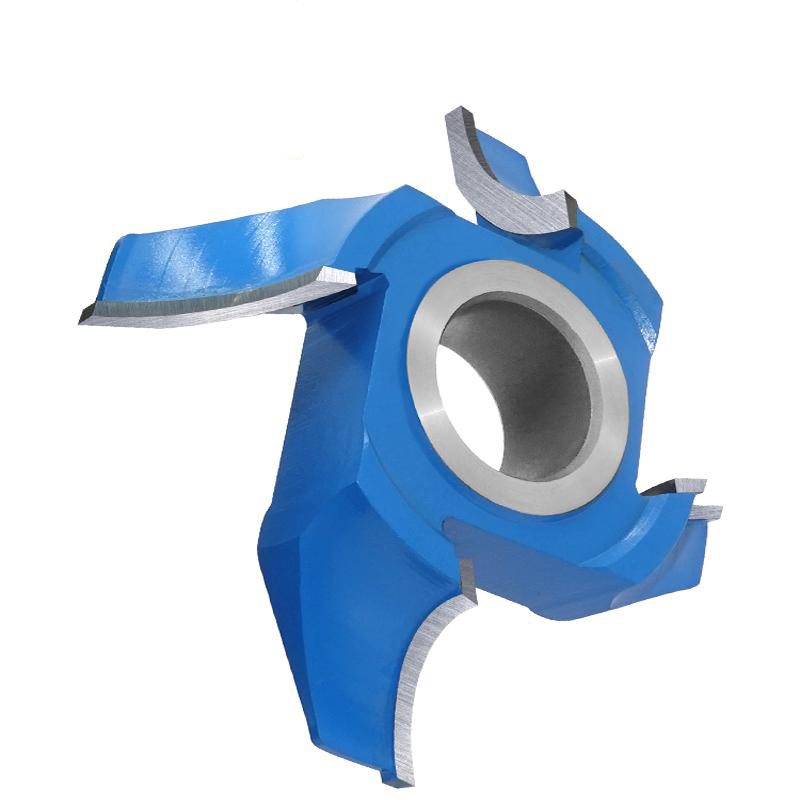

RCE5 is a four-tooth fillet cutterhead with an R10 profile. The product option gives a 20 mm wood thickness. Its image labels a 35 mm inner hole and shows four radial cutting edges. The listing does not give a cutterhead diameter or a machine compatibility chart. Confirm the bore, clearance and target profile against the spindle documentation before use.
Specifications
| Product type | Four-tooth fillet cutterhead |
|---|---|
| Profile radius | R10 |
| Wood thickness | 20 mm (image label) |
| Inner hole | 35 mm (image label) |
| Cutting teeth | Four |
| Profile wording | Image says "1/4 radial tool" |
Check the bore and profile before fitting
The product option calls this a 1/4 fillet cutter, while the image separately labels a 35 mm inner hole. The page does not specify a 1/4-inch shank. Match the bore to the spindle arbor and retention system. Then confirm the R profile and listed wood thickness on a test piece.
Before using the cutterhead
- Compare the R10 profile and 20 mm wood-thickness label with the workpiece.
- Check that the 35 mm bore matches the spindle arbor and retention hardware.
- Confirm cutterhead clearance and the allowed operating speed in the machine documentation.
- Make a test cut on scrap stock and inspect the profile before cutting finished material.
Listing limits
The page does not state the full cutterhead diameter, knife material, feed rate, operating speed or compatible spindle models. The image gives a 35 mm inner hole, but that alone does not confirm arbor or retainer fit. Verify the complete setup with the machine and cutterhead documentation.
Product gallery
Related product: RCE6 R12.5 Fillet Cutterhead, 35 mm Bore, 25 mm Wood Thickness.
| type | R10 (wood thickness 20mm)-End mill 1/4 fillet cutter |
|---|
