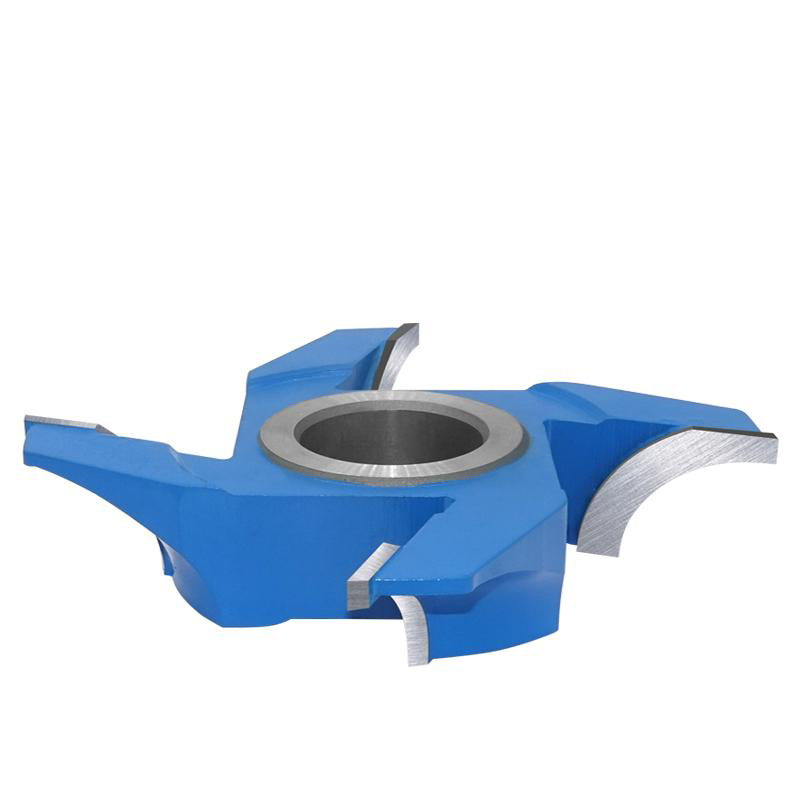

RCE10 blue four-tooth fillet cutterhead with center bore viewed from the side
RCE10 four radial cutting edges around the 35 mm cutterhead bore
RCE10 blue fillet cutterhead shown from two angles

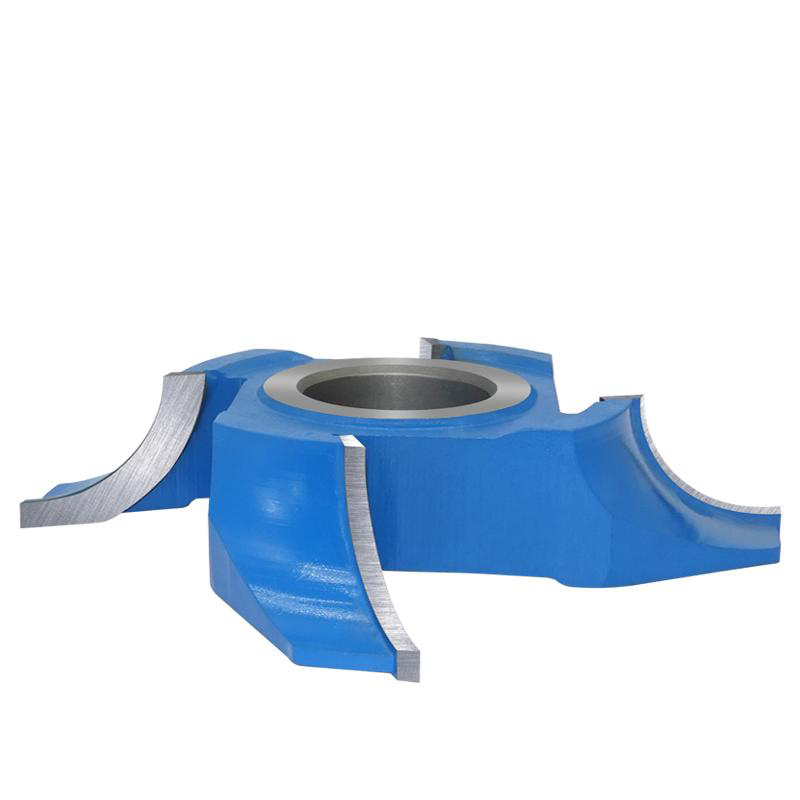

RCE10 blue cutterhead with four curved profile knives and center bore
RCE10 R17.5 fillet cutterhead with 35 mm inner hole and 35 mm wood thickness
RCE10 blue four-tooth fillet cutterhead with center bore viewed from the side
RCE10 four radial cutting edges around the 35 mm cutterhead bore
RCE10 blue fillet cutterhead shown from two angles
RCE10 blue cutterhead with four curved profile knives and center bore

RCE10 R17.5 Fillet Cutterhead, 35 mm Bore, 35 mm Wood Thickness

$98.92

RCE10 is an R17.5 four-tooth fillet cutterhead. Its image lists a 35 mm inner hole and 35 mm wood thickness.

SKU: RCE10 Category:

RCE10 is a four-tooth fillet cutterhead with an R17.5 profile. The product option gives a 35 mm wood thickness. Its image labels a 35 mm inner hole and shows four radial cutting edges. The listing does not give a cutterhead diameter or a machine compatibility chart. Confirm the bore, clearance and target profile against the spindle documentation before use.

Specifications

Product typeFour-tooth fillet cutterhead
Profile radiusR17.5
Wood thickness35 mm (image label)
Inner hole35 mm (image label)
Cutting teethFour
Profile wordingImage says "1/4 radial tool"

Check the bore and profile before fitting

The product option calls this a 1/4 fillet cutter, while the image separately labels a 35 mm inner hole. The page does not specify a 1/4-inch shank. Match the bore to the spindle arbor and retention system. Then confirm the R profile and listed wood thickness on a test piece.

Before using the cutterhead

  1. Compare the R17.5 profile and 35 mm wood-thickness label with the workpiece.
  2. Check that the 35 mm bore matches the spindle arbor and retention hardware.
  3. Confirm cutterhead clearance and the allowed operating speed in the machine documentation.
  4. Make a test cut on scrap stock and inspect the profile before cutting finished material.

Listing limits

The page does not state the full cutterhead diameter, knife material, feed rate, operating speed or compatible spindle models. The image gives a 35 mm inner hole, but that alone does not confirm arbor or retainer fit. Verify the complete setup with the machine and cutterhead documentation.

Product gallery

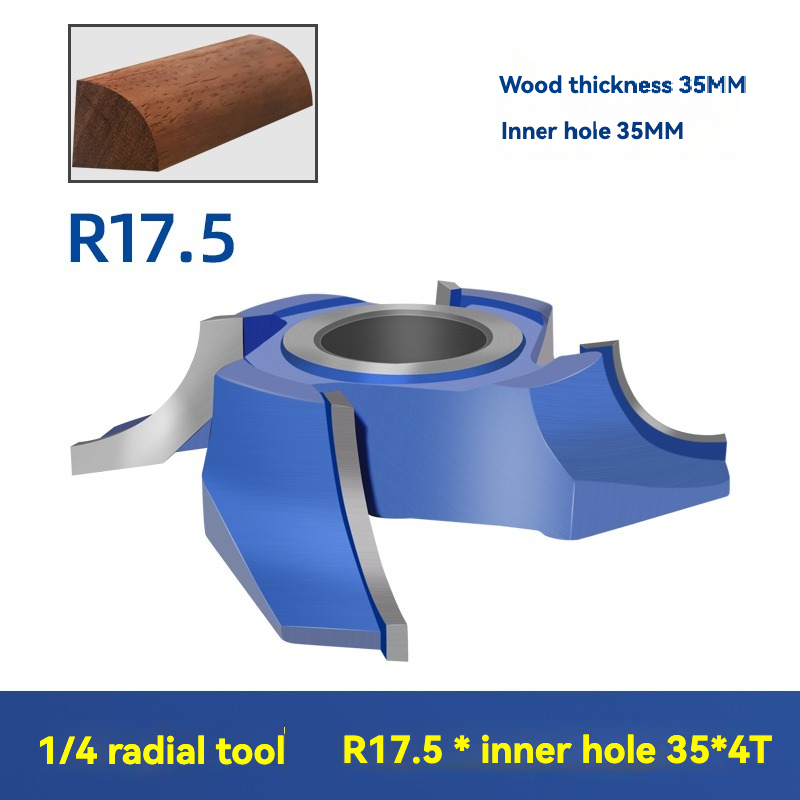

RCE10 R17.5 fillet cutterhead with 35 mm inner hole and 35 mm wood thickness
Radius and bore labelsThe image labels R17.5, a 35 mm inner hole and 35 mm wood thickness.

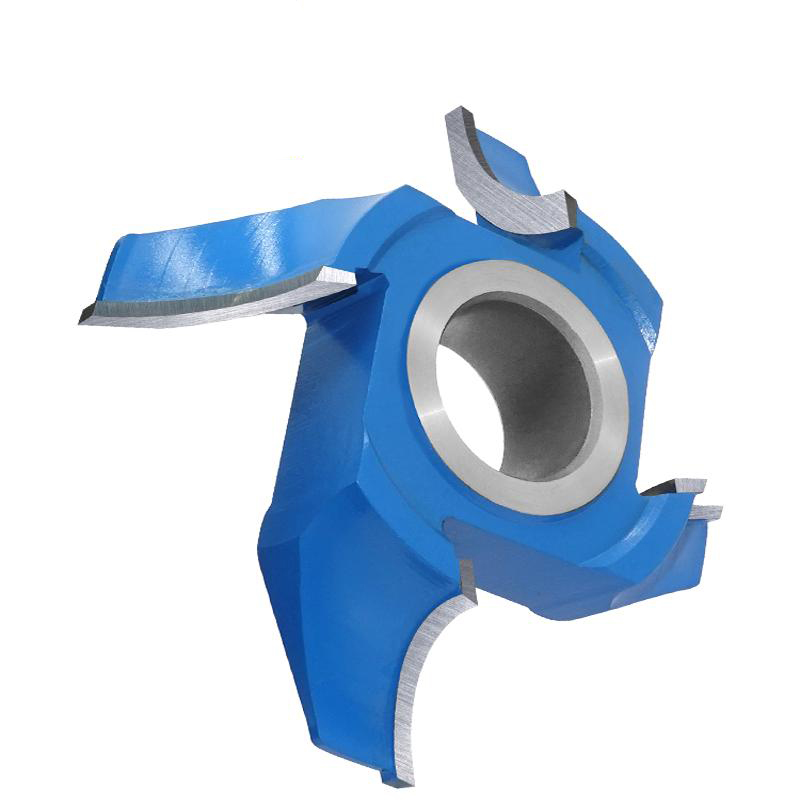

RCE10 four radial cutting edges around the 35 mm cutterhead bore
Cutterhead viewed from aboveThis angle shows the center bore and four radial cutting edges.

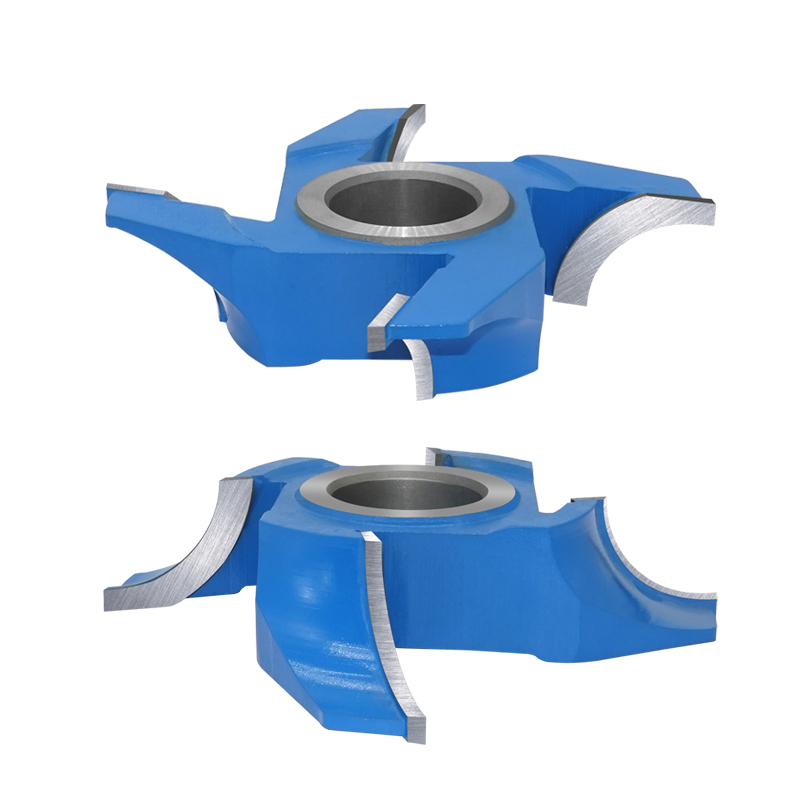

RCE10 blue cutterhead with four curved profile knives and center bore
Cutterhead from two anglesThe gallery shows the same blue cutterhead from side and top views.

Related product: RCE11 R18 Fillet Cutterhead, 35 mm Bore, 36 mm Wood Thickness.

type

R17.5 (wood thickness 35mm)-End mill 1/4 fillet cutter
