MCRB7 Hinge Mortising Router Bit, 28 mm, 1/2 in Shank
$24.15
MCRB7 has a 28 mm hinge cutter and a listed 1/2-inch shank. Check the hinge, template and holder fit before cutting.

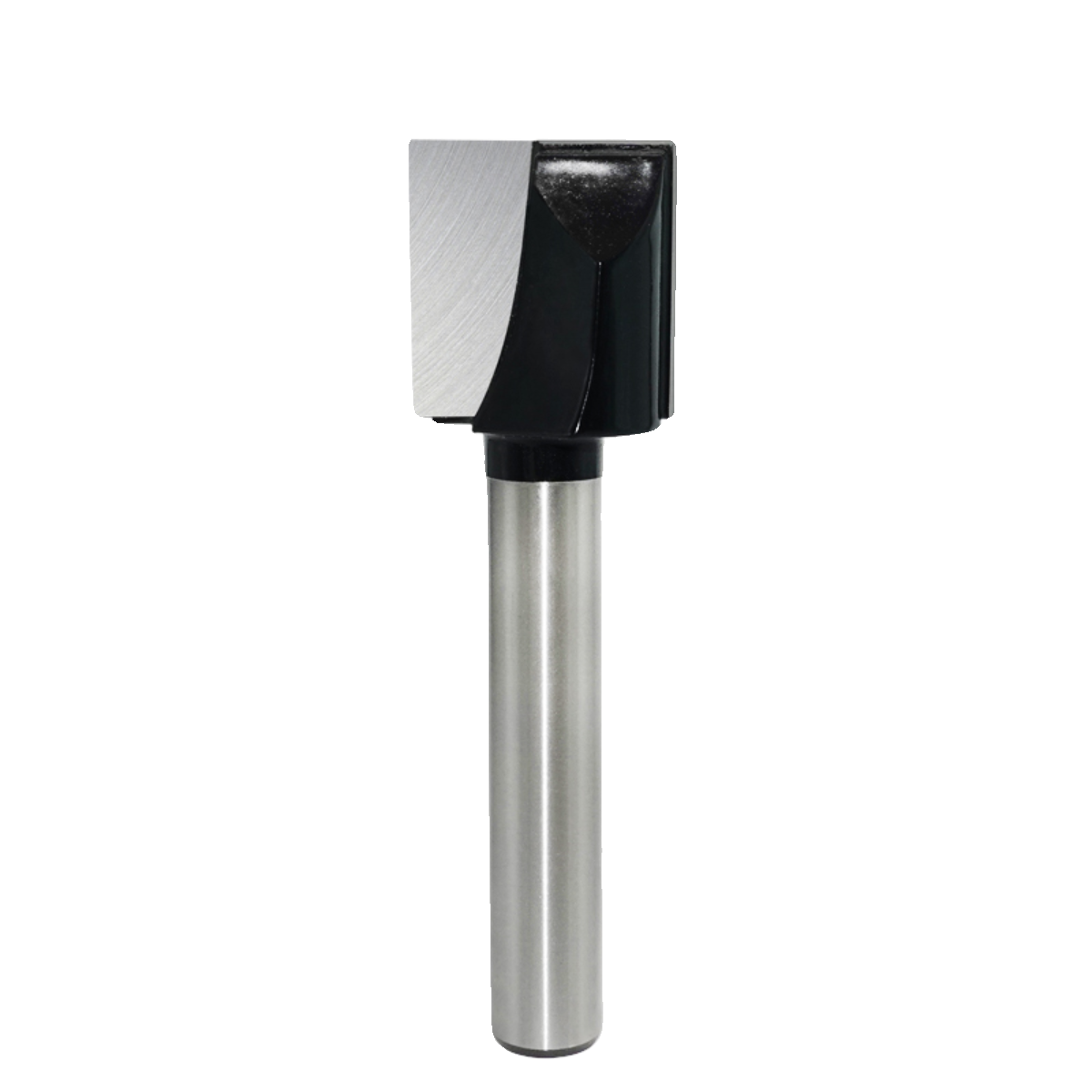

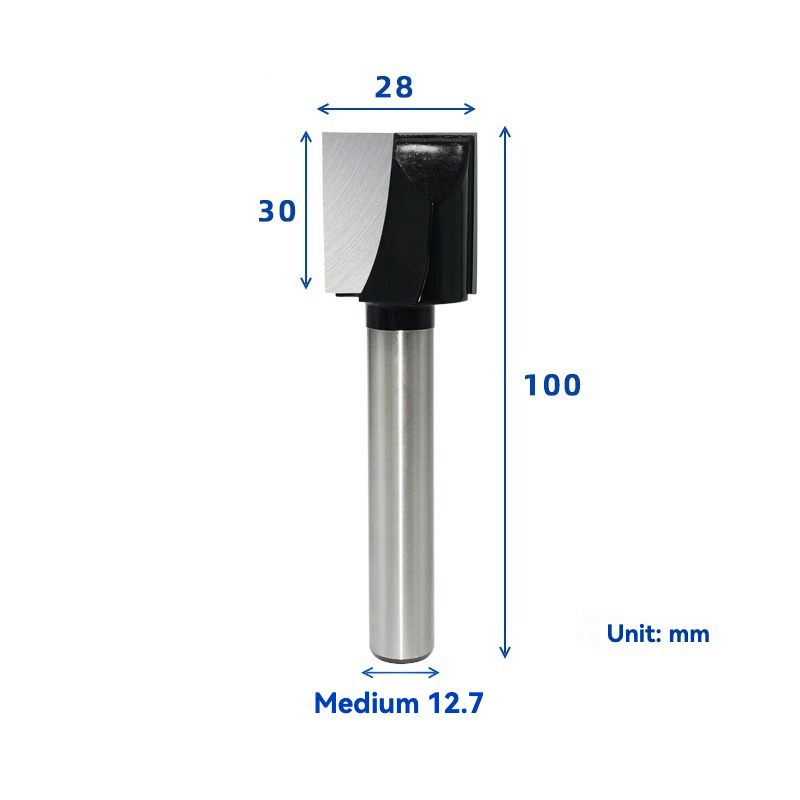

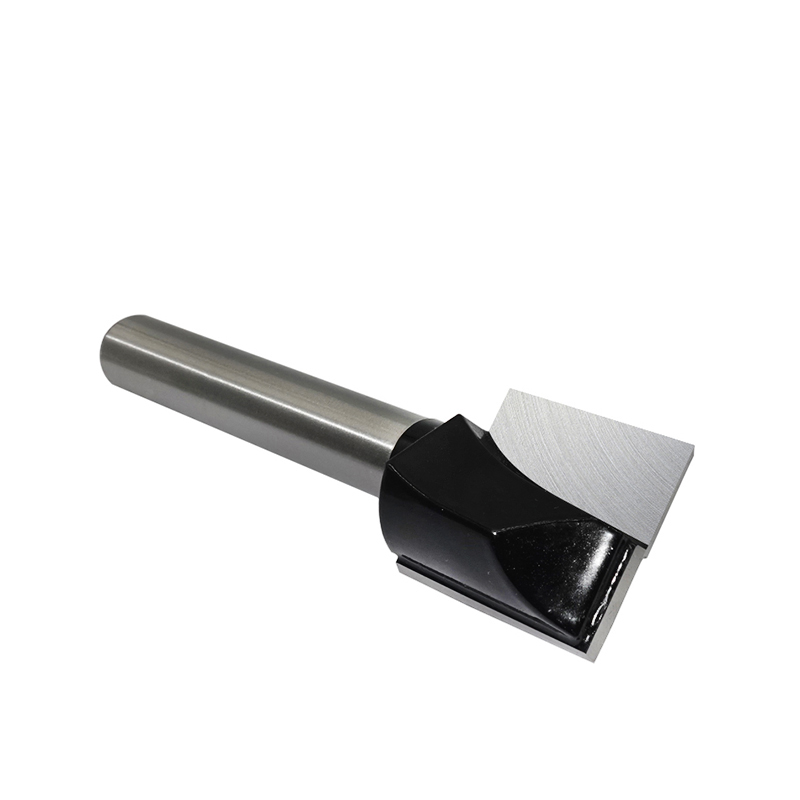

MCRB7 is listed as a hinge mortising router bit with a 28 mm cutter and a 1/2-inch shank. The gallery drawing labels a 28 x 30 mm cutter head, 100 mm overall length and a medium 12.7 mm shank. Other views show the cutter from several angles. Match the drawing to the hinge and holder before setup.
Specifications
| Product type | Hinge mortising router bit |
|---|---|
| Cutting diameter | 28 mm, in the title and gallery drawing |
| Cutter head height | 30 mm, labelled in the gallery drawing |
| Overall length | 100 mm, labelled in the gallery drawing |
| Shank | 1/2 inch in title and option; drawing says medium 12.7 mm |
| Compatible hinge and template | Not specified in the product record |
Match the bit to the hinge and template
The title lists a 28 mm cutter and 1/2-inch shank. The gallery drawing labels a 30 mm head height, 100 mm overall length and medium 12.7 mm shank. Compare the cutter diameter with the hinge cup or mortise drawing and confirm the shank against the holder. Test the depth on scrap with the actual hardware.
Before routing a hinge recess
- Compare the 28 mm cutter diameter with the hinge specification.
- Check the template opening and desired mortise depth.
- Confirm that the holder accepts the listed 1/2-inch shank.
- Clamp an offcut and route a shallow test recess.
- Check hinge seating before routing a finished door or frame.
Listing limits
The page does not list a compatible hinge model, template size or material-specific cutting settings. The drawing provides cutter dimensions but does not replace a fit check with the actual hardware. Confirm the holder and required mortise depth before use.
Product gallery
Related category: Cabinet Door Router Bits.
| type | Three-dimensional hinge knife 1/2 * 28 * 100 |
|---|
