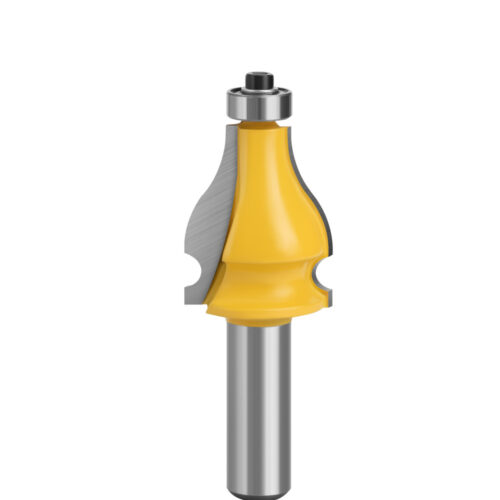

(TR2597)1/2 handle 12 handle bottle shaped armrest router bit
$11.79

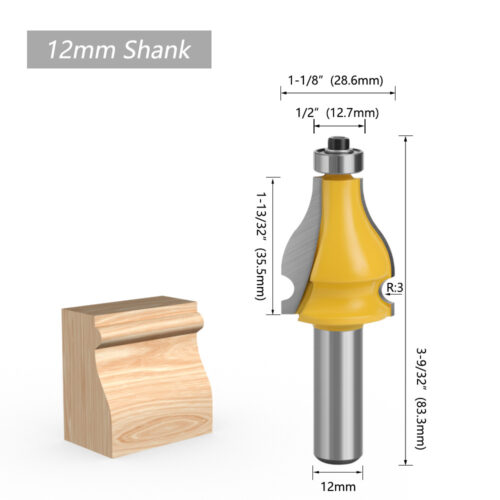

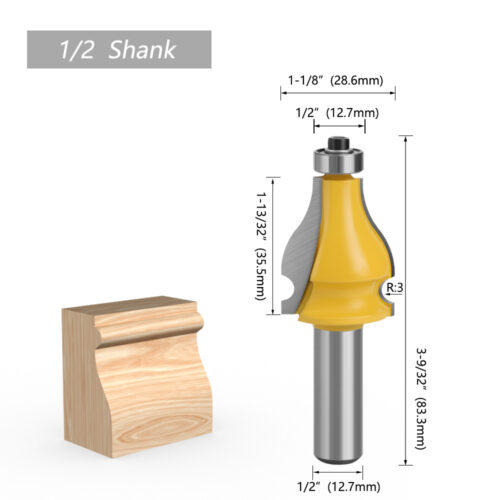

Bottle profile handrail cutter with a working length of 35.5mm and a top bearing for added precision. Perfect for shaping handrails and creating decorative profiles in woodworking projects.
| Name | bottle shaped armrest router bit |
| Item | 12mm” Shank Router Bit |
| Material | 45# steel |
| Features | High-temperature resistant & heat resistant Teflon coating |
| deviation | +/- .003″ tolerance |
| Bearing | Sealed lubricated bearings. |
| Shank Diameter | 12mm 12.7mm |
| Applicable material | Solid wood board, ecological board, MDF, plywood, MDF and other materials |
| Applicable equipment | Electric wood milling, engraving machine, trimming machine, hanging machine, CNC, etc. |
| Recommended parameters | Suggested feed speed 8~12m/min; Spindle revolution: 18000~24000RPM recommended |
Package Included:
- 1 piece x router bit
Note:
- The color you have chosen will be prioritized for shipment. However, if out of stock, alternative colors will be provided. We welcome you to carefully read and confirm this instruction when placing your order to ensure smooth delivery.
- Please note that due to manual measurement techniques, the measurement results may have a slight error of 1-3. Thank you for your understanding.
- Please note that due to differences in display and photos, the actual color of the product may differ slightly from the displayed image. Thank you for your understanding.
| Common machine speed | |||
| Trimming machine | 10000-30000 rpm | electric router | First gear 9000 rpm 2nd gear 12000 rpm 15000 rpm in 3rd gear 19000 rpm in 4th gear 5th gear 23000 rpm |
| Vertical washing machine | Low speed range 12000 rpm High speed 24000 rpm |
Automatic engraving machine | Variable frequency up to 18000 rpm |
| Diameter or cutting height MM | Maximum speed/minute | Maximum feed speed MM/min | |
| Below 25 | 24000 | 5000 | |
| 25.1-35 | 18000 | 4000 | |
| 35.1–50 | 16000 | 3500 | |
| 50.1-60 | 14000 | 3000 | |
| 60.1—80 | 12000 | 2500 | |
| Above 80 | 10000 | 2000 |
| type | 1/2X28.6, 12X28.6 |
|---|---|
| class_router |
