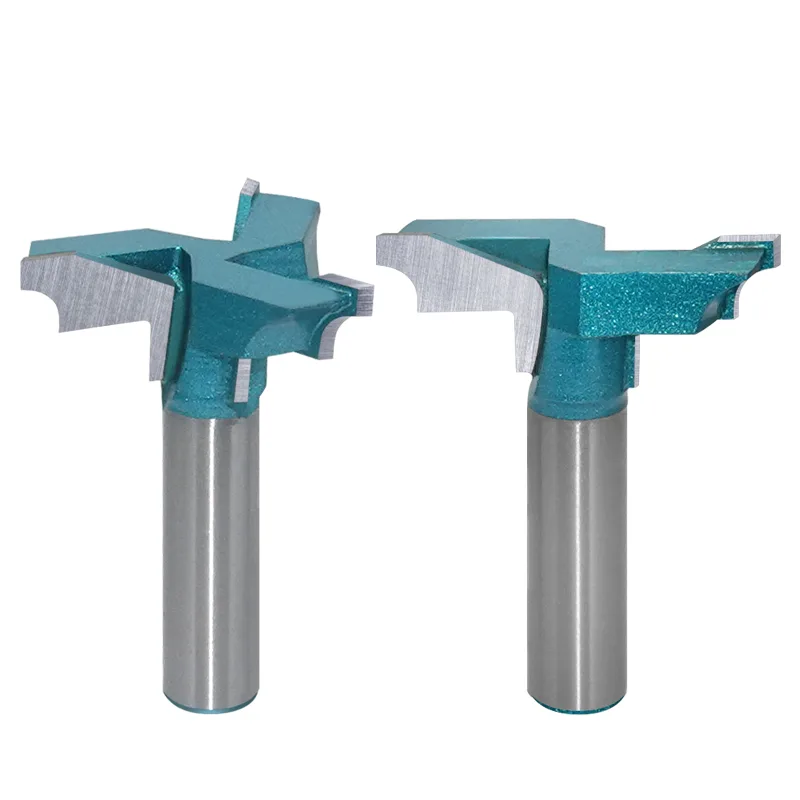

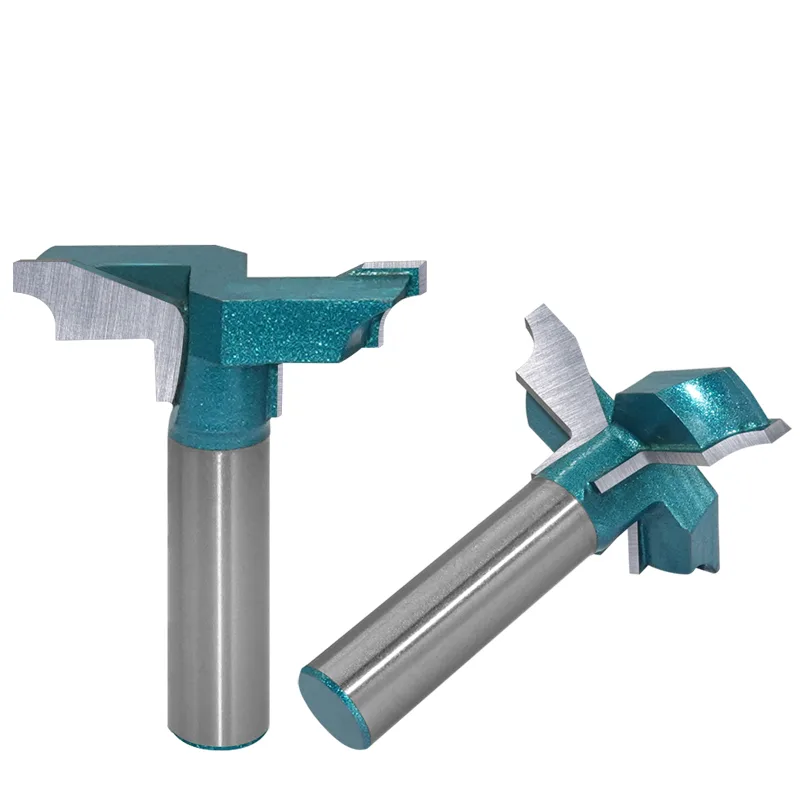

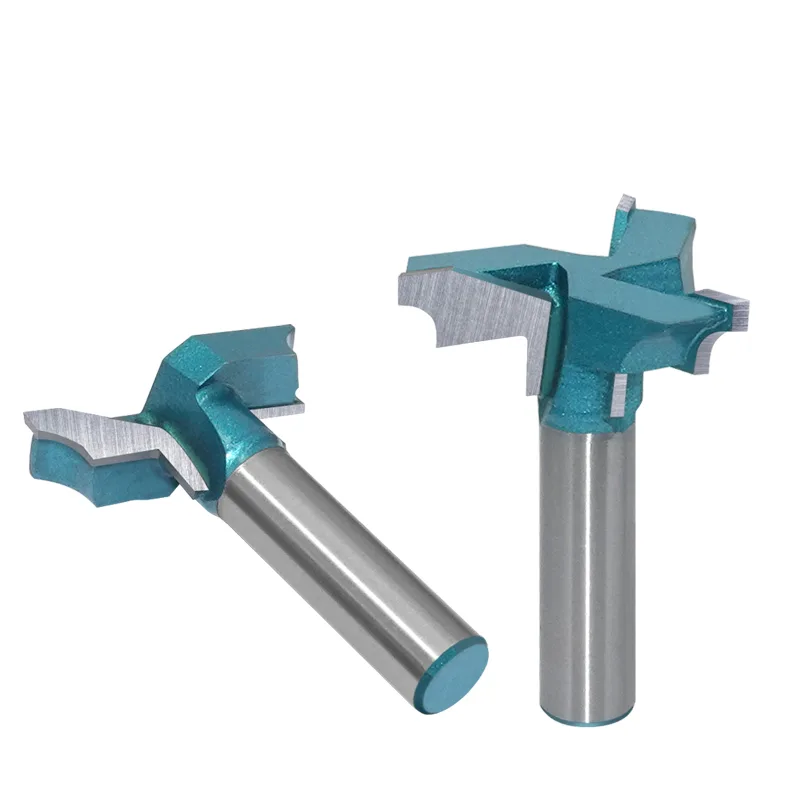

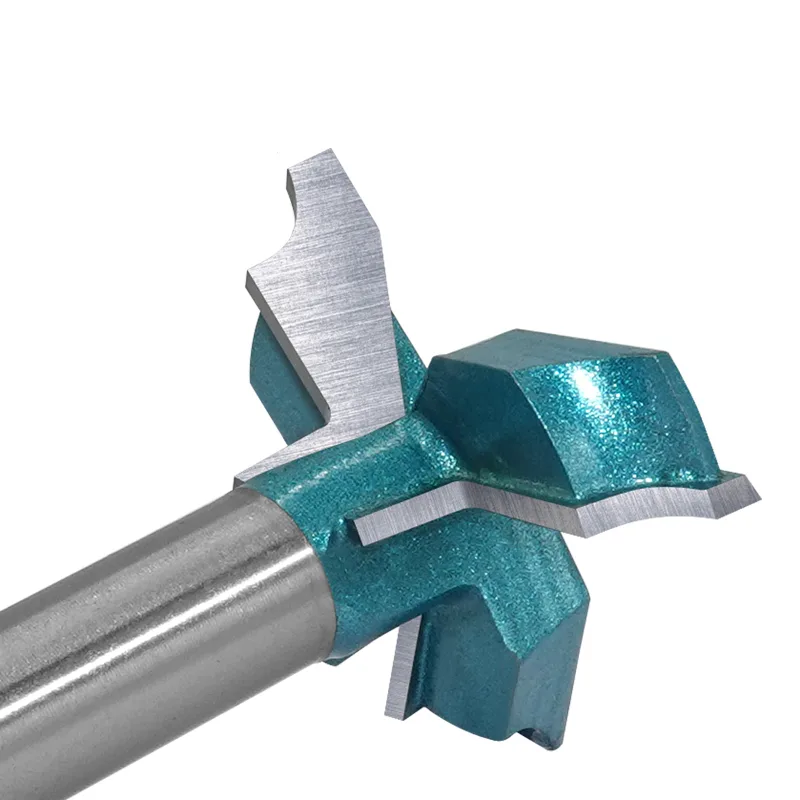

ASM2 – 3-Flute Arc Tenon Router Bit for Round Tables

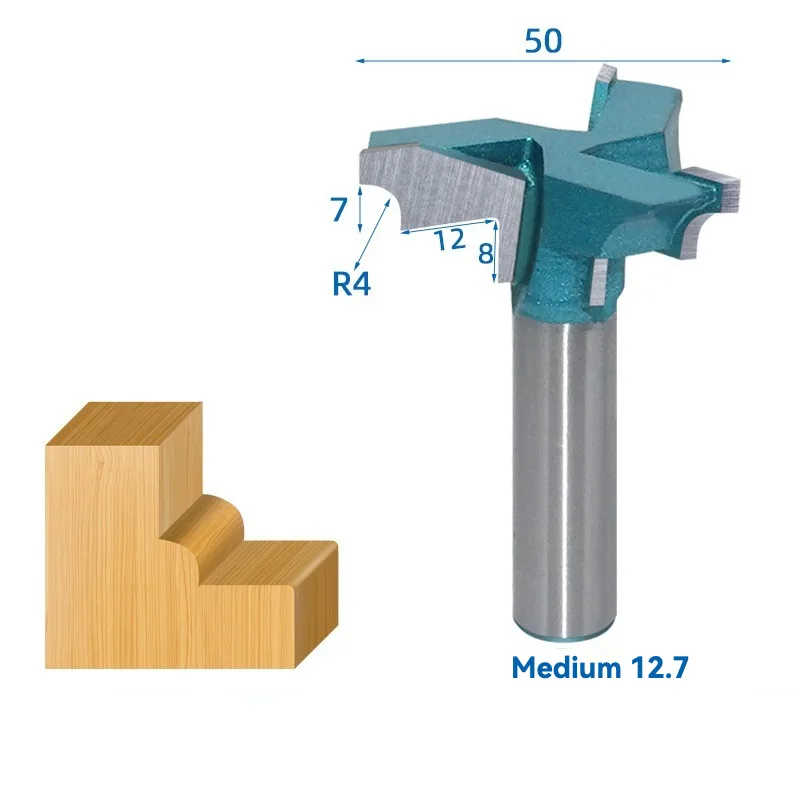

The ASM2 is a 3-flute arc tenon router bit listed for round-table mortise arc cutting. It has a 12.7 mm (1/2 inch) shank, a 50 mm cutting width and an R4 curvature. Use the arc dimensions in the joint drawing and a test piece to confirm the resulting fit.

Listed specifications

Match the bit to the joint

• Check that the 12.7 mm shank matches the router collet, CNC spindle or holder.
• Compare the R4 curvature and 50 mm cutting width with the arc or tenon geometry in the project drawing.
• Confirm the cutting depth, workpiece thickness and machine clearance before setting the tool height.
• Plan secure workholding for the curved or round-table component so it cannot move during the cut.

Test cut and safe use

Make a test cut in matching scrap and check the arc, depth and joint fit before machining the finished component. Use the machine maker’s speed, feed, guarding and cutter-installation instructions. Stop if the tool chatters, overheats or shows damage, and inspect the cutting edges before reuse.

Common questions

What is the ASM2 flute count?

ASM2 is the 3-flute version. Choose it only after checking the machine guidance and the required arc-joint setup.

What shank size is listed?

The listing specifies a 12.7 mm (1/2 inch) shank. Confirm your collet or holder size before ordering.

For other profile options, browse the replaceable insert profile cutter category. Send the machine, holder, material and joint drawing to sales@bitsrouter.com if you need a compatibility check.
