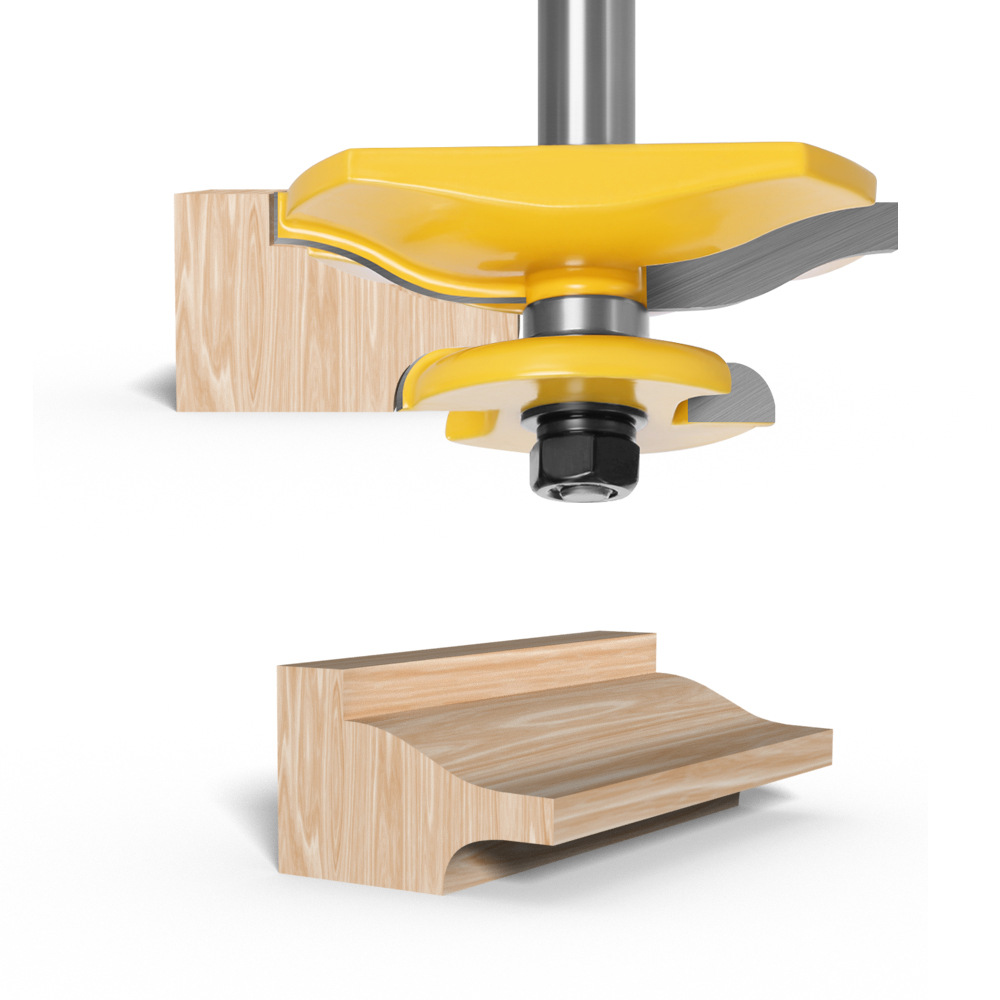

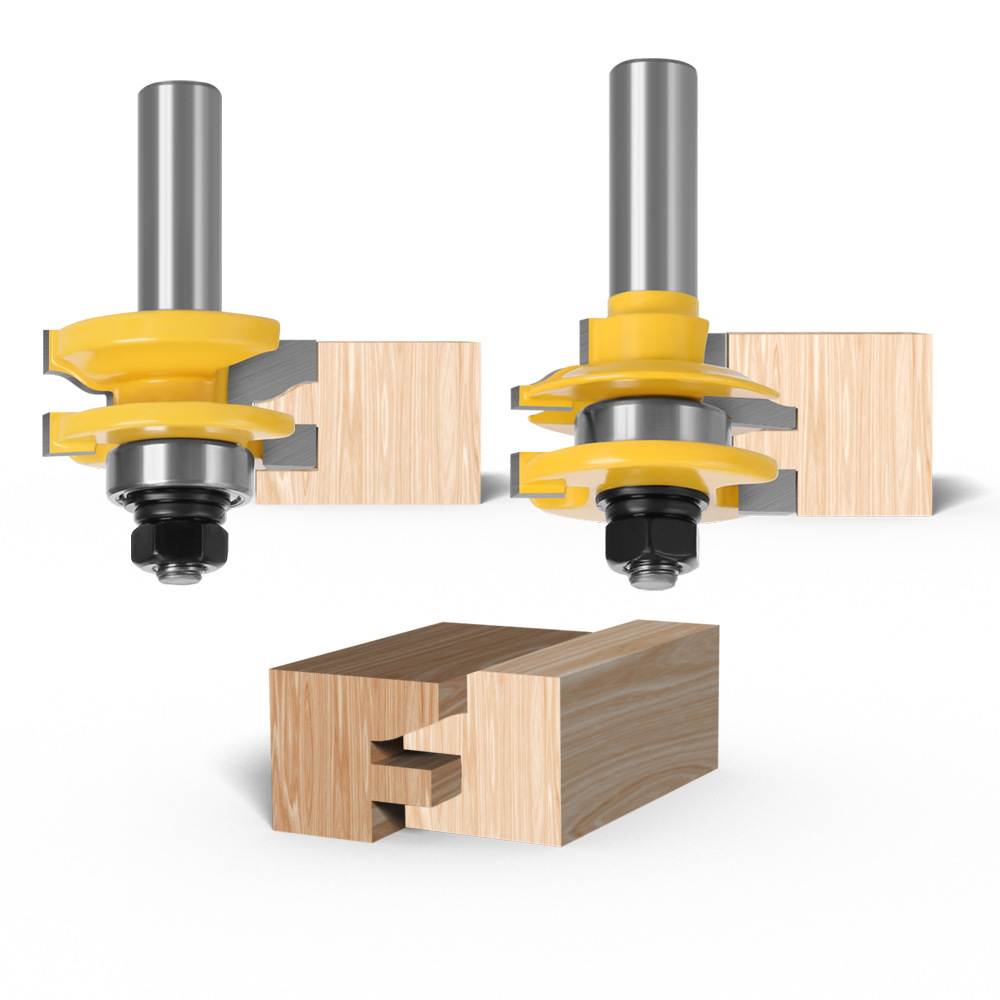

Cabinet Door / Stile and Rail Router Bits for Woodworking (1/2″ and 12mm Shanks)
High-precision bits for cabinet door profiling and slotting, featuring heat-resistant coating and sealed bearings. Compatible with trim routers, engraving machines, and CNC.






Features
- High-temperature & heat-resistant Teflon coating
- ±0.003″ tolerance for crisp, clean cuts
- Sealed, lubricated bearings for smooth operation
- Durable 45# steel construction
- Ideal for cabinet doors on solid wood, MDF, plywood, etc.
Specifications
- Name: Cabinet door router bits
- Item: 12mm Shank Router Bit
- Material: 45# steel
- Shank Diameter: 12mm / 12.7mm
- Applicable Materials: Solid wood, ecological board, MDF, plywood, etc.
- Applicable Equipment: Trim router, engraving machine, hand router, CNC, etc.
- Recommended Feed Speed: 8–12 m/min
- Recommended Spindle Speed: 18,000–24,000 RPM
- Tolerance: ±0.003″
- Bearings: Sealed & lubricated
Package Includes
- 1 × router bit
Notes
- Your preferred color will be shipped; substitutes may be provided if out of stock.
- Manual measurement may vary by 1–3 mm.
- Colors may differ slightly due to display settings and photography.
Reference Data
| Machine | Speed | Type | Notes |
|---|---|---|---|
| Trim router | 10,000–30,000 rpm | Electric router | 1st 9,000 rpm; 2nd 12,000 rpm; 3rd 15,000 rpm; 4th 19,000 rpm; 5th 23,000 rpm |
| Vertical milling router | 12,000–24,000 rpm | CNC engraving machine | Variable frequency up to 18,000 rpm |
| Diameter / Cutting Height (mm) | Max Speed (RPM) | Max Feed Speed (mm/min) |
|---|---|---|
| ≤ 25 | 24,000 | 5,000 |
| 25.1 – 35 | 18,000 | 4,000 |
| 35.1 – 50 | 16,000 | 3,500 |
| 50.1 – 60 | 14,000 | 3,000 |
| 60.1 – 80 | 12,000 | 2,500 |
| ≥ 80 | 10,000 | 2,000 |
