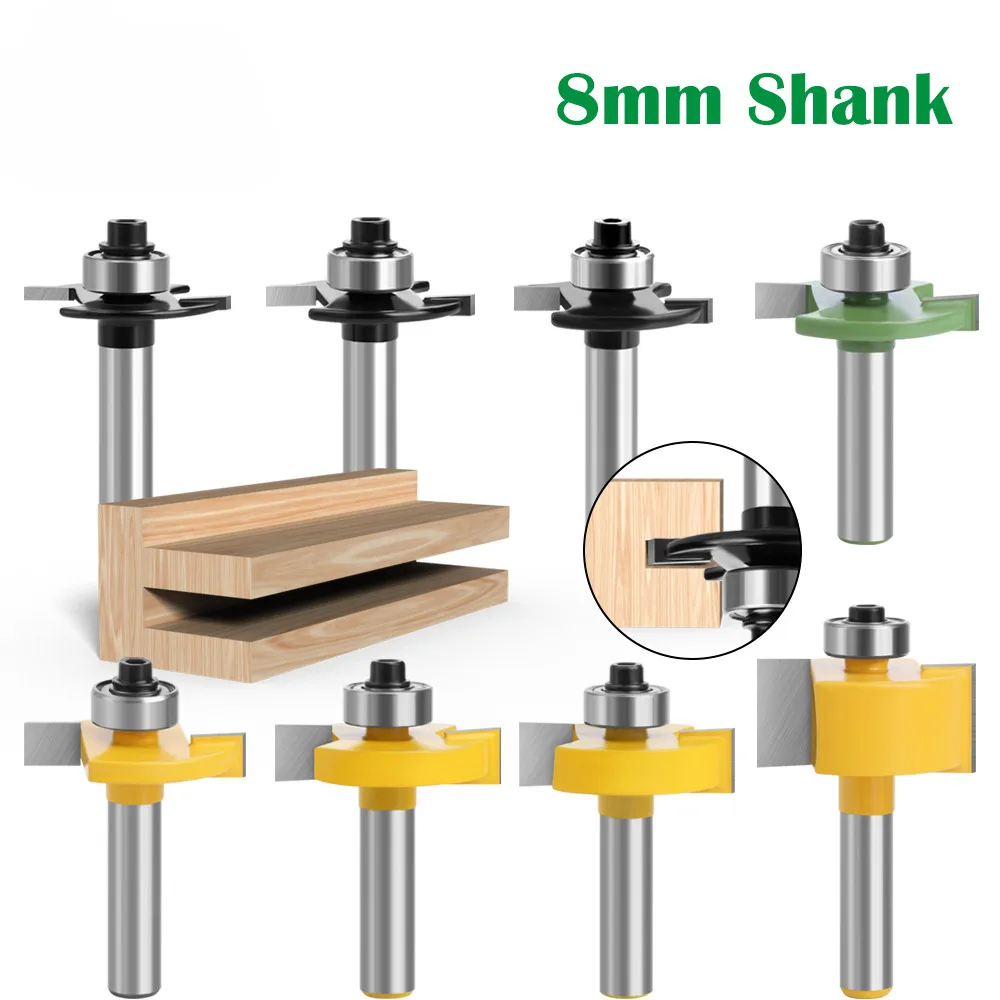

(RTE3909)8-handle ball T-shaped router bits
$2.40 – $23.14
T-shaped router bits are cutting tools used in woodworking for creating T-shaped grooves, channels, or slots in a workpiece. They are designed with a central shank that forms the vertical part of the T shape, while the horizontal part consists of one or more cutting edges.
| Name | ball T-shaped knife |
| Item | 8mm” Shank Router Bit |
| Material | 45# steel |
| Features | High-temperature resistant & heat resistant Teflon coating |
| deviation | +/- .003″ tolerance |
| Bearing | Sealed lubricated bearings. |
| Shank Diameter | 8mm |
| Applicable material | Solid wood board, ecological board, MDF, plywood, MDF and other materials |
| Applicable equipment | Electric wood milling, engraving machine, trimming machine, hanging machine, CNC, etc. |
| Recommended parameters | Suggested feed speed 8~12m/min; Spindle revolution: 18000~24000RPM recommended |
Features:
- 100%Brand new and high quality .
- Using for hand making a drawer or other woodworking.
- Industrial quality router bits .
- Solid hardened steel bodies with anti kickback design.
- Build-up & heat resistant Teflon coating.
- Hook & Shear Angles: High hook & shear angles allow
- Cutters to slice smoothly into stock producing clean, splinter free.
- Bearing: Totally enclosed & lubricated.
Specifications:
- Item:45 Degree Lock Miter Router Bit
- Material: 45# steel
- Carbide tip: YG6X
- Shank Diameter: 8mm
- Balance: +/- .003?? tolerance
- Body: Solid Hardened Steel
- Blade: Industrial grade micro grain carbide
- Cutter: CNC ground to a 600 grit, mirror-like finish
- Detaild specification, pls check following photos.
| Common machine speed | |||
| Trimming machine | 10000-30000 rpm | electric router | First gear 9000 rpm 2nd gear 12000 rpm 15000 rpm in 3rd gear 19000 rpm in 4th gear 5th gear 23000 rpm |
| Vertical washing machine | Low speed range 12000 rpm High speed 24000 rpm |
Automatic engraving machine | Variable frequency up to 18000 rpm |
| Diameter or cutting height MM | Maximum speed/minute | Maximum feed speed MM/min | |
| Below 25 | 24000 | 5000 | |
| 25.1-35 | 18000 | 4000 | |
| 35.1–50 | 16000 | 3500 | |
| 50.1-60 | 14000 | 3000 | |
| 60.1—80 | 12000 | 2500 | |
| Above 80 | 10000 | 2000 |
| type | 8X31X2, 8X31X3, 8X31X4, 8X31X5, 8X32X6.35, 8X32X7.96, 8X32X9.52, 8X32X16, 8PCS |
|---|---|
| class_router |
