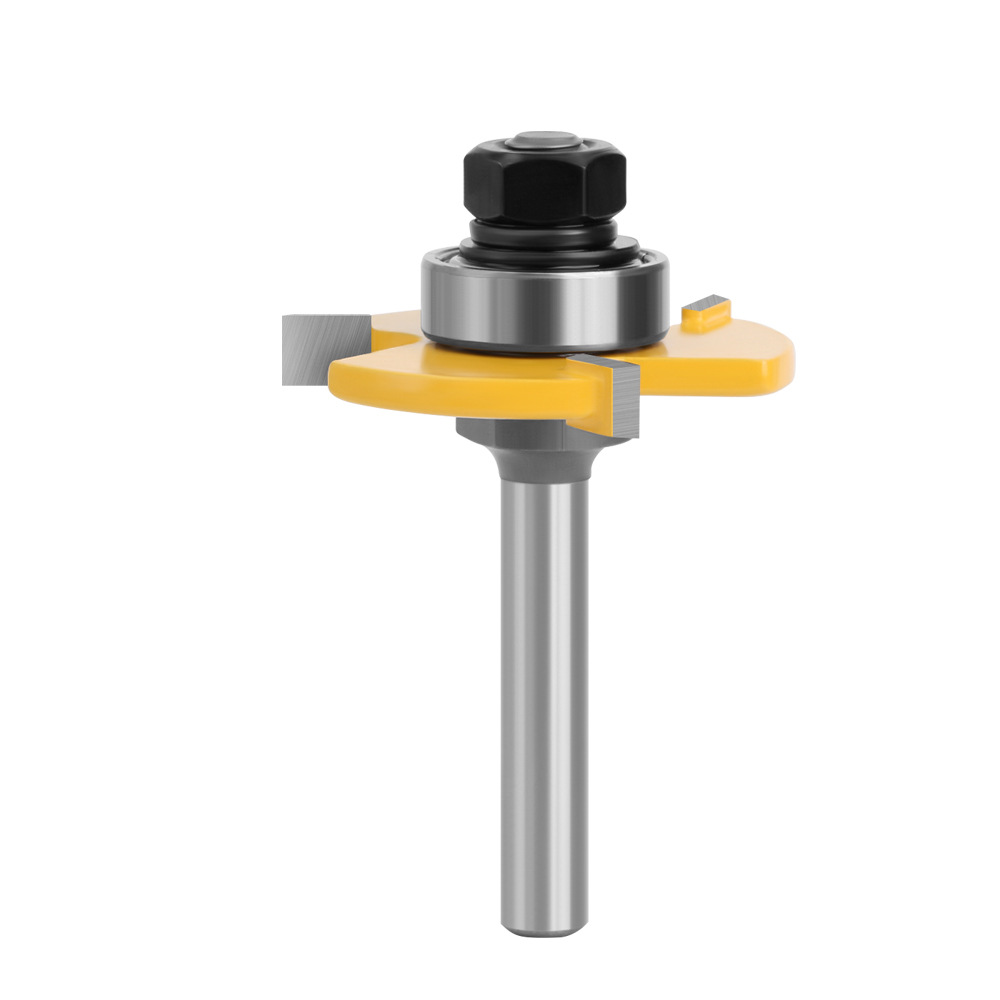

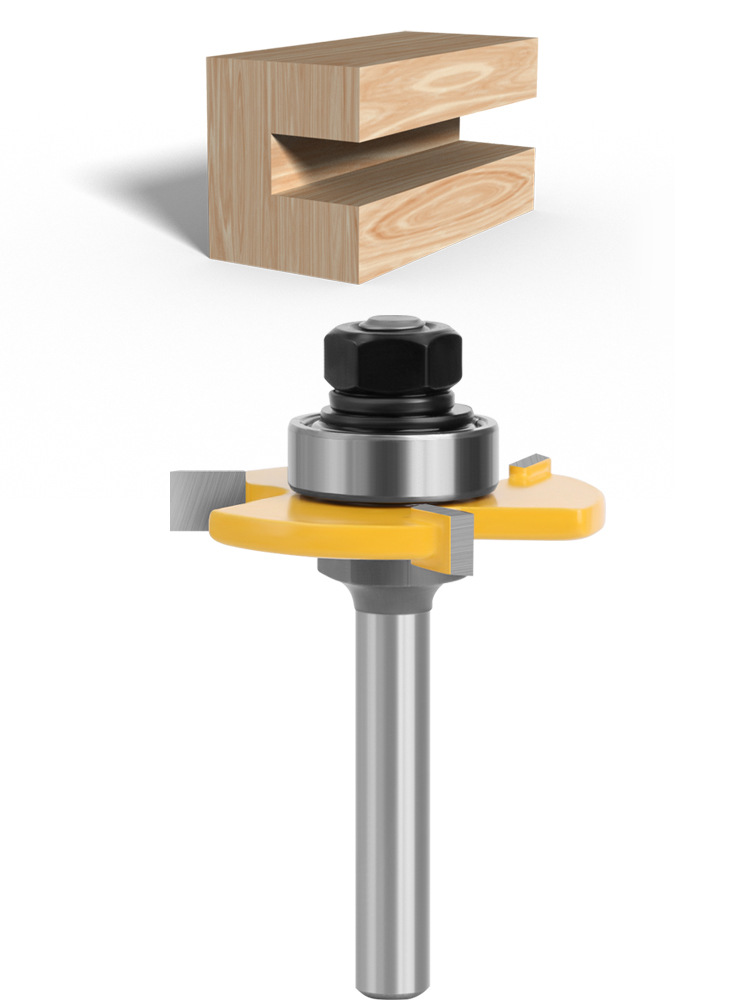

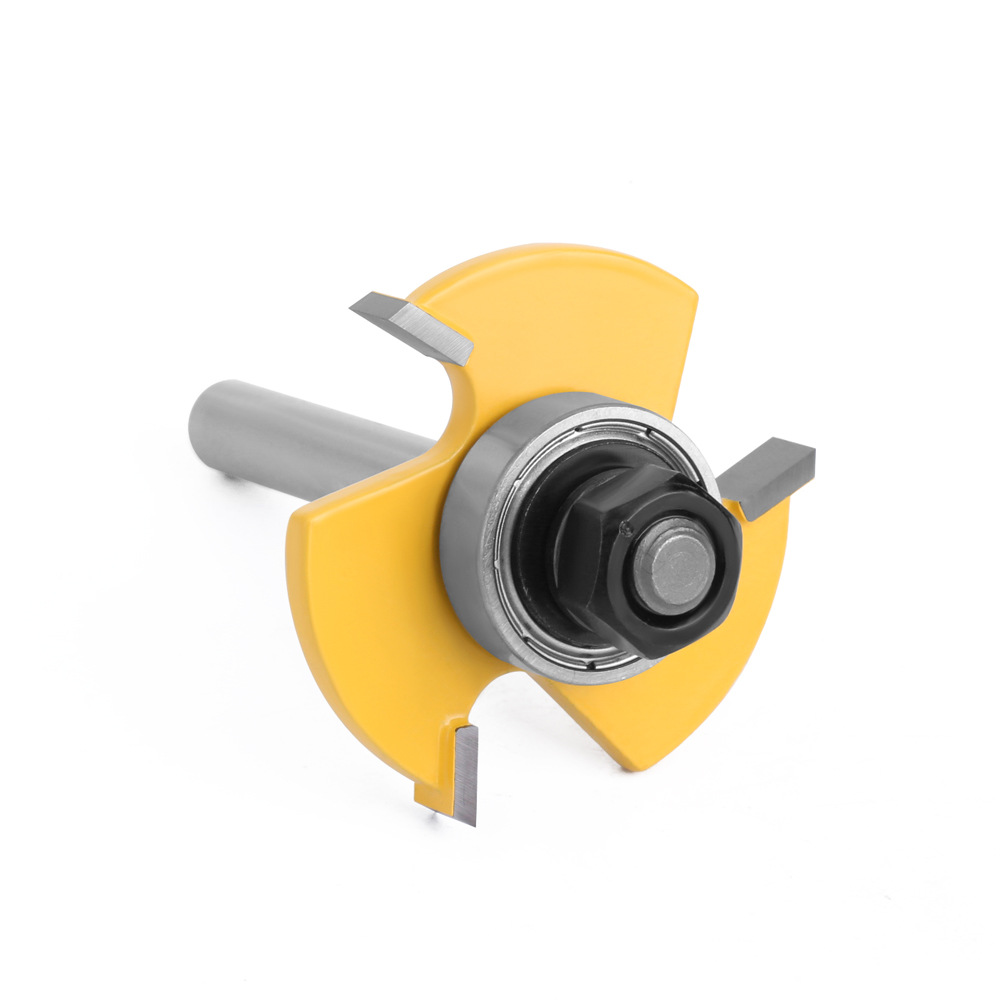

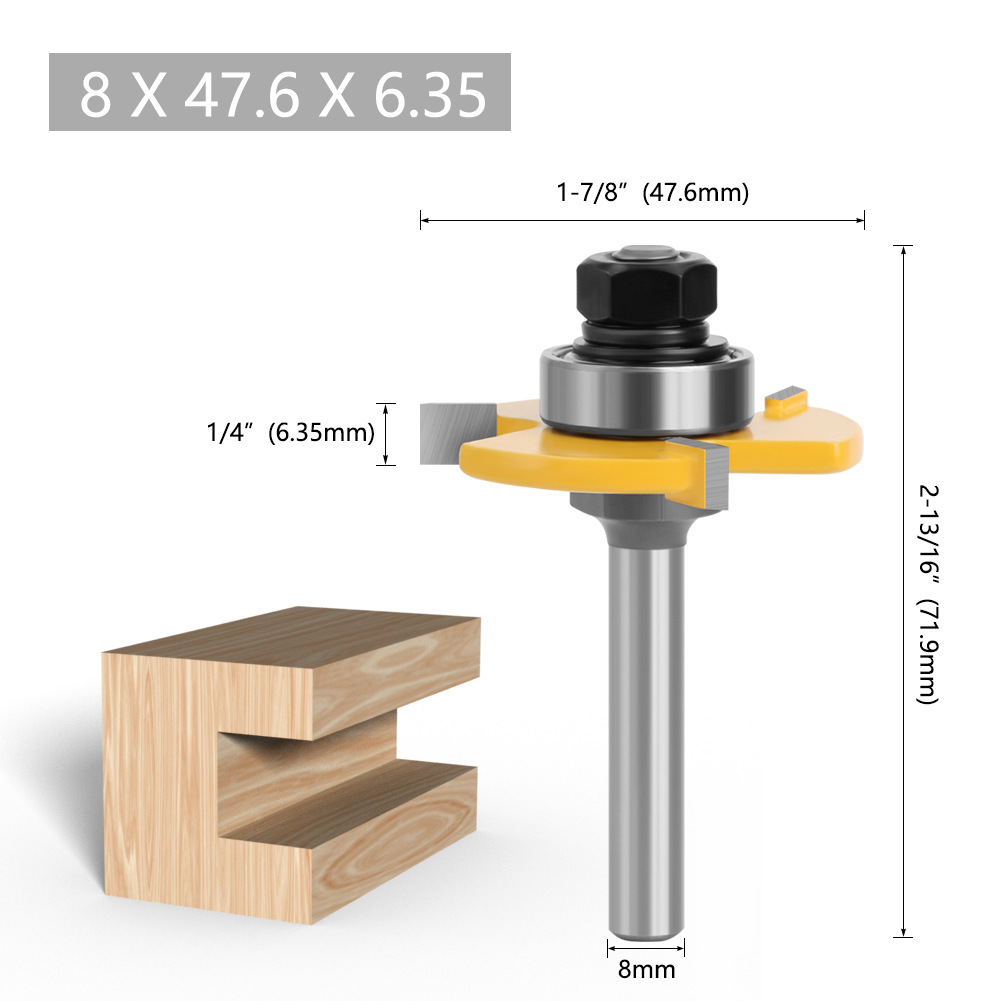

RTE327 – T-Slot Router Bit with Bearing (8mm Shank)
$4.37
The RTE327 T-Slot Router Bit with bearing cuts precise T-shaped grooves for woodworking tracks and joints. With an 8mm shank and carbide cutting edge, it’s ideal for slots, panels, and fixtures.
T-Slot Router Bit – Carbide Groove Cutter with Bearing, 8mm Shank
8mm shank T-slot / T-shaped router bit with sealed bearing and heat-resistant Teflon coating for smooth, precise slotting in wood and composites.
Specifications
- Item: 8mm Shank Router Bit
- Material: 45# steel
- Features: High-temperature & heat-resistant Teflon coating
- Tolerance: ±0.003″
- Bearing: Sealed, lubricated bearing
- Shank Diameter: 8mm
- Applicable Materials: Solid wood, ecological board, MDF, plywood, etc.
- Applicable Equipment: Electric wood milling, engraving machine, trimming machine, hanging machine, CNC
- Recommended Parameters: Feed 8–12 m/min; Spindle 18,000–24,000 RPM
Package Included
- 1 piece × router bit
Note
- The color you choose will be prioritized; if out of stock, an alternative color will be provided.
- Manual measurement may cause a 1–3 mm deviation.
- Colors may vary slightly due to display differences.
| Common Machine | Speed Range | Equipment | Details |
|---|---|---|---|
| Trimming Machine | 10,000–30,000 rpm | Electric Router | 1st 9,000 · 2nd 12,000 · 3rd 15,000 · 4th 19,000 · 5th 23,000 rpm |
| Vertical Milling Machine | 12,000–24,000 rpm | Automatic Engraving | Variable frequency up to 18,000 rpm |
| Diameter / Cutting Height (mm) | Max Speed (rpm) | Max Feed (mm/min) |
|---|---|---|
| Below 25 | 24,000 | 5,000 |
| 25.1–35 | 18,000 | 4,000 |
| 35.1–50 | 16,000 | 3,500 |
| 50.1–60 | 14,000 | 3,000 |
| 60.1–80 | 12,000 | 2,500 |
| Above 80 | 10,000 | 2,000 |
